Lumenier AXII HD V2 Patch Antenna 5.8GHz Patch Visor Antenna with Stubby Antenna for DJI FPV Goggles

Lumenier AXII HD V2 Patch Antenna 5.8GHz Patch Visor Antenna with Stubby Antenna for DJI FPV Goggles

Description:
The Lumenier AXII HD 2 5.8GHz Patch Antenna offers you the highest performance you can get from a high gain mini patch antenna designed for DJI Digital HD FPV. The Lumenier AXII HD Patch has a high 8.4dBiC gain for long range flying and excellent penetration through objects compared to standard omnidirectional FPV antennas. It also features an incredible 92% efficiency (most mini patch antennas are below 75%), which means you get amazing performance and the best picture in your video goggles.

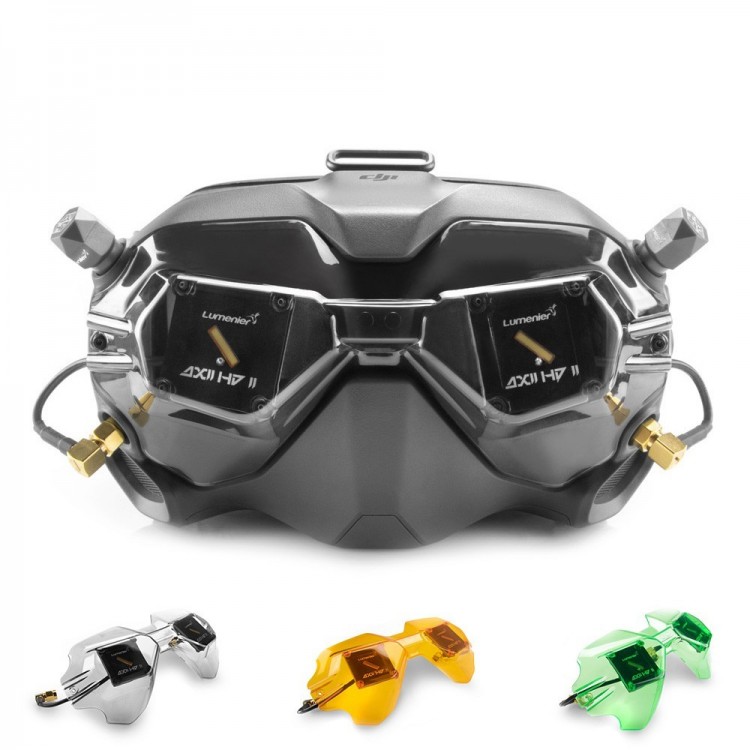

This is the Lumenier AXII HD 2 Patch Visor 5.8GHz Antennas Combo Set for DJI Digital HD FPV Goggles. A set of circular polarized, directional antennas specifically made for the DJI FPV Goggles. Designed to provide long range 5.8Ghz video reception in a compact form factor.

Building on the success of the original AXII HD antennas, the new AXII HD 2 improve on both looks and performance. Finally, a high-quality set of antennas designed as a direct replacement and upgrade for your stock DJI antennas for the DJI Digital HD FPV Goggles. The AXII HD 2 antennas were designed from the ground up to be a perfect match for the DJI goggles. The AXII HD 2 antennas feature a custom molded semi-transparent visor with embeded antennas inside. This provides a low profile, sleek looking, direct connect RP-SMA antenna solution, and all this with improved performance.

Generally, with such a high gain antenna you would have to sacrifice the effective FOV (field of view) or beam width, but with the AXII HD 2 Patch Antenna you get the best of both worlds: High gain and wide beam width! The AXII HD Patch will give you 8.4dBiC gain while still covering over 76 degrees of horizontal beam and 68 degrees vertically. This means the antenna is more forgiving and can still give you a clear picture even if you aren't pointed exactly at your aircraft or transmitter.

Improvements over V1:
- Higher gain for longer range and improved signal penetration
- Wider FOV (Field of View) for better overall coverage
- Improved efficiency for improved signal reception/transmission
- Antennas embedded into custom injection-molded faceplate for better protection
- 15 degrees of up-tilt built into the antenna mount improves signal

Features:
- Designed for DJI HD Digital FPV Goggles, form fitting
- Compact low-profile design on your goggles, easy to store and transport
- High gain directional antennas
- LHCP Circular Polarization
- Premium quality and performance
- Every antenna is QC checked for guaranteed best performance

Specifications:
1. AXII HD 2 Patch Antenna
- Model: Lumenier AXII HD V2 Patch Visor Antenna
- Frequency: 5.8GHz
- Bandwidth: 220Mhz
- Gain: 8.4dBiC
- VSWR: 1:1.1
- Radiation Efficiency: 95%
- Beam Width: 76° H. 76° V.
- Polarization: (LHCP) Left Hand Circularly Polarized
- Connector: RP-SMA (for DJI Goggles directly, not to be used on standard SMA)
- Weight: 33g

2. Micro AXII HD 2 Stubby Antenna
- Gain: 1.9dbic
- Axial ratio: 1.0 (near perfect)
- Bandwidth: 5.3GHz-6.2GHz
- Radiation Efficiency: 99%
- Cross-Polar Rejection: -15 to -30dB (1.9%)
- Beam Width: 360 degrees (omni-directional)
- SWR: ≤1.5:1
- Weight: 3.5g
- Connector: RP-SMA
- Works great as both a transmitting or receiving antenna
- Compatible with other styles of 5.8GHz LHCP antennas
- Polarization: (LHCP) Left Hand Circularly Polarized

Package Included:
- 1x Lumenier AXII HD 2 5.8GHz Patch Visor Antenna (LHCP)
- 2 x Micro AXII HD 2 Stubby Antennas

Note:
- Items in gray will be delivered by default.
