LWX25-L100 X-Axis Sliding Table Precision Manual Sliding Table with Dovetail Groove 80MM/3.1" Travel

Availability: In stock, usually dispatched in 1 business day

  • Price:$42.02
  • Price in reward points: 420 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $41.18 $40.34 $39.08 $37.40 Contact US
Quantity:

LWX25-L100 X-Axis Sliding Table Precision Manual Sliding Table with Dovetail Groove 80MM/3.1" Travel

Features:

- Dovetail Groove: Because the amount of movement is large, it can move quickly, and the working frequency can be high
- Quantitative movement: The platform can be precisely adjusted by turning it to an approximate position and can be fixed with fixing device
- Clear scale ruler makes it easy to adjust
- X-axis movement and vertical lifting: The load volume on the platform is too large to affect the accuracy of the displacement table, so please ensure that the contact surface does not exceed 1.5 times the sliding table
- Applicable industries: electronics, home appliances, automobiles, medical, smart phones, semiconductors, etc.

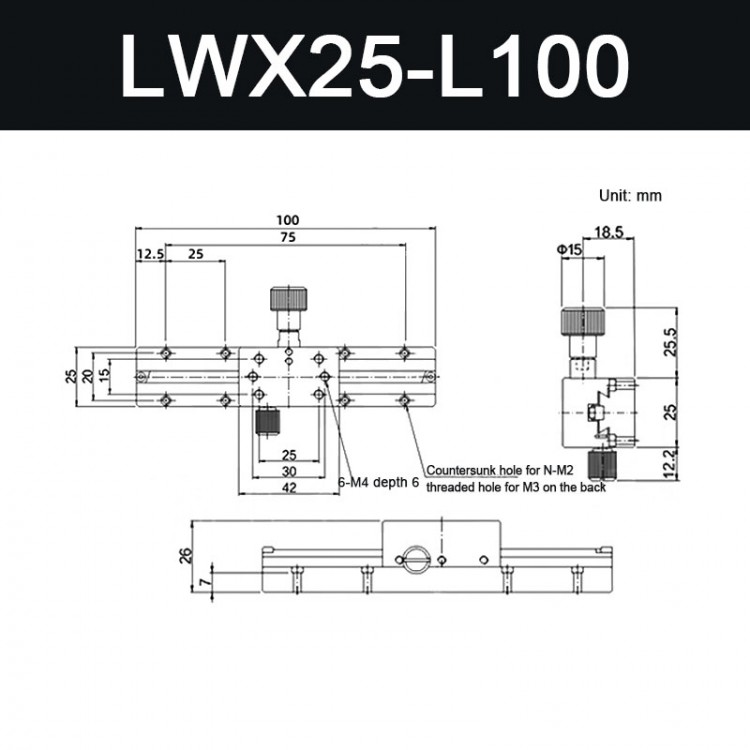

Specifications:
- Table top size: 25 x 42mm/1 x 1.7"
- Travel: 80mm/3.1"
- Parallelism: 0.05mm/0.002"
- Overall Length: 100mm/3.9"
- Load: 29.4N (3kgf)
- Weight: 0.16kg/0.4lb

Package Included:
- 1 x Sliding Table
