LX60-R 49N Travel ±0.3" X-Axis Sliding Stage Fine-Tuning Sliding Table w/ Right Handed Micrometer

Availability: In stock, usually dispatched in 1 business day

  • Price:$36.03
  • Price in reward points: 360 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $35.31 $34.59 $33.51 $32.07 Contact US
Quantity:

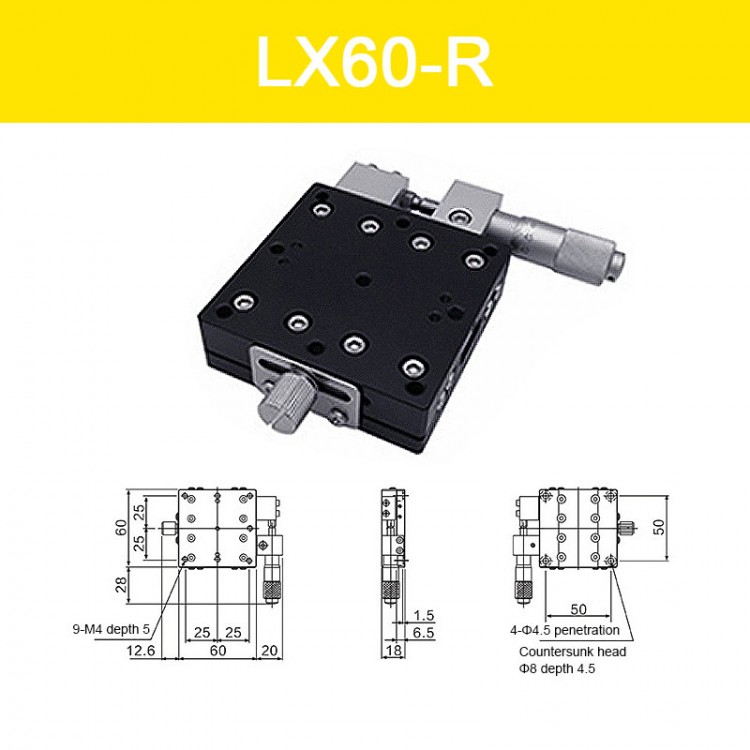

LX60-R 49N Travel ±0.3" X-Axis Sliding Stage Fine-Tuning Sliding Table w/ Right Handed Micrometer

Features:

- Micrometer: Laser engraving. Min. scale 0.01mm/0.0004"
- Threaded holes: The top with threaded hole makes it easy to install; 40-50 (M3) and 60-125 (M4)
- Countersunk holes: Bottom with countersunk holes for easy installation; 40-50 (M3) and 60-125 (M4)
- Guide rail: Crossed roller guides are used to realize high-precision and smooth movement
- Quantitative movement: Rotating the platform can achieve precise adjustment of the angle. After turning the platform to the approximate position, it is fixed with rough and fine switching screws, and then fine-tuned using side micrometer
- Application: Applied to industries including electronics, home appliances, automobiles, medical, smart phones, and semiconductors

Specifications:
- Travel: ±6.5mm/±0.3"
- Table top size: 60x60mm/2.4x2.4"
- Table top thickness: 18mm/0.7"
- Load: 49N (5kgf)
- Body material: aluminum alloy
- Minimum scale: 0.01mm/0.0004"
- Accuracy: 0.01mm/0.0004"
- Parallelism: 0.03mm/0.001"
- Weight: 0.24kg/0.5lb

Package Included:
- 1 x Sliding Table
