| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $131.72 | $129.03 | $125.00 | $119.62 | Contact US |

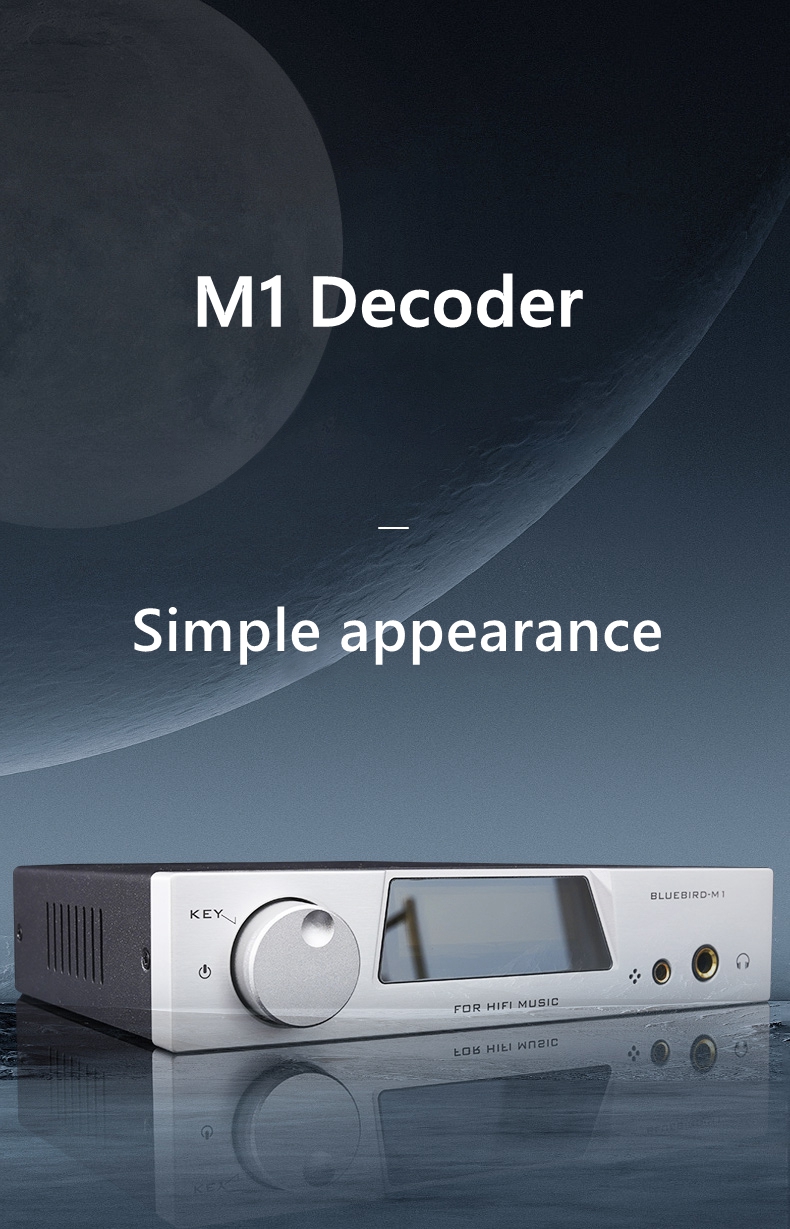

M1 Dual Core ES9038 Decoder Bluetooth 5.1 with USB Sound Card LDAC Linear Power Supply HIFI Equipment DSD512
Parameter:
- Model: M1
- Weight: Approx. 1.2kg

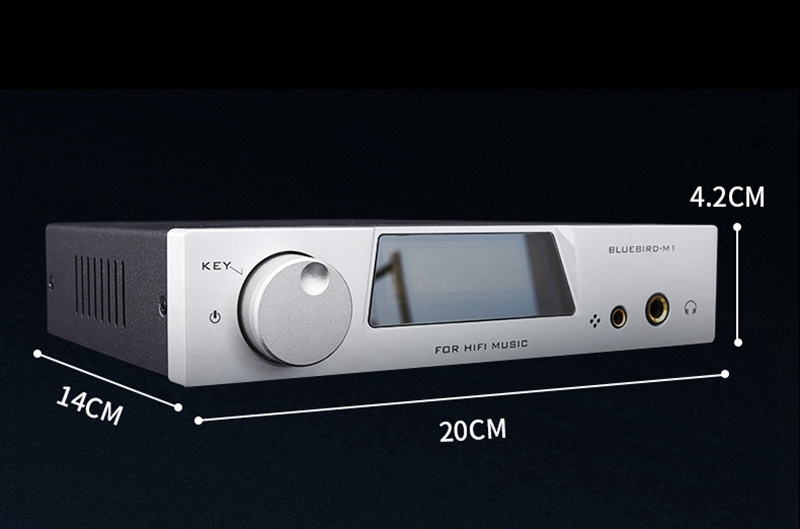

- Size: 20 x 14 x 4.2cm
- Power consumption: <12W
- Sampling rate: OTG Sound card: 16B-32B 44.1K-192K, DSD64-DSD512( automatic recognition)
- Coaxial: 16B-32B 44.1K-192K, DSD64-DSD128( automatic recognition)
- Optical fiber: 16B-32B 44.1K-192K, DSD64-DSD128( automatic recognition)
- Bluetooth protocol: SRC, AAC, for APTX, for ATPX-HD, ADAPTIVE, LDAC (24B96K)
- Decoding chip: ESS9038Q2M x 2

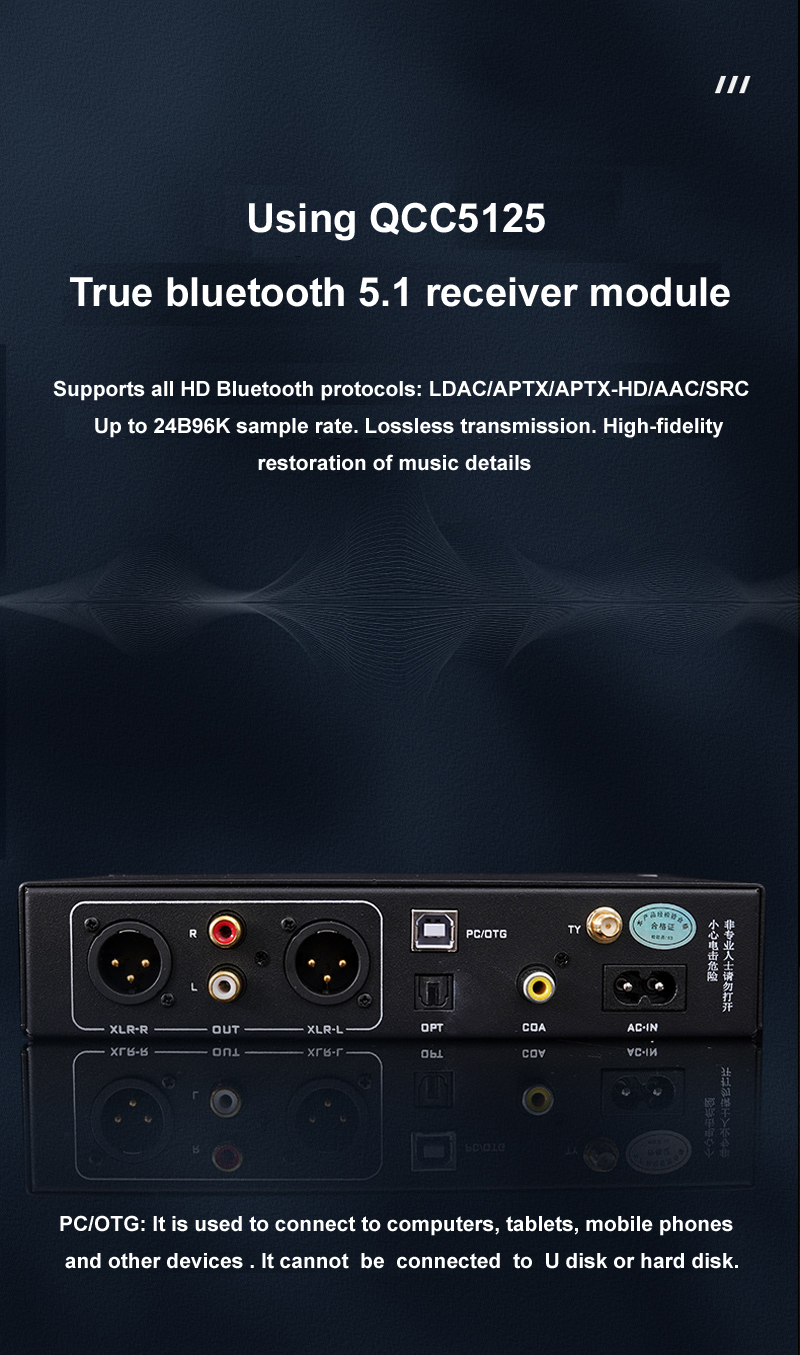

- Bluetooth chip: QCC5125

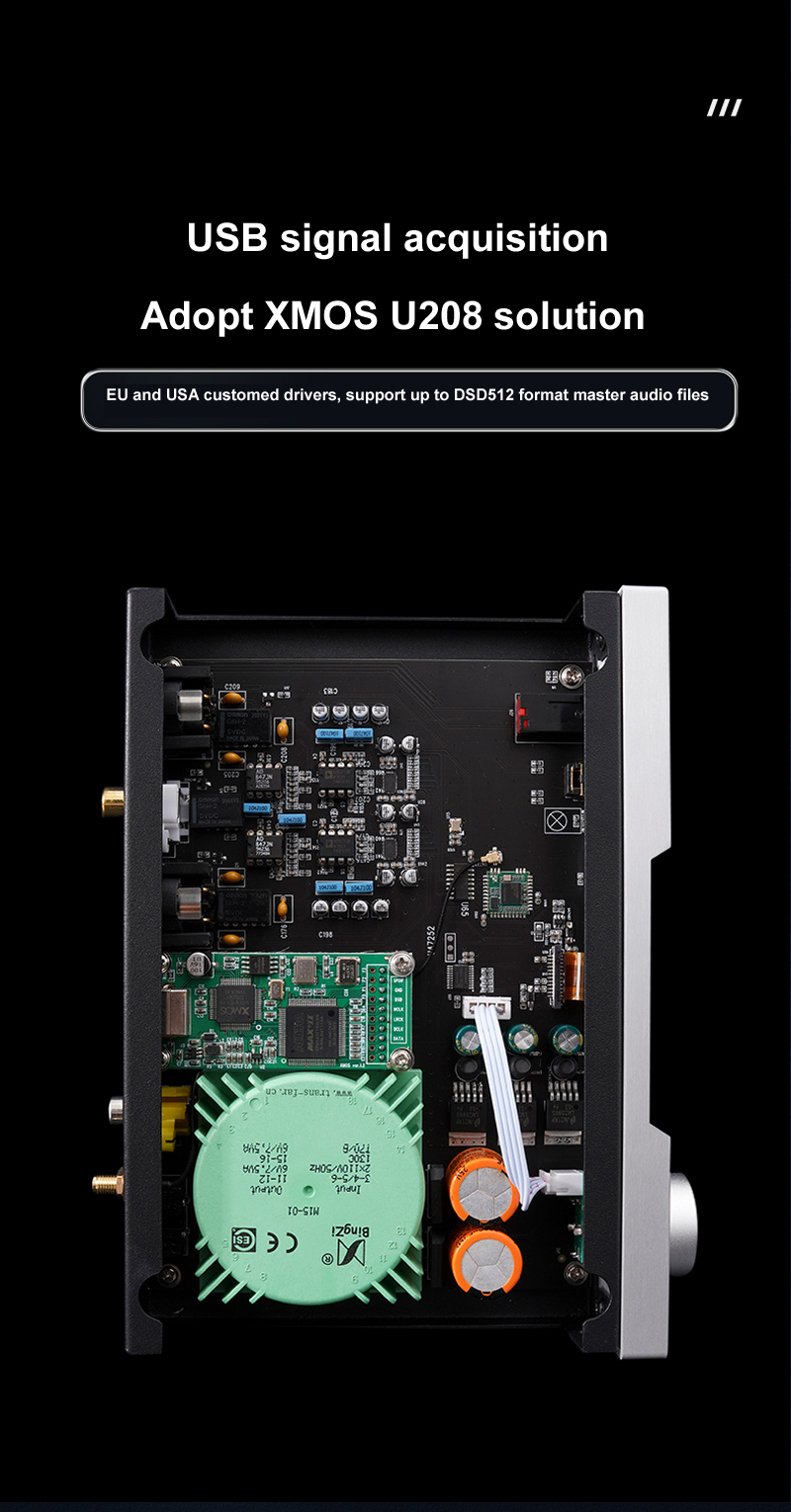

- USB Sound Card: XMOS U208 (European and American design drive)

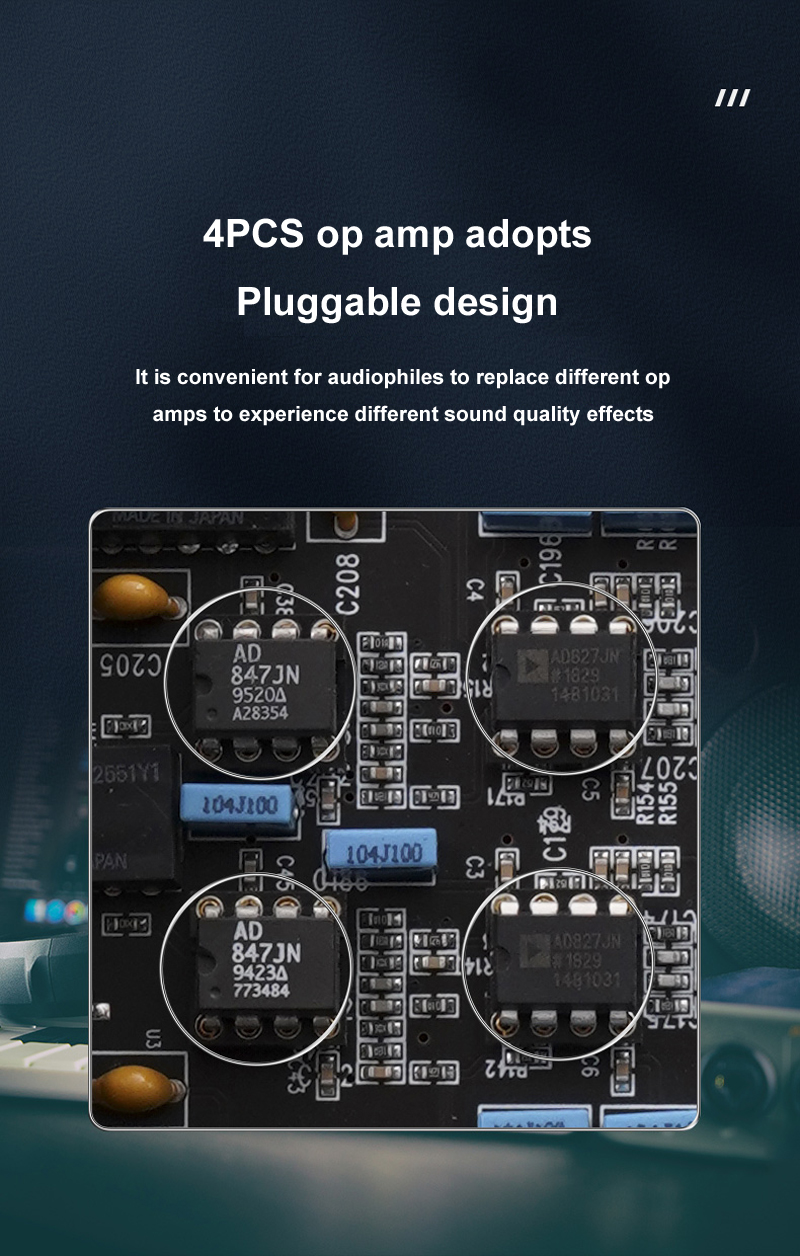

- Operational spec: AD827 x 2+AD847 x 2
- Single-ended output level: 2.6VRMS
- Balanced output level: 5.8VRMS
- Frequency response: 5-21KHZ/±0.1DB
- Signal-to-noise ratio: >123DB at 1KHZ
- Harmonic distortion: -112DB
- Dynamic range: 142DB

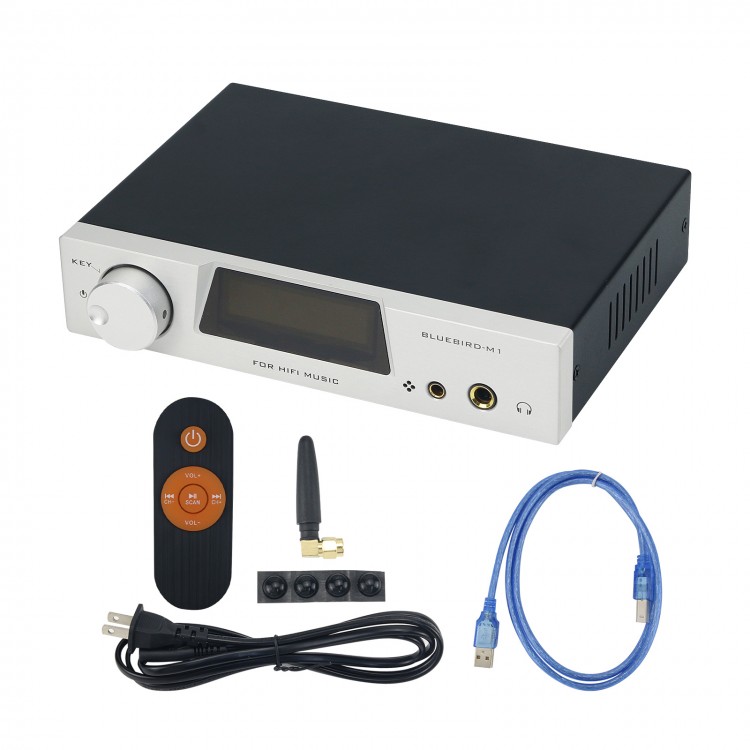

Package Included:
- 1 x Host

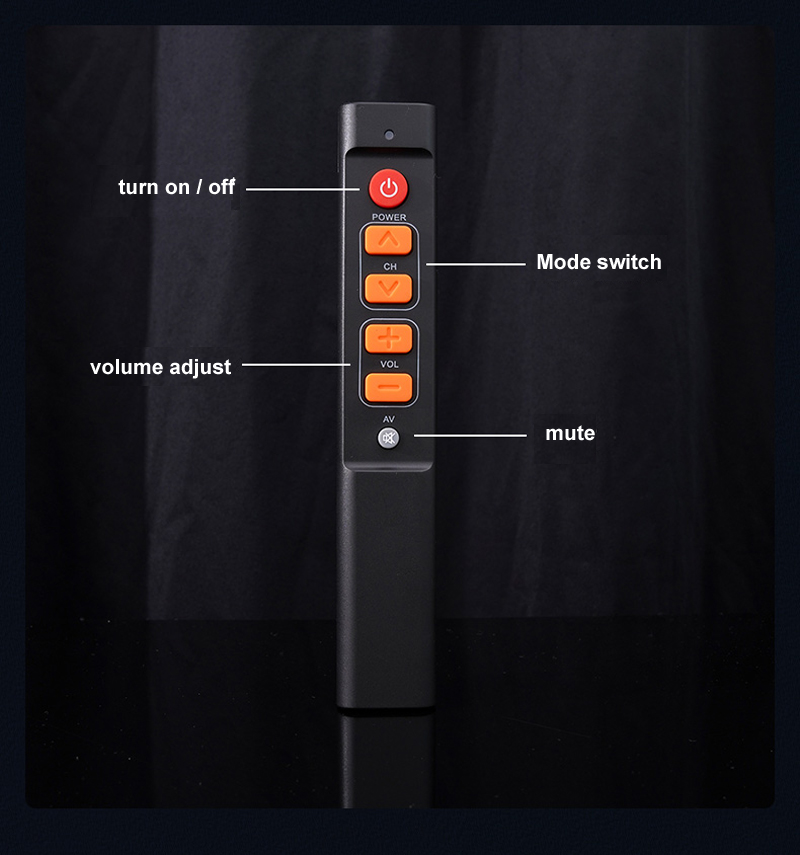

- 1 x Remote control
- 1 x Power cable
- 1 x Antenna
- 1 x USB cable
