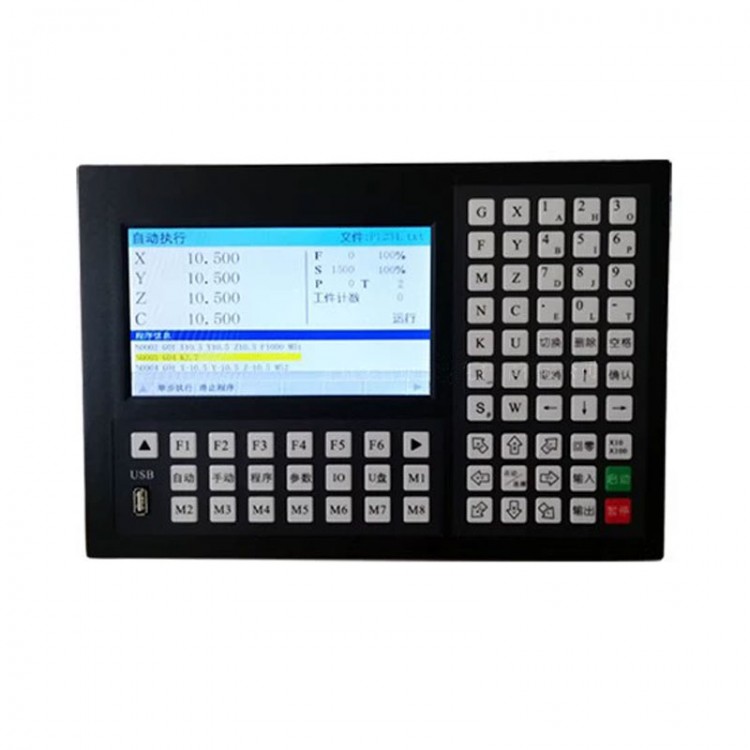

M2P-2100 2-Axis Professional CNC Motion Controller G-Code Programming with 7-inch Color LCD Support USB In

Availability: In stock, usually dispatched in 1 business day

  • Price:$202.11
  • Price in reward points: 2021 Reward Points: 20
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $198.07 $194.03 $187.96 $179.88 Contact US
Quantity:
M2P-2100 2-Axis Professional CNC Motion Controller G-Code Programming with 7-inch Color LCD Support USB In

Description:

- Micro CNC M2P-X100 (G code) motion controller, compatible with the functions of TC55B motion controller, using ARM and specialized motion control chips, external and internal power supply using optocoupler isolation, achieving high-performance and stable control capabilities, equipped with a 7-inch color LCD display, resolution of 800 x 480, 4 feed axes, 1 analog axis, with a standard hand pulse MPG interface, bringing tangible solutions for automation applications, mechanical equipment and scientific experiments. Flexible motion control, concise functional architecture, convenient to use.

Features:
- 7-inch color LCD screen, resolution 800 x 480, display area 85.9 x 154.1 (mm).
- Real time display of input and output status on manual interface.
- Supports powering on to mechanical zero alignment, supports manual mechanical zero alignment, and supports program instructions to mechanical zero alignment.
- Support USB flash drives as media for importing startup images and program files.
- 28 inputs (including 4 input ports with factory default functions) and 18 outputs.
- X, Y, Z, C-axis (two or more axes) linkage.
- Maximum pulse frequency 400K.
- Supports Chinese and English selection.
- Support power-off memory function, coordinate display and workpiece count will not reset to zero after power-off.
- Limit protection, supporting both hard and soft limits.
- With 1 standard MPG interface.
- Equipped with 1 channel 0-10V spindle speed control analog output interface.
- Support external input port control output port status.
- The maximum number of program lines is 9999, and the maximum number of program files is 40.
- Supports linear interpolation and circular interpolation.

Specification:
- Model: M2P-2100
- Operation language: CN/EN
- Pulse frequency: 400KHz
- IO Numbers: 28 inputs, 18 outputs
- Power-off memory: support
- Control axis: dual axis
- Program numbers: 40
- Product size: L x W x H = 298 x 203 x 36.3mm
- Embedding port size: L x W x H = 270 x 175 x 33mm
- Application: welding, drilling, dispensing, spraying, feeding, cutting, grinding machines, instrument lathes and automation applications, scientific experiments and other fields.

Package Included:
- 1 x CNC Motion Controller
