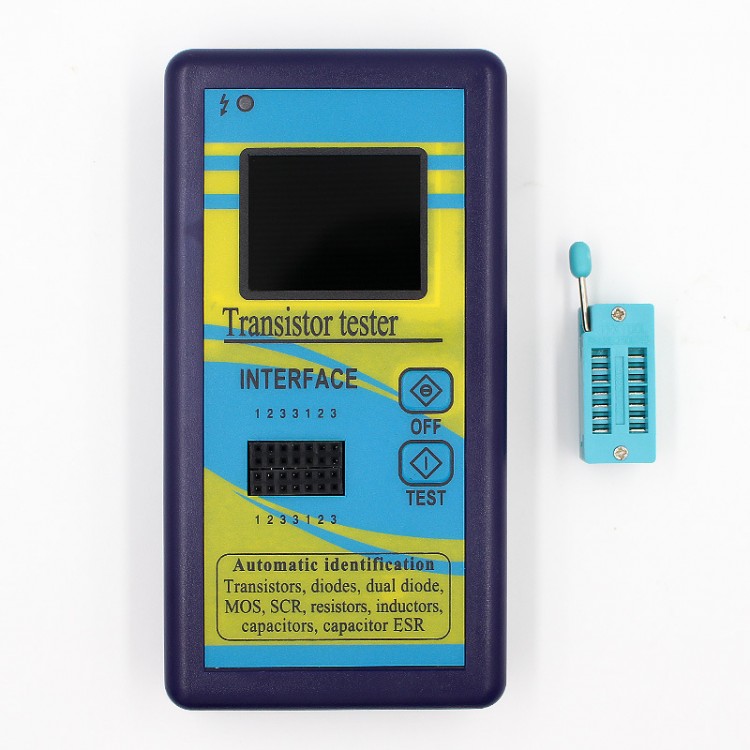

M328 Transistor Tester Meter Diode Resistor Inductor Capacitor ESR Meter With 1.8" TFT Color Display
Description:
Multi-functional transistor tester for automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors or other devices. Easy and convenient to operate.
Features:

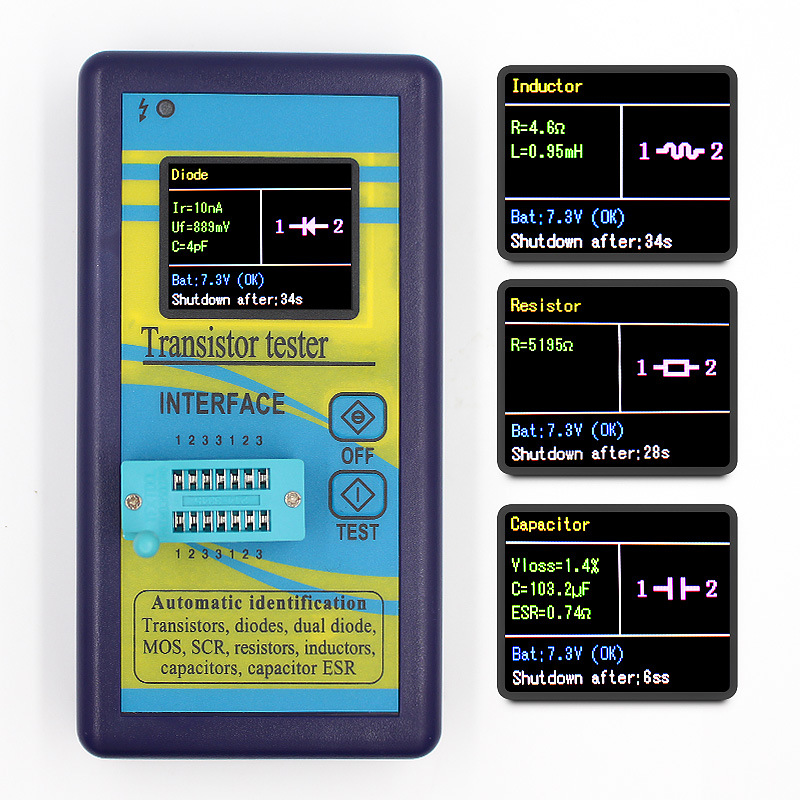

- 128*160 TFT color display for easy readings, can display measured data and graphics
- All components are protected by a plastic case, convenient to carry
- Automatically detect NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors or other devices
- Automatically test the pins of a component and display on the LCD
- Measure the gate threshold voltage and gate capacitance of the MOSFET
- Measure bipolar transistor current amplification factor and base-emitter threshold voltage
- Two-button operation, automatic shutdown to avoid unnecessary waste
- Short detection time: only 2 seconds. It is normal to cost 1 minute for bulk capacitor detection
Simple Operation Instructions:
1, 2, 3 pins can be connected at will, automatic identification of type, automatic detection of pin sequence, graphic display, automatic measurement of parameters. For example, if you connect a transistor to it, you don't need to consider the BCE order of 123, just plug it in. Then press TEST button. It automatically recognizes whether this is a triode, a field effect tube, a thyristor, or a resistance capacitor. After identifying as a triode, test whether it is NPN or PNP, and then determine the BCE order. Show it graphically, and then tell you the magnification, turn-on voltage, and so on. Basically you just need to plug it in and press the button. The rest will tell you what it is.
Specifications:
- Display: 1.8" TFT Color Display
- Material: PCB + Plastic
- Shutdown Current: 20nA
- Resistor Test Range: 0.5Ω-50MΩ
- Inductor Test Range: 0.01mH-20H
- Capacitor Test Range: 25pF-100000uF

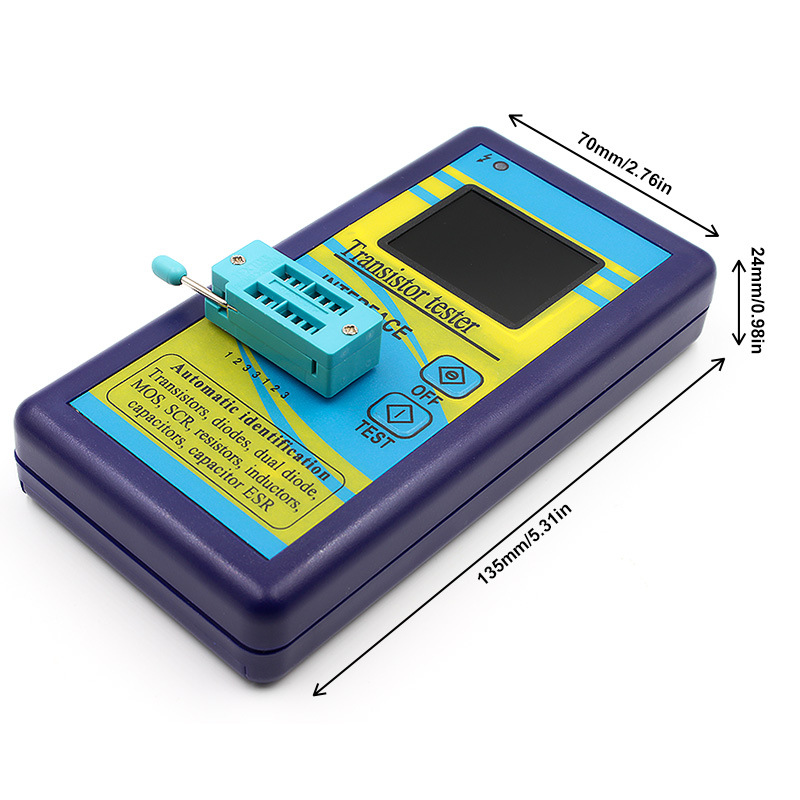

- Item Size: 135*70*24mm / 5.31*2.76*0.98" (LxWxThickness)
Package Included:
- 1 x Set of Transistor Tester
Note:
- Please make sure that capacitors are discharged before testing.
- It is powered by DC9V 6F22 battery which is not included.
