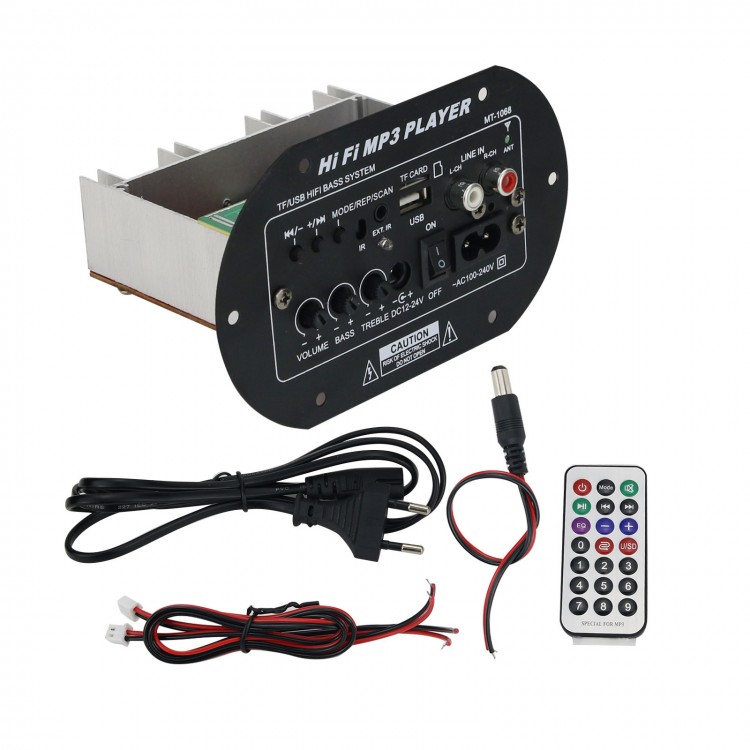

• M6T Bass Power Amplifier Board HIFI 12V Main Board 220V Car Subwoofer for DIY

M6T Bass Power Amplifier Board HIFI 12V Main Board 220V Car Subwoofer for DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$14.35
  • Price in reward points: 144 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $14.06 $13.78 $13.35 $12.77 Contact US
Quantity:

M6T Bass Power Amplifier Board HIFI 12V Main Board 220V Car Subwoofer for DIY

Features:

- Breakpoint memory play function;
- Can read TF card and U disk MP3 songs;
- Can independently adjust the tenor, bass and main volume;
- DC 12V, 24V and AC 110-220V three kinds of voltage can be used;
- With AUX input, access to computers, mobile phones, DVD or CD and other audio;
- Traditional high fidelity power amplifier, rated power 30W, can run 4Ohm 80 magnetic speaker
- For 5inch/6inch/8inch amp

Specification:
- Net weight: about 290 grams
- Install opening: width 100* hight 35mm
- Overall size: width138*  hight 85* depth 90mm
- Installation hole distance: hight 70* width 70mm, edge - edge 124mm

Connection description:
Speaker connection:
- White socket on amplifier board can connectto a 4Ohm 80 magnetic speaker or audio(5-8 inch 70-80 magnetic is ok);

Power supply connection:
- Panel DC12V/DC24V interface can access the DC 12V or DC 24V, the current requirements of 3A or more;
- .AC100-240V  interface can access AC100V-240V household AC power (can not touch the circuit board after power, so as to avoid electric shock).

Note: DC 12V, DC 24V and AC100V-240V household alternating current can be arbitrarily connected to the line, can not be accessed at the same time.

Package included:
- 1 x Amplifier Board
