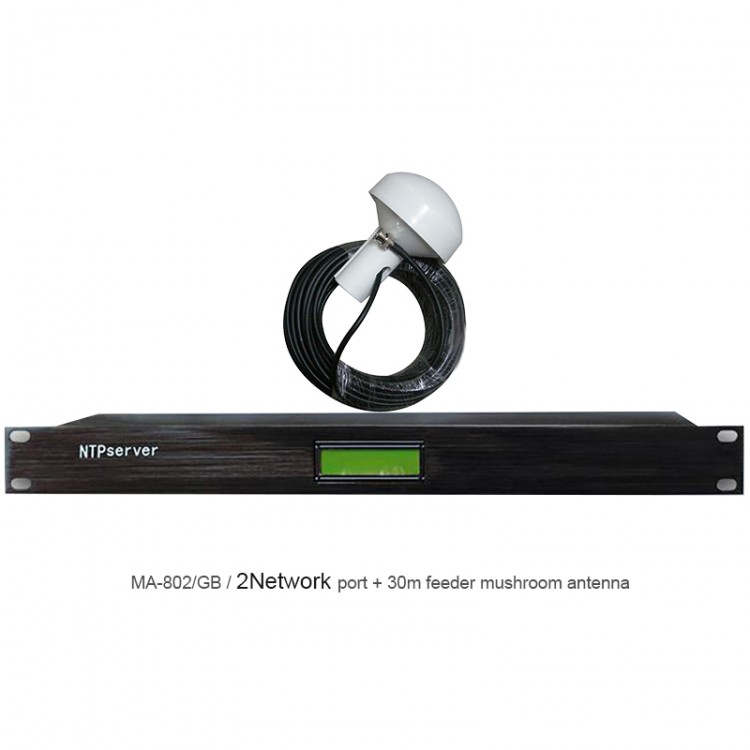

MA-802/GB NTP Server Network Time Server w/ 2 Ethernet Ports 30M/98.4FT Antenna Cable For GPS Beidou

MA-802/GB NTP Server Network Time Server w/ 2 Ethernet Ports 30M/98.4FT Antenna Cable For GPS Beidou

Model Comparison:
- MA-801/G: For GPS time service
- MA-801/GB: For GPS and Beidou time service
- MA-801/C: For CDMA network time service
- MA-802/G: For GPS time service
- MA-802/GB: For GPS and Beidou time service
- MA-802/C: For CDMA network time service
- MA-812/GB: For GPS and Beidou time service

Attention: MA-801 series are desktop devices. MA-802 and MA-812 series are standard 1U rack devices.

MA-802/GB Advantages:
- This series with 1-8 optional Ethernet ports
- Standard rack type NTP server
- 100M Ethernet port
- Easy installation
- Stable and reliable performance
- 7*24 hours maintenance free
- Simple debugging and easy to use
- Self-service time for power failure. Built-in 3V button lithium battery, service life> 5 years (depending on models, configuration will be changed)
- When satellite loses contact, it can still be synchronized. NTP server has its own master clock function, and client-side can be timed after the satellite loses lock
- Can process 10,000+ client requests per second

Features:
- Support cross network segment. Access timing across network segments through 3-layer switches or routers.
- Internal precision reaches NS level. Built-in high-precision constant temperature crystal oscillator to ensure punctual accuracy.
- High-precision network timing. The network timing accuracy can reach 1-50 milliseconds under different network environments.
- It can provide timing services for tens of thousands of clients. Realize 10,000 time service requests per second.
- Network port is independent CPU. A single network port can process timing requests up to 8000-10000 times per second. MA-802/GB can support 1-8 network ports (optional ports), which is suitable for multiple network segment isolation environments. The main network port can be set to secondary NTP mode (incarnate as an NTP client).

Product Parameters:
- Time source: For GPS satellite, Beidou satellite
- Network protocol: NTP v1.v2.v3.v4 (RFC1119 & 1305), SNTP(RFC2030), (RFC1321), DHCP(RFC2131), HTTP, IPV4
- Precision: Synchronization precision 1us
- Client accuracy: User terminal synchronization timing accuracy: 1-50ms (typical value of LAN)
- NTP request volume: 8000-10000 times per second for a single network port, expandable 1-8 network ports
- Number of clients: Tens of thousands of clients can be supported
- Signal receiving parameters:
* 72-channel timing GPS Beidou hybrid receiver
* Support single satellite time service window mode
* GPS receiving L1, C/A code signal-1575.42MHz
* Beidou 1, mode can choose pure GPS, pure Beidou or mixed modes.
* Tracking and locking sensitivity can reach -167dBm
- Power-off time: All series support RTC backup clock (even if the power is off, the time will not be lost)
- WEB management: The whole system supports WEB page device management, you can access it by entering the device IP, and you can view the real-time status of the device without installing any software
- Alarms:
* It sounds an alarm when NTP server does not lock satellite for a long time
* NTP server IP address conflict alarm
- Security: RTOS real-time operating system is adopted, and there is no risk of virus damage, data tampering or loss. Fanless and maintenance-free design guarantees long-term stable operation of the system 7*24 hours.
- Other parameters: The client can also be timed when the satellite is not locked

Package Included:
- 1 x Set of NTP Server

Note:
- The product size does not include the sizes of protruding part of interfaces. If there is a difference between the pictures and the actual product due to product upgrades or other reasons, please refer to the actual situation. Thank you for your understanding!
- Other items pictured are not included, for demonstration purposes only.

Equipment Management:
- WEB management page: login password authentication, you can view the real-time status of NTP server, modify network parameters, time zone, etc.
- Client software: In addition to WEB management, we are also equipped with professional client software.

Support Producers:
- For HIKVISION, Uniview, Infinova, Dahua Technology, KEDACOM, Tiandy, Samsung, Microsoft, Linux.
- In addition to the above, it supports all terminals that include NTP.

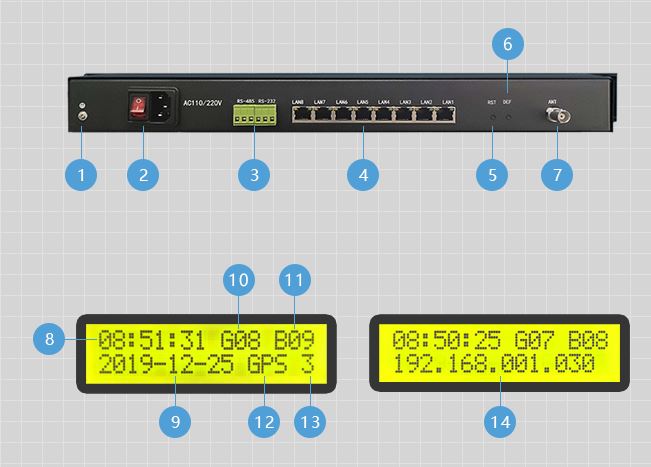

(1) Ground
(2) AC110/220V power supply
(3) RS232/485 serial port
(4) Fast Ethernet port (can handle 8000-10000 timing requests per second); 1-8 optional Ethernet port
(5) RST (device restart)
(6) DEF (long press for 10 seconds to restore factory settings)
(7) GPS, Beidou hybrid antenna interface
(8) Current UTC time
(9) Number of GPS satellites caught
(10) Number of Beidou satellites caught
(11) Current date
(12) Current time source
(13) NTP server status (NA/1/3)
(14) LAN1 network port IP address, other network ports can be viewed through the main network port web management page
