Makerbase MKS DLP 3D Printer Control Board LCD Photocuring Motherboard w/ TFT35 Display 2K Sharp Screen

Specification:

Item: MKS DLP
Micro-processor: STM32F407
Input voltage: 112*24V
Memory processor: ALTERA EPN1270T
Mainboard size: 119mm*85mm
Hole size: 112mm*78mm
Firmware type: MKS DLP
Upgrade method : U disk
Printing format: mdlp
Recommended slicing software: MKS DLP
Operation screen: MKS Robin TFT35 touch screen
Imaging screen: LS055R1SX04, resolution (1440*2560)

Features:
-Compared with FDM, LCD photocuring technology is favored by the market because of its accuracy improvement, but its market coverage is far less than FDM technology due to various factors, such as higher cost , less solutions , and material restriction. Thus, our MKS team independently developed MKS DLP motherboard and related slicing software to promote the development of LCD photocuring for 3D printing solution by less cost.

-Most of the traditional LCD photocuring mainboards are made of "Raspberry Pi PCB +HDMI to MIPI adapter + z-axis adapter + serial screen". It is made of several-layer boards and complicated wires that results in high cost finally. While MKS DLP adopts an integrated PCB, integrates main controlled chip and memory processor, and works with 3.5-inch TFT touch screen. It is equivalent to the "four-in-one" of the traditional scheme to greatly reduce the cost. Currently, DLP has supported Sharp 5.5-inch 2k HD imaging screen, and USB flash drive for offline printing.

-Schematic, firmware and slicing software (MKS DHOST are open resource. They can be downloaded from Makerbase official github: https://github.com/makerbase-mks.

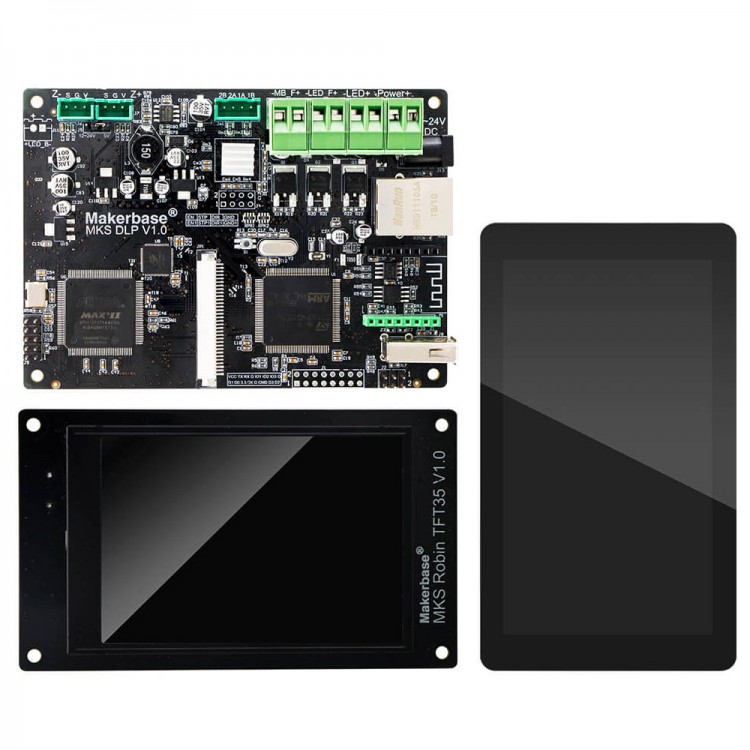

Package List:
-1 x MKS DLP Mainboard
-1 x MKS Robin TFT35 Display
-1 x 33cm FFC Cable
-1 X 5.5-inch Sharp Imaging Screen
