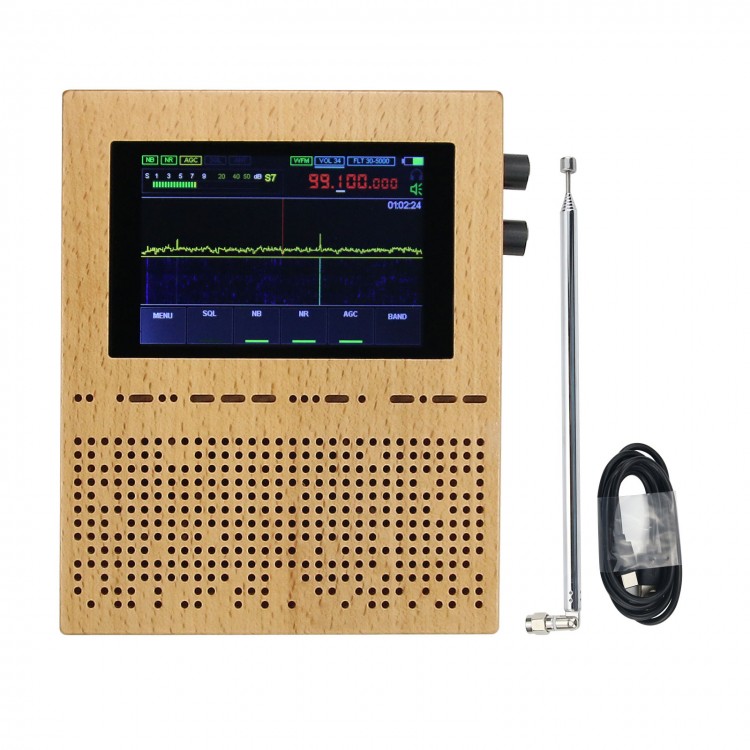

Malahit-SDR Malachite SDR Receiver Software Defined Radio Without Registration Code 50KHz to 200MHz

Malahit-SDR Malachite SDR Receiver Software Defined Radio Without Registration Code 50KHz to 200MHz

Optional Versions:
* Without registration code: 50KHz to 200MHz.
* With registration code: 50KHz-2000MHz, but the frequency range of 250M-400Mhz is shielded.

Product Parameter Introduction:
1) The radio is constructed based on the SDR principle-function determined by loaded software;
2) Frequency range: 50KHz to 200 MHz or 50KHz-2000MHz
3) All types of analog modulation: AM, SSB, NFM, WFM;
4) Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, Noise Blanker, AGC, equalizer;
5) Use the cheap but fully functional chip msi001;
6) Powerful stm32h743 with a clock frequency of 480 MHz is applied;
7) 3.5-inch IPS display with touch screen;
8) There is a built-in UHF;
9) Controls-2 encoders with buttons and touch screen;
10) Powered by internal battery 2000mAH
11) Consumption-300mA when listening to headphones;
12) Reception on the built-in telescope or external antenna in order to improve the HF reception on the telescope antenna, an additional board with a source follower has been developed. The board will be built into the standard receiver design.
13) Connect to a computer via USB, you can transmit CAT, IQ and audio.
14) 160 kHz span, with scalability;
15) Sensitivity-Under the condition of up to 250MHz, s / w is 0.3μV = 10dB; the limit receiving sensitivity is almost close to -140dbm
16) DSP filter adjustment range: 0-10KHz (adjusted to 50Hz-3KHz voice clarity and anti-interference ability are preferred)
17) Due to the characteristics of the msi001 chip used, the dynamic blocking range is about 85dB.
18) With backlight control;
19) SMA female antenna socket.

Package Included:
- 1 x Set of SDR Receiver Radio

Note:
- Users can contact official website to upgrade from 50kHz to 250 MHz and 400MHz to 2GHz.
