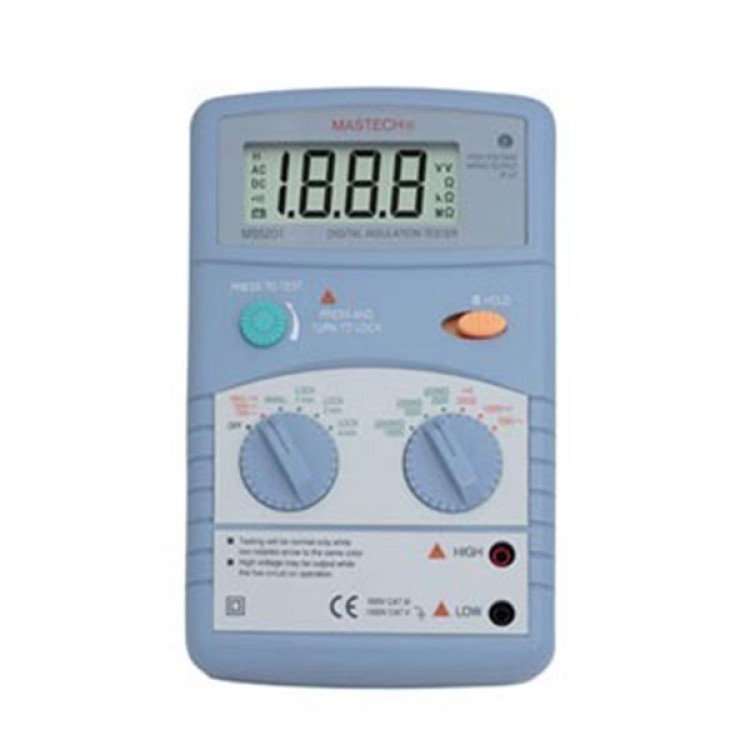

MASTECH MS5201 Digital Megger Insulation Resistance Tester Sound and Light Alarm
| Main Features | Designed to international safety standard IEC1010-1 CAT III 600V, CAT II 1000V | |
| Data hold | ||
| Sound and flash alarming | ||
| Battery powered | ||
| Display: 1999 counts, digit is 22mm high | ||
| Insultation resistance: | ||
| 200MΩ/250V±3.0%, 200MΩ/500V±3.0%, 0 ~ 1000MΩ/1000V±3.0%, 1000 ~ 2000MΩ/1000V±5.0% | ||
| DC voltage: 1000V±0.8% | ||
| AC voltage: 700V±1.5% | ||
| Resistance: 200Ω±1.2% | ||
| Continuity test | ||
| Power: 1.5V (AA) x 6 | ||
| Size: 190mm x 82mm x 36mm | ||
| Specifications | Insulation | 200MΩ/250V, ±3.0%+5d |
| 200MΩ/500V, ±3.0%+5d | ||
| 1000MΩ/1000V, ±3.0%+5d | ||
| 2000MΩ/1000V, ±5.0%+5d | ||
| DCV | 1000V,±0.8% | |
| ACV | 700V,±1.2% | |
| OHM | 200Ω,±1.0% | |
| Audible Continuity | <50Ω | |
| Package Including | 1 x MS5201 Insulation Tester | |
| 1 x Carrying Bag | ||
| 1 x Small Tool | ||
| 1 x User Manual | ||
| one set of test leads | ||
