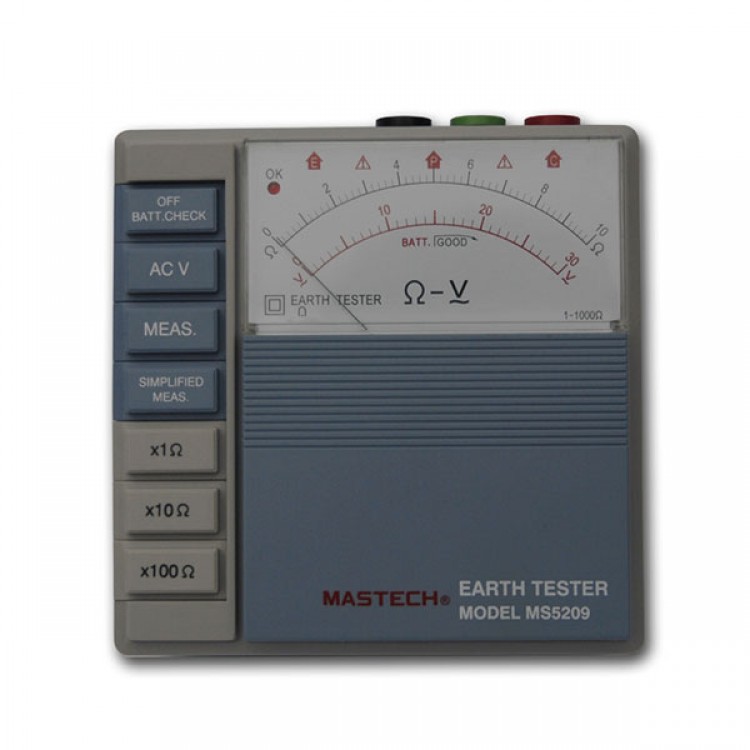

MASTECH MS5209 Pointer Ground Resistance Tester Analog Earth Resistance Tester Meter 10ohm to 1000ohms Low Power
Features:
- Low power consumption
- Earth resistance value can be read directly from the scale
- The latest circuit design permits the instrument to operate with the minimum of influence from earth voltage - and dearth resistance of auxiliary earth bars
- Simplified measurement can be easily made by pressing the "Simplified Meas." Switch button only
- Push switch buttons permit smooth operation of the instrument
Specifications:
- Measuring ranges: Earth resistance 10/100/1000ohms; Earth voltage 30V AC (5K ohms/V approx.)
- Accuracy: Earth resistance Within ±5% of full scale; Earth voltage Within ±5% of full scale
- Measurement system: Earth resistance/By constant current inverter/800Hz approx,2mA/Earth voltage /By rectifier type/5K ohms/V approx, 40 to 500Hz
- Protection levels: EN 61010-1; CAT II
- Protection class: class III
- Withstand voltage: 1500V AC for one minute between electrical circuit and housing case
- Power supply: 8*1.5V AA battery or equivalent (not included)
- Dimensions: 140*140*90mm
Package includes:
- 1 * MS5209 Earth Resistance Tester
- 1 * Set test leads
- 1 * User manual
