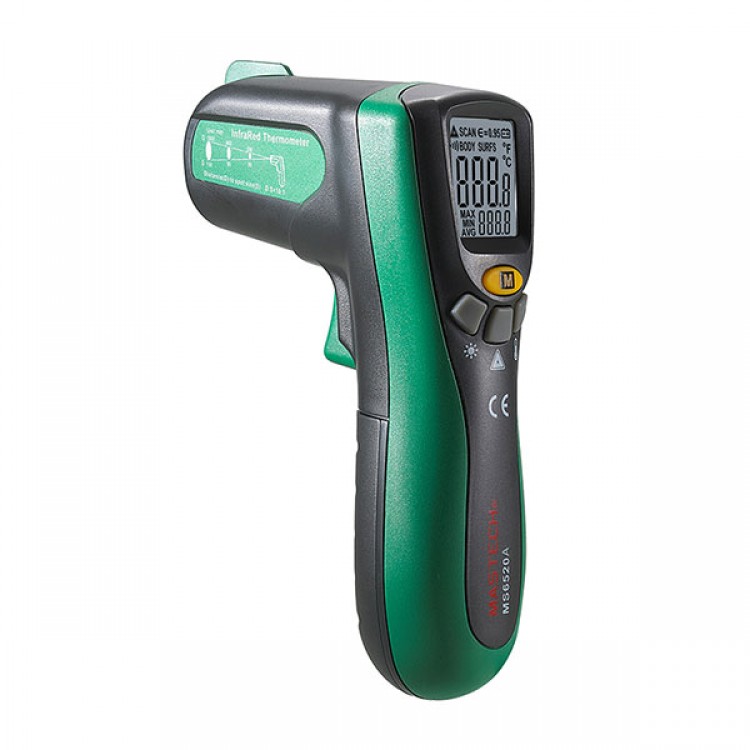

MASTECH MS6520A 10:1 Digital Non-contact Infrared IR Thermometer Temperature Meter Tester Switch
Brief Description
This Digital Infrared Thermometer is manufactured by MASTECH which is one of the largest and most well-known manufacturers of high quality electronic measuring instruments. It is handy and easy to use. It is a very useful item for measuring temperature of surface of hot, hazardous or hard to reach objects without having to touch them. You just aim your target with laser pointer, press the button, and get the reading in less than a second.
This thermometer has wide measuring range from -20 to 300 °C (-4 ~ 572 °F). It is also featured with backlight LCD, Distance to Spot Ratio (10:1), 0.95 emissivity, switchable between °C & °F, high accuracy, short responding time (1 second) & spectral response from 8 to 14 µm.
Infrared Technology
Infrared Thermometer measures the surface temperature of an object. The unit's optics sense emitted, reflected and transmitted energy which is collect and focused onto a detector. The unit's electronics translate the information into a temperature reading which is displayed on the LCD. For increased ease and accuracy, the laser pointer makes aiming even more precise.
Applications
Heat ventilation air-conditioning and refrigeration
Automotive industry
Electrical & power voltage/current inspection field
Water treatment and water quality inspection
Environmental monitoring
Marine and weather
Gas industry
Food processing industry
Features
Wide temperature range of -20 ~ 300 °C (-4 ~ 572 °F)
D:S = 10:1, maximum distance from the target object
Highly accurate and reliable
Short response time < 1s
Maximum, Minimum & Average values
Fixed 0.95 emissivity covers 90% of surface applications
°C & °F switchable
Large clear LCD with backlight
Auto power off
Data hold function
Laser Pointer on/off feature
Specifications
Temperature Range: -20 ~ 300 °C (-4 ~ 572 °F)
Resolution: 0.1 °C or 0.2 °F
Accuracy:
-20 °C (-4°F) ~ 0 °C (32 °F): ±3 °C (±5 °F)
0 °C (32 °F) ~ 300 °C (572 °F): ±1.5% reading + 2°C
Repeatability: ±1 °C
Response Time: < 1s
Spectral Response (Wavelength): 8 ~ 14 µm
Distance to Spot Ratio (D:S): 10:1
Fixed emissivity: 0.95
Selectable between °C & °F
Data Hold: Approx. 10s
Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)
Relative Humidity: 10 ~ 90% R.H.
Storage Temperature: -20 ~ 50 °C (-4 to 122 °F)
Power: 1 x 6F22 9V Battery (Included)
Battery Life: 4 hours
Item Dimension: approx. 142 (L) x 92 (W) x 47 (D) mm (5.59 x 3.62 x 1.85 inch)
Item Weight: approx. 135 g (4.76 oz)
One Set Included
1 x Infrared Thermometer
Standard Factory Package
