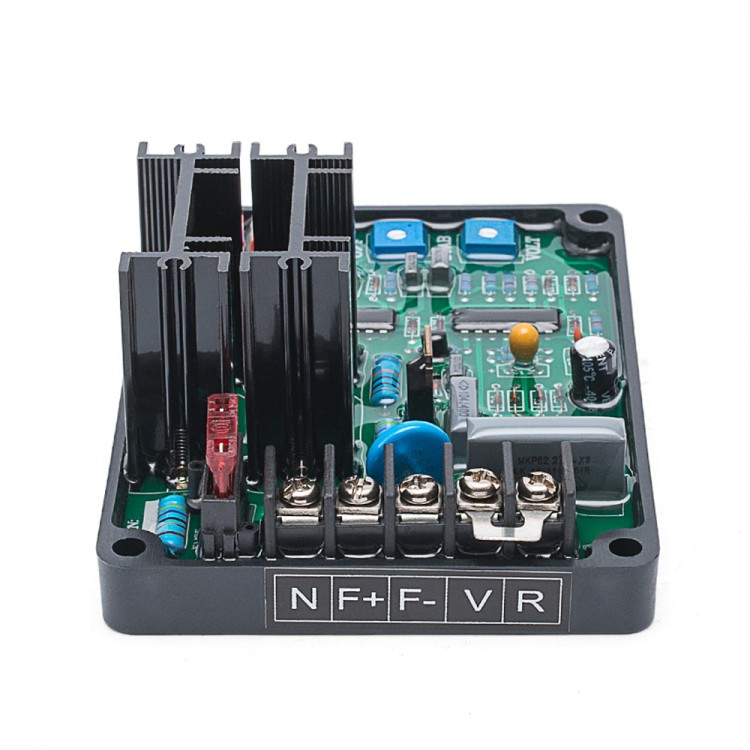

Maxgeek GAVR-12A AVR Generator Automatic Voltage Regulator 0-220V 12A for Brushless Diesel Alternator
Specification:
Sensing input voltage: 110/220/400VAC, 1 phase 2 wire
Power Input voltage: 100-260VAC, 1 phase 2 wire
Output voltage: Max. 90V DC at 240V AC input
Current: continuous 3A, intermittent 5A for 10secs
Resistance: Min 15 ohm, Max 100ohm
Voltage: build-up residual voltage at AVR terminal >5V AC
Voltage regulation: <±1% with 4% engine governing
Operating temperature: -40℃ to +60℃
Storage temperature: -65℃ to +85℃
External volts adjustment: ±7% with 1k ohm 1 watt trimmer
EMI suppression: internal electromagnetic interference filtering
Unit power dissipation: Max. 8W
Under frequency protection: 60Hz system presets knee point at 55Hz; 50Hz system presets knee point at 45Hz
Size: 107mm*82mm*50mm(L*W*H)
Features:
-Voltage Regulation < ±1%
-220/440V AC programmable input
-Rugged compact design
-Soft start voltage damping
-With under frequency roll off protection
-EMI suppression
-Built-in high capacity 10A fuse
Package List:
1 x Generator Voltage Regulator
