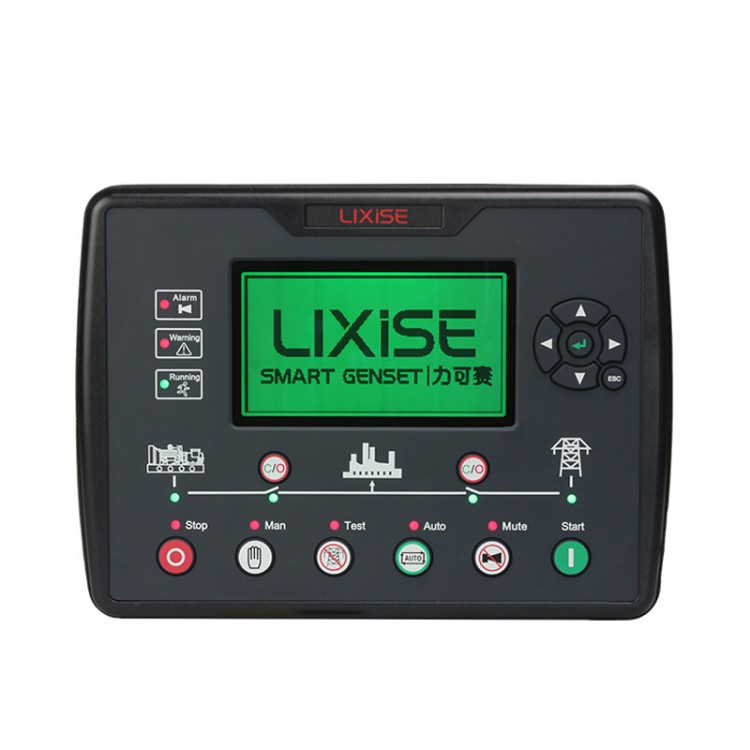

Maxgeek LXC6120E AMF Diesel Generator Controller Auto Start Genset LCD Control Panel Generator Parts

Maxgeek LXC6120E AMF Diesel Generator Controller Auto Start Genset LCD Control Panel  Generator Parts

Description:
-LXC6120E series of power plant automation controller for the automation and monitoring system of a single diesel generator sets, using 32-bit microprocessor technology, achieving generator sets automatic boot/shutdown, the precision measurement of various parameters, alarm protection and three remote function.
-The controller uses a large-screen LCD (240*128LCD)graphics display, all the important parameters can be displayed in page, save the page. At the same time it can display Chinese, English and other languages, all parameters can be adjusted from the controller panel. It can also be a PC through a USB interface tweaks and RS485 or GPRS remote adjustment and monitoring.
-Its structure is compact, simple wiring, high reliability. Automation control systems are widely used in all types of generator sets and fire pumps.

Specification:
Operating Voltage: DC 8.0V to D C35.0V, continuous Power Supply
Power Consumption: <3W (standby:≤2W)
Alternator Input Range: 15V-360V AC (ph-N)
3-phase 4-wire: 26V-620V AC (ph-ph)
3-phase 3-wire: 15V-360V AC (ph-N)
Single-phase 2-wire: 15V-360V AC (ph-N)
Alternator Frequency: 50/60Hz
Speed Sensor voltage VPP: 2.2-100Vpp (peak to peak)
Speed Sensor Frequency: 10000Hz (max)
Start Relay Output: 16Amp
Fuel Relay Output: 16Amp
Programmable Relay Output 1: 7Amp, 250VAC voltage free output
Programmable Relay Output 2: 7Amp, 250VAC voltage free output
Programmable Relay Output 3: 16Amp, 50VAC voltage free output
Programmable Relay Output 4: 16Amp, 250VAC voltage free output
Case Dimension: 210mm x 152 mm x 48 mm
Panel Cutout: 186mm x 141mm
C.T. Secondary: 5A Rated
Working Conditions Temperature: -25~+70℃, Humidity:(20~90)%
Storage Condition Temperature: -40~+85℃
Protection Level: IP55, when waterproof rubber seal installed between the controller and panel fascia; IP42, when waterproof rubber seal is not installed between the controller and panel fascia.
Insulating Intensity Object: input/output/power
Quote standard: IEC688-1992
Test way: AC1.5kV/1min leakage current: 3mA
Weight: 0.9kg

Performance:
-The average load rate, by calculating the load rate, detect genset load operation, avoid overload operation.
-Custom boot interface, user can add your own contact information, company name, logo, slogan, etc.
-Installment payment service, through the password form to manage gensets.
-Maintenance remind, Accumulative total run time automatically, Timely remind maintenance.
-Big screen (240*128) LCD display, on a page can browse all the data, avoid frequent page breaks.
-Multi-language selection, support Chinese, English, Russian and Spanish.
-USB connection, plug and play, convenient for debugging and application.
-200 fault records, detailed record 25 parameters of failure moment, easy to analyze the failure reasons.
-Real-time clock automatically timed training run, programmable 2 sets of training time.
-Collect and display mains overvoltage, under voltage, over frequency, low frequency, loss phase and anti-phase warning function.
-Level 2 different identities password, plus a one-time temporary password, safe and reliable.

Features:
-With USB and RS232 standard controller interface, and customers do not have to spend extra money and time to buy the interface adapter.
-With black box records, this function can record genset failure instant data to provide data basis for repairs, remote fault analysis, resolve problems quickly.
-Automatically adjust the contrast on the generator controller, this technology can automatically adjust the contrast according to the ambient temperature to achieve from -32~65℃temperature range can be displayed properly.

Package List:
1 x Genset Controller
