Maxgeek SLS3-125C/4P ATS Controller Generator Automatic Transfer Switch PC Type for Power Generation

Maxgeek SLS3-125C/4P ATS Controller Generator Automatic Transfer Switch PC Type for Power Generation

Description:
The automatic transfer switch is a pc-type three-position automatic transfer switch device, which is mainly used for operation and transmission between two power supply systems (main power and backup power). Its special power monitoring device can detect the difference between the two power sources and convert between the two power sources. It can also send control signals to start and stop the generator when it matches transmission conditions.

Features:
- Durable thanks to its premium materials
- One-piece molding process
- Strict quality control
- Safe to use and energy-saving

Specifications:
- Number of poles: 4P
- Rated working current (A) le: 16-125A

Use category:
- Rated short-time withstand current (kA, rms) Icw: 10KA (200mS)
- Rated short-circuit making capacity (kA peak) Icm: 20KA
- Contact switching time: 1.5S

Number of operation cycles:
- No current: 8500
- Current: 1500
- Total: 10000

Other Parameters:
- Dimensions (WxDxH): 245 x 122 x 130mm/9.6 x 4.8 x 5.1"
- Net weight: 4.3KG/9.5LB

More Details:
- Controller Type: Class C Controller
- Control working voltage: AC230V 50Hz/60Hz
- Auxiliary power supply voltage: DC 24V
- Voltage measurement range: 40~300V
- Power consumption: ≤10W
- Working position: three working positions (common closing, standby closing, double-opening)
- Operation mode: manual, automatic, display and buttons
- Display mode: LED: closing status and power supply display. Mechanical indication: device opening and closing status and operation mode. LED display indication: device opening and closing status, power supply status and parameter setting, etc.
- Conversion mode: automatic switching and automatic recovery/automatic switching without automatic recovery/grid-generator
- Undervoltage conversion value: 160~220V adjustable
- Over-voltage conversion value: 160~220V adjustable
- Power supply under-/over-frequency detection: none
- Timing start function: no
- Conversion delay function: 0~300s adjustable
- Return delay function: 0~300s adjustable
- Phase loss detection: three-phase detection (A, B, C)
- Generator control: Yes (a set of relay dry contacts)
- Fire-fighting linkage control: fire-fighting and non-contact (passive contact input, with a set of normally open passive signal feedback points)
- Isolation Locking: The disconnected position has an isolation function and can be padlocked at the same time
- RS485 communication : no
- Installation method: one-piece with LED display by default (can add a split connector to make a split)

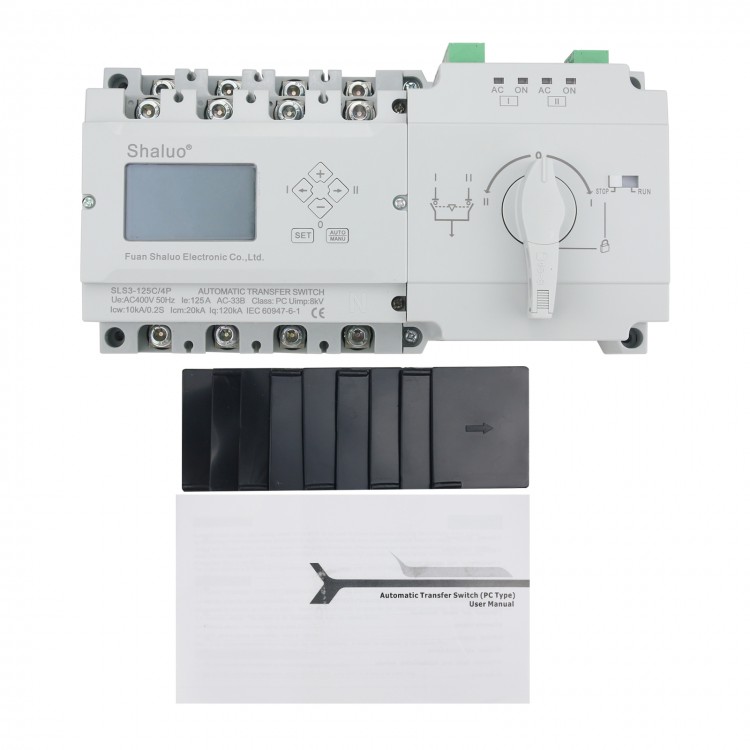

Package Included:
- 1 x Set of ATS Controller
