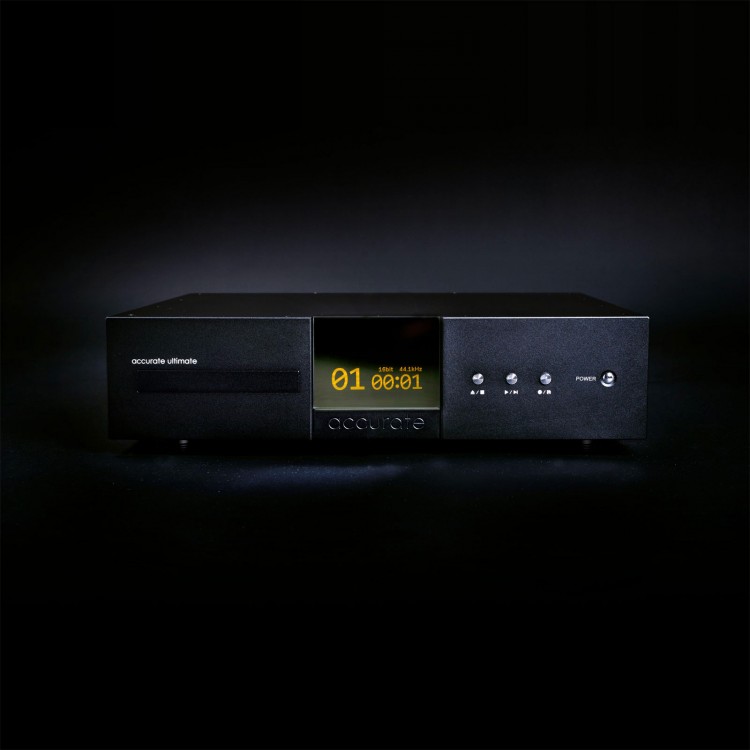

MBP-N1000 MK2 High Performance CD Player Linear Power Supply ROON Network Bridge Streaming Player

MBP-N1000 MK2 High Performance CD Player Linear Power Supply ROON Network Bridge Streaming Player

Description:
- MBP-N1000 is a unique product that combines high-performance audio servers with the latest generation of memory based CD players. You can play your favorite CDs from a CD player, play back your digital audio from an internal SSD, or experience the latest streaming files through a wired network; You can also easily make your favorite CDs as digital audio and store them on the SSD inside the machine through an external USB drive.

High Performance Audio Processor for FPGA:

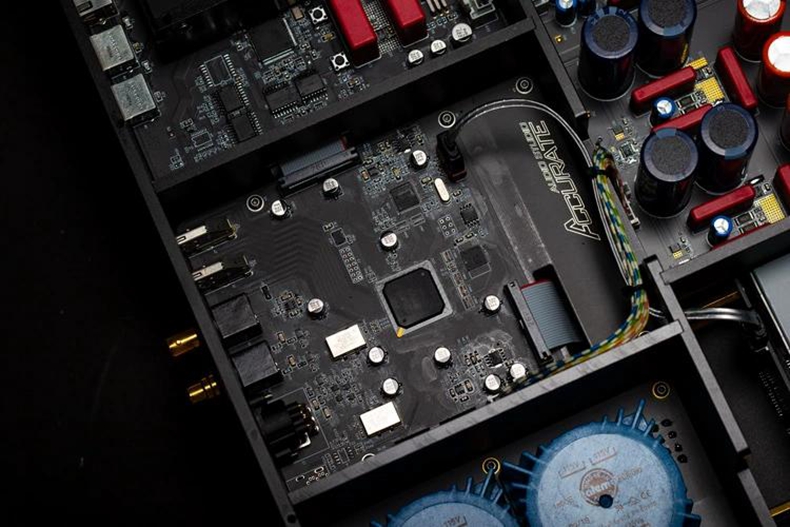

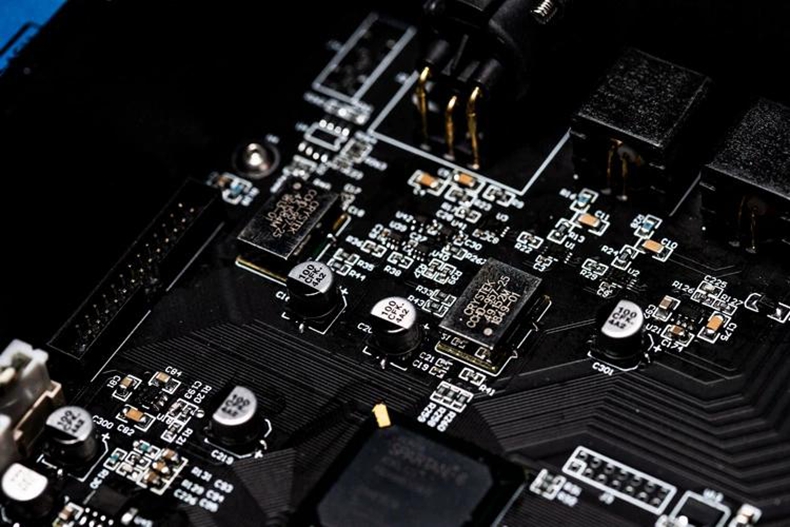

- The MBP-N1000 is built on a powerful digital audio core, where all audio data first flows through a large RAM buffer. The audio data output is built on a clock with ultra-low phase noise, making the machine performance close to an ideal signal source. The powerful processor for FPGA is responsible for playing CDs in exclusive mode and is completely separate from the audio server. Moreover, for FPGA contains a large number of DSP units, which can effectively process audio data streams in real-time, saving a lot of CPU processing power on the server side.

Independent Music Server:
- The audio server embedded in the network is completely electrically isolated from the audio data processing end to prevent any unnecessary noise from leaking into sensitive audio data areas. We carefully balanced the power consumption and processing capacity of the server. At first glance, people may tend to use high-performance CPUs, following the principle of 'bigger is better'. In fact, a powerful CPU processor is not always necessary. A CPU with strong processing power means a more complex structure and high power consumption. The restoration of this sound may not necessarily be a good thing; The benefits of a CPU that meets system requirements are lower noise, simpler structure, lower electromagnetic interference radiation, and of course, lower power consumption. The server software is based on a lightweight version for Linux, which gives the quad core processor enough space to run more audio services in parallel.

Fully Linear Precision Regulated Power Supply + Super Capacitor Luxury Power Supply:

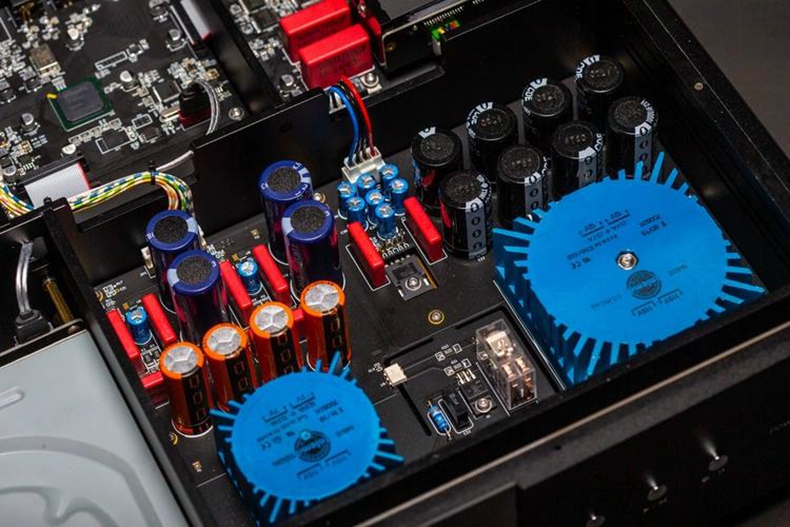

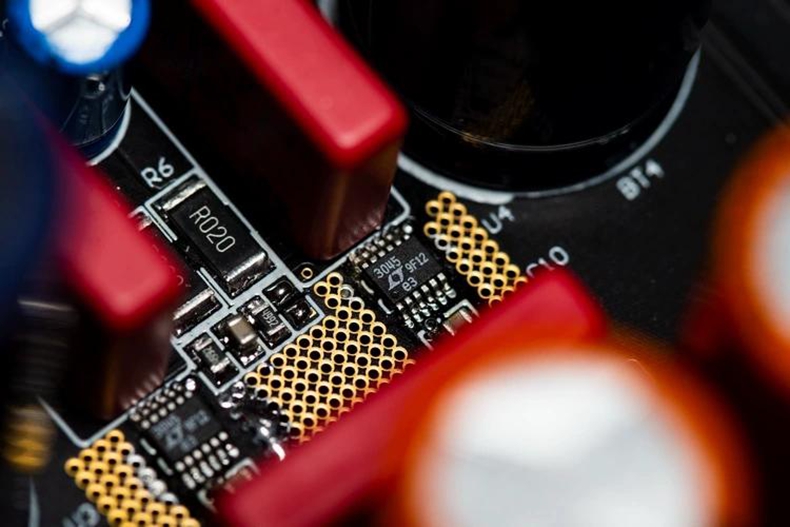

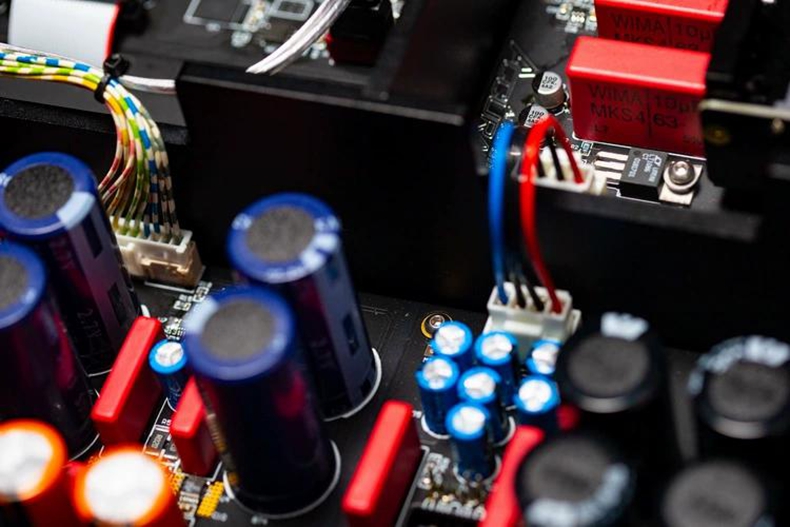

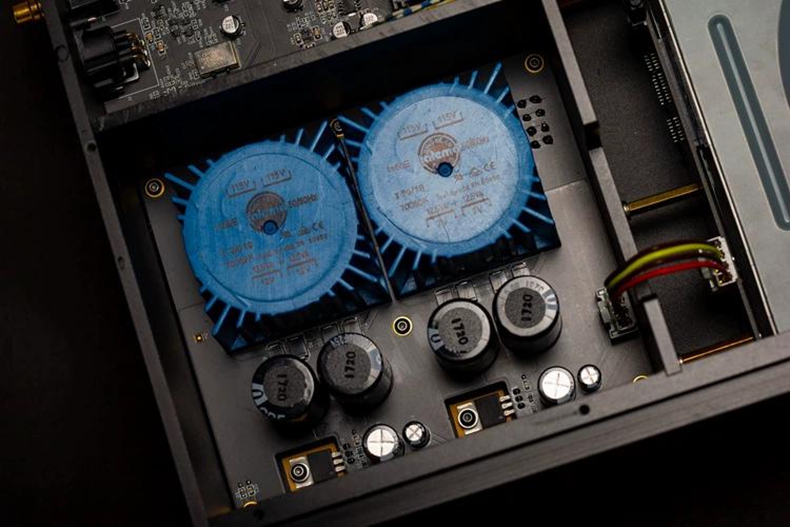

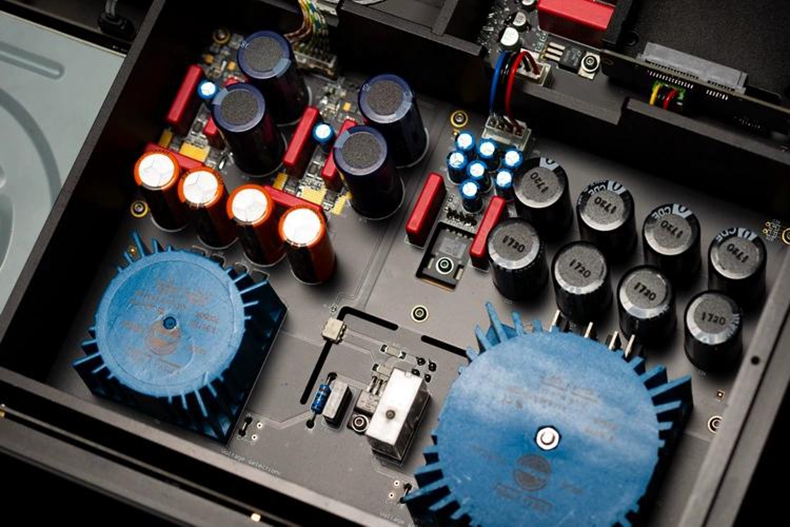

- A good audio device cannot do without a powerful power supply system; Whether it's an audio server, a digital signal processing unit, or a power supply unit for a CD player, we only use a linear power supply. The N1000 machine is equipped with 4 fully encapsulated ring transformers for TALEMA and an 180000uF ultra large filtering capacitor array. The digital signal processing part is powered by 4 LT3045 ultra-low noise linear regulators and super-capacitors.

Software Functions:

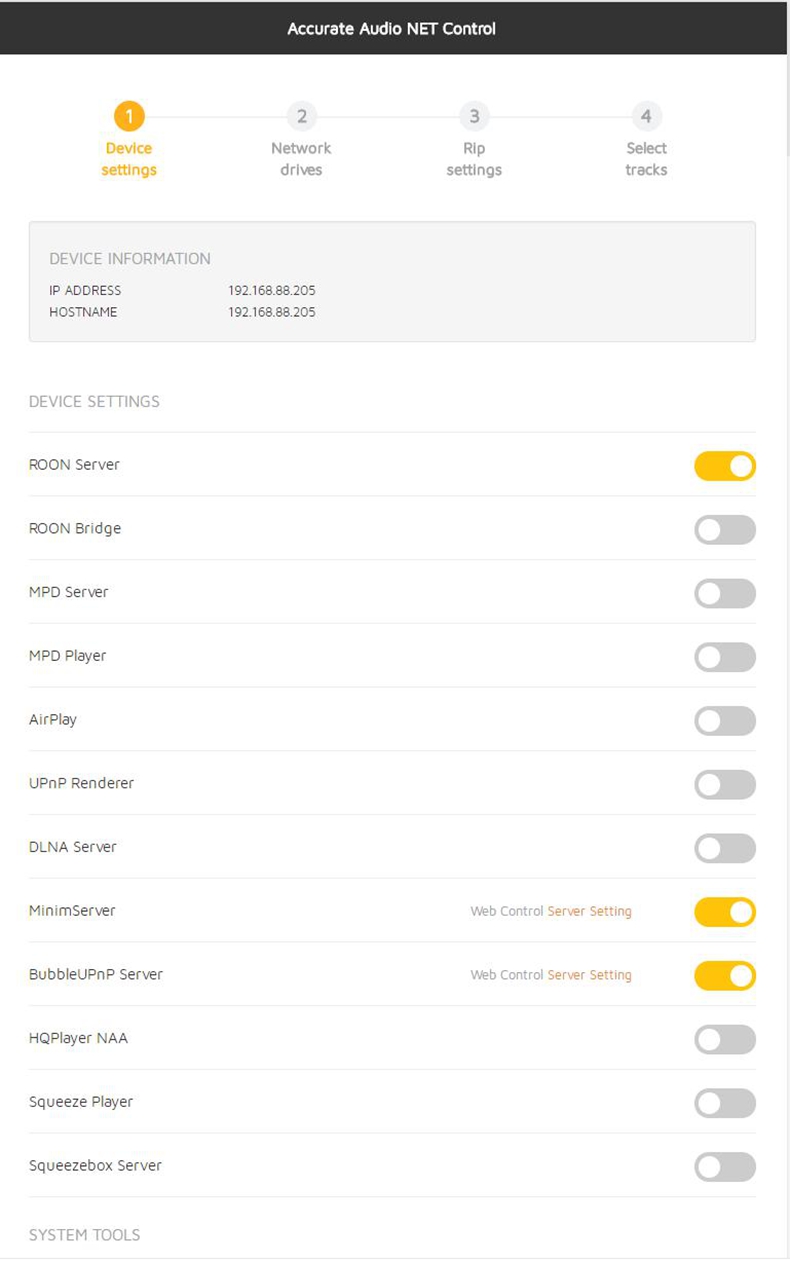

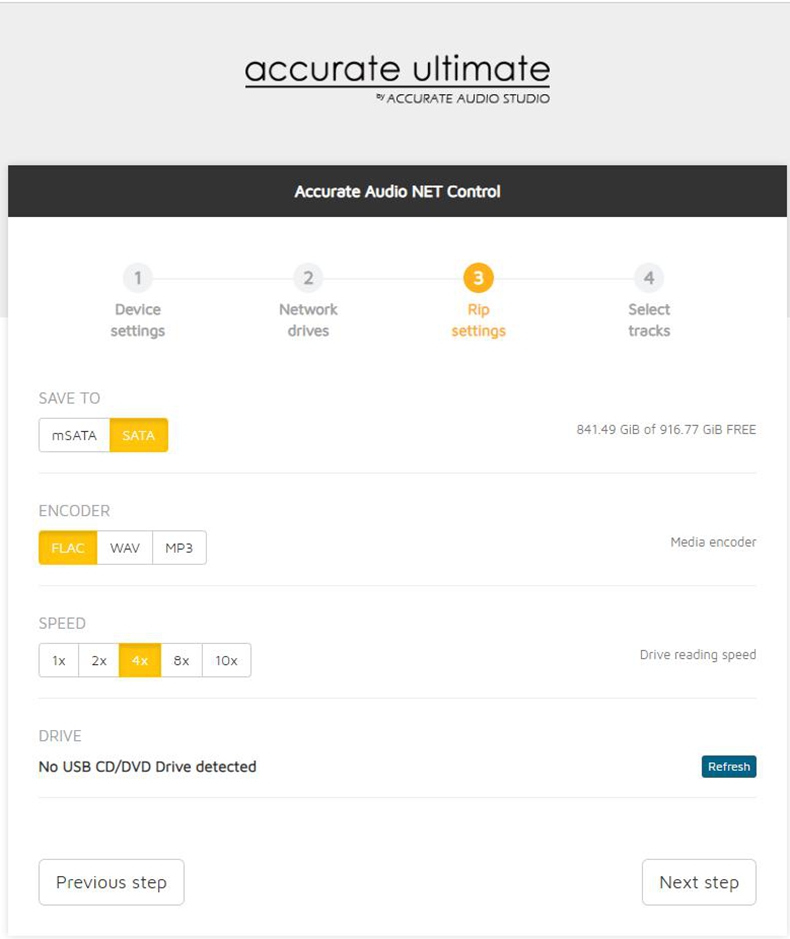

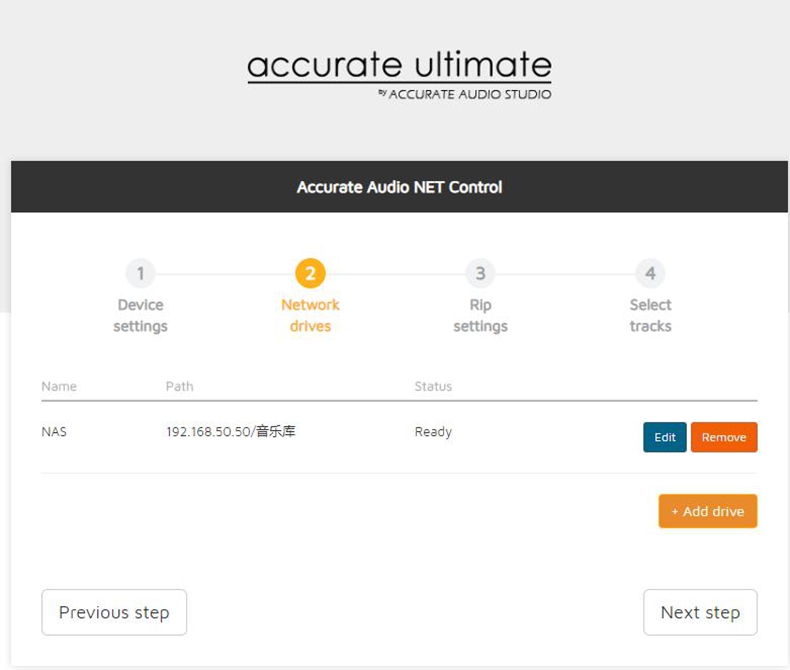

- The MBP-N1000 software package is a dynamic collection of audio services. They are controlled through a simple and direct web interface, which can be accessed and controlled through a phone/tablet or local computer.

General Parameters:
- Maximum power consumption: 125VA
- AC IN: 230V/115V (optional, default 230V)
- Product size: 452 x 127 x 373mm
- Net weight: 16.5kg

Interface Parameters:
- USB1-USB2.0 For HDD x 1: can be used to connect external portable storage devices such as USB flash drives and hard drive enclosures
- USB2-USB2.0 For Rip x 1: can be used for external CDs or track grabbing devices to achieve lossless track grabbing
- LAN: 1000M wired RJ45 network port, connected to a router for network control and data transmission
- SPDIF x 1: coaxial output port, used for coaxial signal output connected to the decoder
- AES/EBU x 1: balanced digital signal output port, used to connect a decoder with AES input
- BNC x 1: 75ohms coaxial output port, used for coaxial signal output connected to the decoder
- HDlink (I2S) x 2: IIS differential digital signal interfaces, which can seamlessly connect with D1000 IIS

Supported Sampling Rate:
- The maximum support is only up to DSD256, and DSD512 and other higher sampling rates are not currently supported.
- PCM: 44.1kHz - 192kHz/24bit; 384kHz/32bit
- DSD: 2.8MHz (DSD64) - DoP; 5.6MHz (DSD128) - DoP; 11.2MHz (DSD256) - DoP

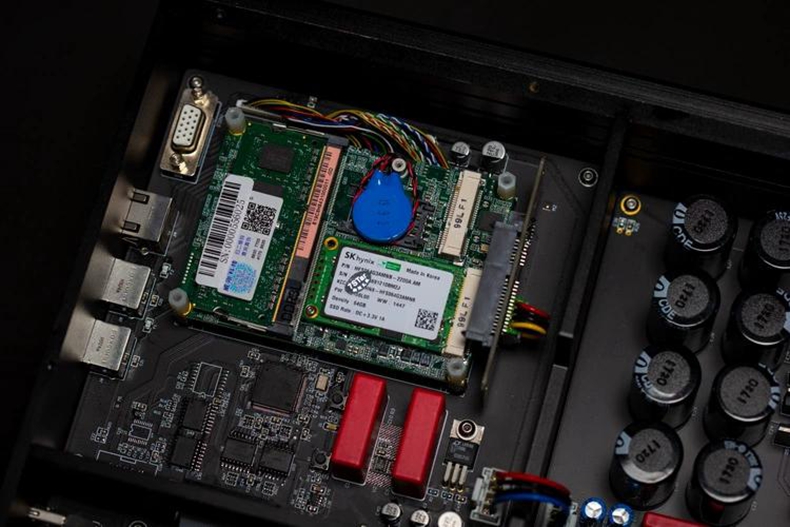

Server Parameters:
- Power supply: high precision large current ultra-low ripple linear regulated power supply
- CPU: for Intel Celeron processor J1900
- Memory: 1 x DDR3L - 1066/1333 SO-DIMM-4GB

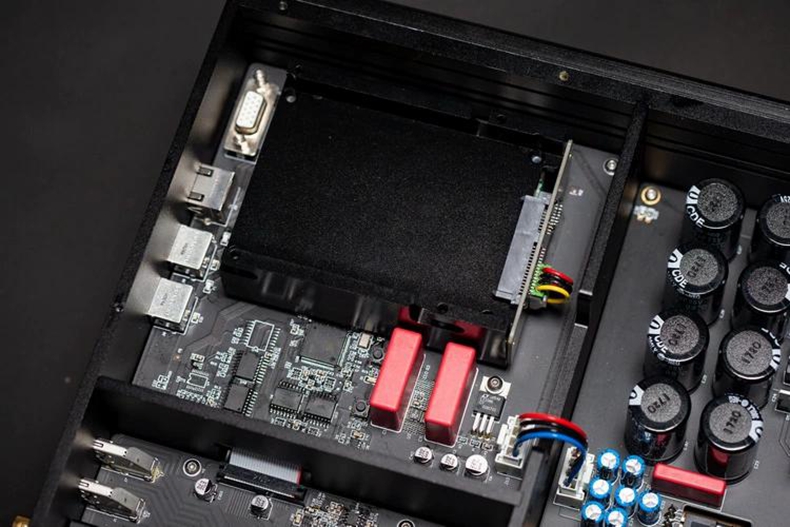

- SSD: 1 x full-size PCIE Express Mini Card slot with mSATA, 120GB; 1 x SATA-300, support up to 4TB SSD (Note: SSD is not included, please prepare by yourself.)
- Network card: 1 x 10/100/1000Mbps adaptive
- Display: for Intel HD Graphics for VGA (built-in spare interface)

Package Included:
- 1 x Streaming Player
