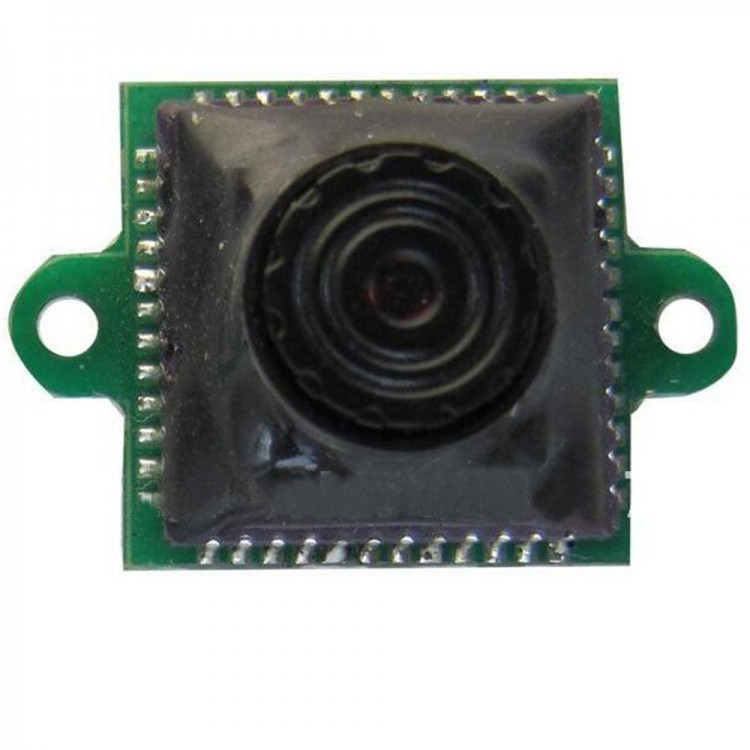

MC493-12 DC9V-12V HD Mini 0.008Lux 520TVL 55 Degree 1/3 CMOS CCTV Security HD Video Camera

MC493-12 DC9V-12V HD Mini 0.008Lux 520TVL 55 Degree 1/3 CMOS CCTV Security HD Video Camera

Feature:
- Small size easy to install in tiny space and tiny pipe;
- Light weight can be installed without damage to the surface of the object;
- High resolution, high sensitivity and high SNR;
- Double mode automatic switching during the day and night;
- Low illumination, high definition video recording function;
- Current and low power consumption;

Application:
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

Specification:
- PICK UP ELEMENT: Single chip 1/3 CMOS
- SYSTEM: NTSC/PAL
- NUMBER OF PIXEL: NTSC:656(H)×492(V); PAL:786(H)×576(V)
- IMAGE SIGNAL PROCESS: Digital Signal Processing System
- SENSOR DIMENSION: 4.75mm(H)×3.55mm(V)
- HORIZONTAL RESOLUTION: Approximately 520TV Lines
- SCANNING SYSTEM: 2:1 Interlace
- SENSITIVITY: 0.008Lux/F1.2
- LENS & VIEW ANGLE: 0.5mm F2.0 / 55 °
- S/N RATIO: 52dB
- ELECTRONIC SHUTTER: OUT(1/60 S TO 1/100000 S);OUT(1/50 S TO 1/100000 S)
- AUTO GAIN CONTROL: OUT
- WHITE BALANCE CONTROL: OUT
- BACK LIGHT COMPENSATION: OUT
- VIDEO  OUT: 1.0V p-p/75ohm
- SIZE  (L x W x H): 16mm x 16mm x 10.5mm
- WEIGHT: 3g
- WORK CURRENT: 72mA
- POWER REQUIREMENT: DC 9V-12V
- OPERATING TEMPERATURE: - 10° C ~ +50°C,less than 90% RH
- Connection: PIN1- Red DC5V  PIN2- Black GND  PIN3- YellowVIDEO OUT

Usage:
- CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
- To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
- To view on your computer or laptop you will need a DVR card or USB;
- A standalone system that records is a standalone DVR; 5) CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers

Package contents
- Mini camerax1
- BNC/ AV Cable x1
- Power Adapterx1
