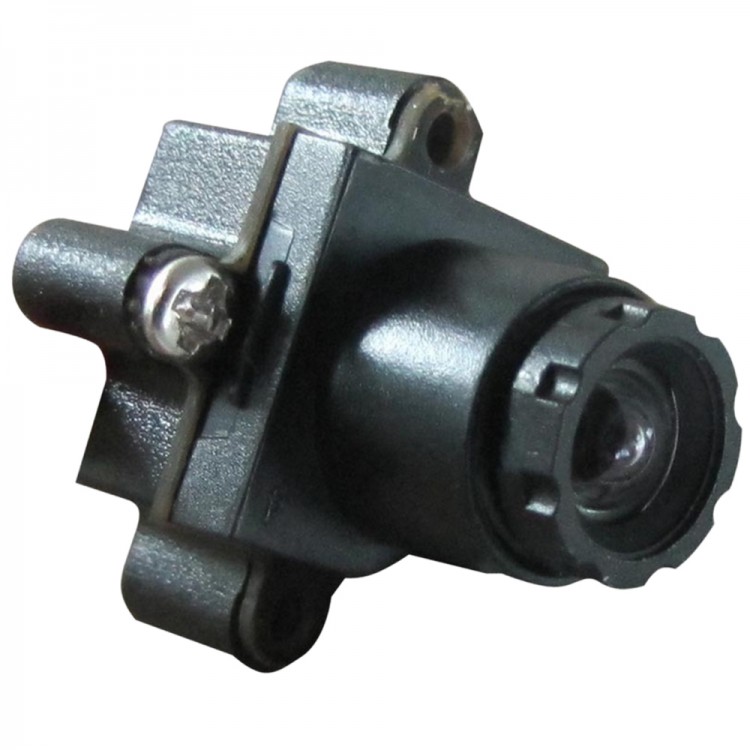

• MC5910 DC3.3V-24V 520TVL 0.008LUX Super Mini CMOS CCTV Camera Module 90degree VOA Audio Cam

MC5910 DC3.3V-24V 520TVL 0.008LUX Super Mini CMOS CCTV Camera Module 90degree VOA Audio Cam

Availability: In stock, usually dispatched in 1 business day

  • Price:$26.83
  • Price in reward points: 268 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $26.29 $25.76 $24.95 $23.88 Contact US
Quantity:

MC5910 DC3.3V-24V 520TVL 0.008LUX Super Mini CMOS CCTV Camera Module 90degree VOA Audio Cam

Description:

- This mini camera comes with high sensitive CMOS sensor, which has excellent video function and very low illumination. It is of high stability and ultra long working life.

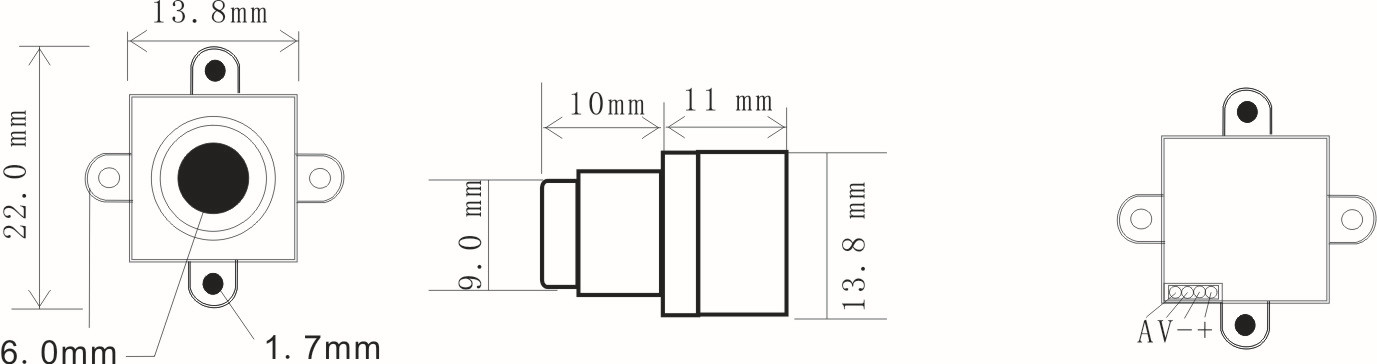

- Small size(13.8X13.8X21mm) and light weight(4g), with two screw holes(screws provided), it is easy to install into the ceiling, wall, cabinets, equipments, etc. for safe surveillance.Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.

Main Features:
- Small Size: easy to install into narrow room: ceilling,wall,cabinets equipments, etc.;
- Light Weight with 2 screw holes: easy to install without causing unnecessary damage on object surface;
- High resolution, high sensitivity, high SNR;
- 90 degree broad view of angle;
- Day & night dual mode auto switch;
- Low Current and power consumption;
- CMOS sensor generation IV +DSP chip offer true color & HD video.

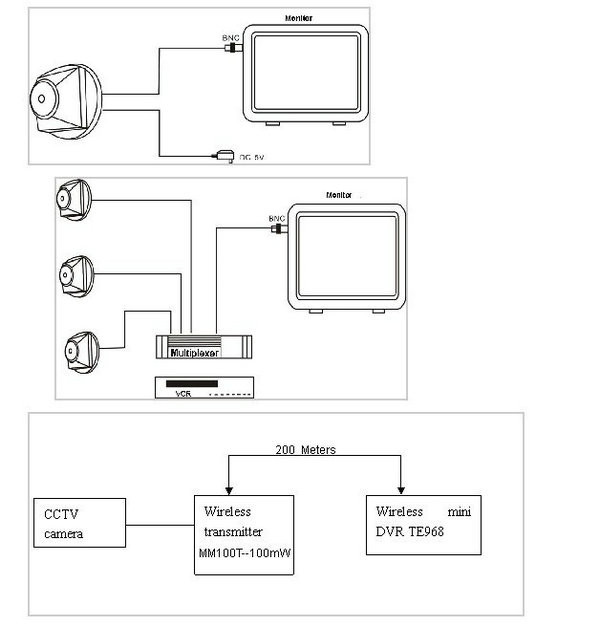

How to use:
- Work with TV/monitor: Camera powered by provided AC adatper. Connect it to TV/monitor with RCA/BNC cable.  Then watch live video & audio, or record, play on the TV/monitor;
- Work with DVR(AV-IN jacked,e.g.TE968H):Camera powered by DVR. Just directly connect the camera with DVR,  it starts to work. Then watch live video & audio, or record, play,  take pictures on DVR.

Usage:
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers

Package included:
- 1 x CMOS CCTV Camera
- 1 x Manual
- 1 x BNC/RCA cable
- 1 x Power adapter
