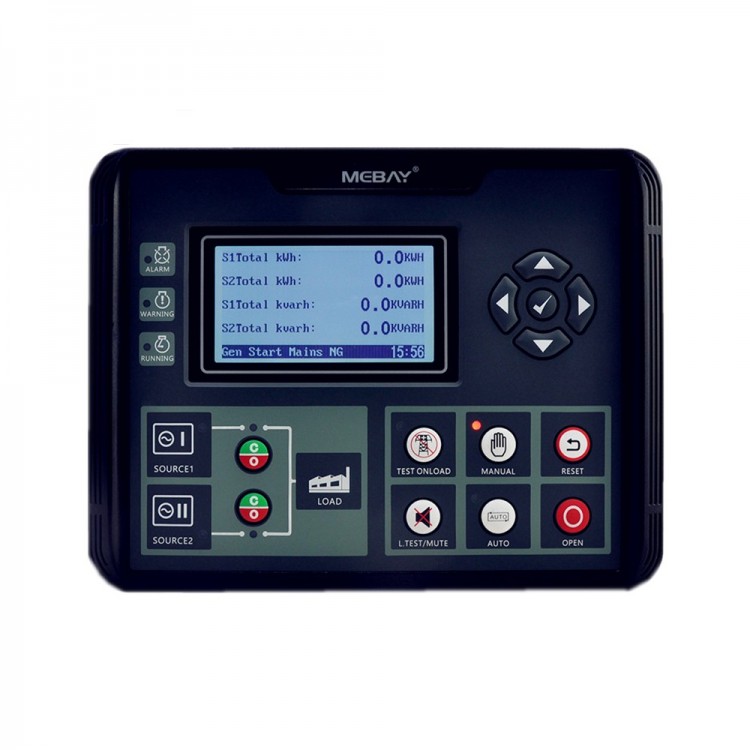

Mebay ATS520R ATS Genset Controller RS485 DC/AC Power Supply 1P2W to 3P4W Dual Power Intelligent Switching Module

Availability: In stock, usually dispatched in 1 business day

  • Price:$133.44
  • Price in reward points: 1334 Reward Points: 13
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $130.77 $128.10 $124.10 $118.76 Contact US
Quantity:

Mebay ATS520R ATS Genset Controller RS485 DC/AC Power Supply 1P2W to 3P4W Dual Power Intelligent Switching Module


The ATS520 series has four models:

ATS520: Dual power intelligent switching module;
ATS520I: On the basis of ATS520, the electric energy measurement function is added.
ATS520R: RS485 port is added on the basis of ATS520.
ATS520IR: On the basis of ATS520, power measurement and RS485 port are added.

Description:

- This series of controllers is a dual power switching controller, which has programmable function, automatic measurement and control, LCD display of dual power intelligent switching module.
- This controller uses 3.5 inch 240*128 large screen high resolution LCD display, a completely new and original UI design.Controller built-in Simplified Chinese, English and other display interfaces can be selected, and language interface can be customized according to customer requirements.
- All parameters of the controller can be adjusted by keys on the controller panel, or adjusted and monitored by PC through USB port or RS485 interface.
- It can be widely used in various types of power systems.



Specification
Working voltage
DC8-36V Continuous

Power consumption
Standby:24V:MAX2W
Working:24V:MAX6W

Mains AC Voltage Input
1P2W 30VAC-369VAC(L-N)
2P3W 30VAC-625VAC(L-L)
3P3W 30VAC-625VAC(L-L)
S1 Close Output
16Amp(AC250V) free output
S2 Close Output
16Amp(AC250V) free output
Programmable Relay output 1-6
10Amp(AC250V) free output
Switch value input
Available if connecting with Battery-
Working condition
-25-65℃
Over all dimension
210mm*160mm*50mm
