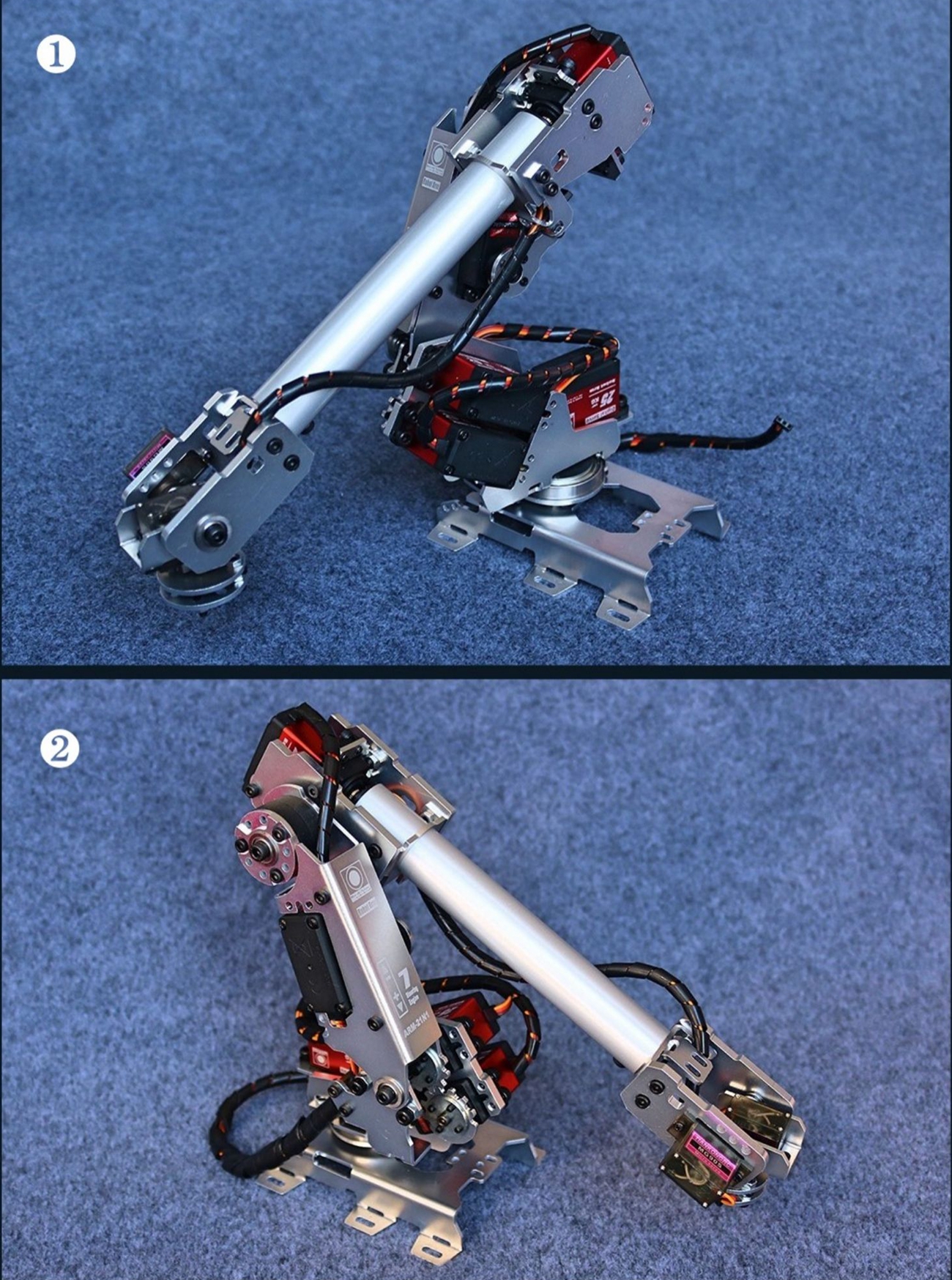

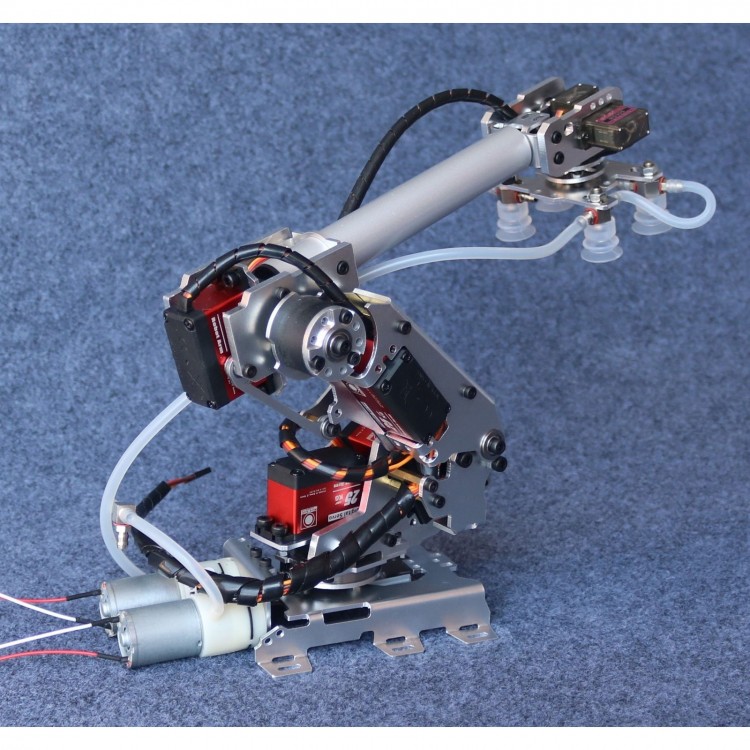

Mechanical Arm Unassembled Kit Industrial 6-axis Robot 221 DOF Metal Robotic Arm with 20kg Digital Servos
Description:
- The mechanical arm calculates the precise size according to the gear load of the universal metal steering gear and the steering gear circuit load, so as to give play to the better performance of the steering gear and improve the mechanical performance of the mechanical arm.

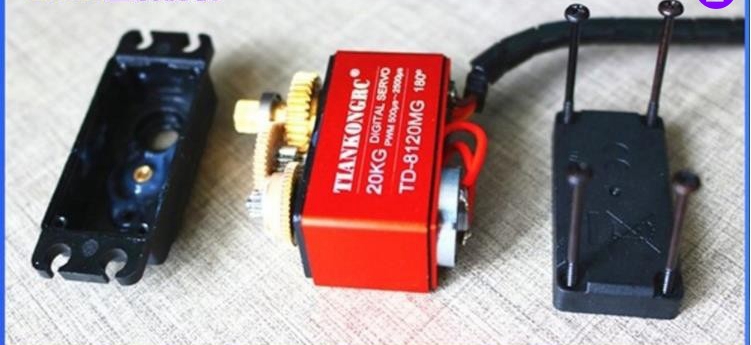

Parameter of 20kg Digital Servos:
- Main board: Digital controller
- Dimension: 40 x 20.5 x 40.5mm
- Weight: 56g±5%
- Operating voltage: 4.8-7.2V
- Output drive: Metal gear + double bearings
- No load speed: 0.14-0.18sec/60°
- Stall torque: 20.5kg.cm
- Pulse width: 500-2500usec
- Rotation angle: 180°
- Dead zone width: 5usec
- Midpoint position: 1500usec
- Output rotating shaft: 25T
- Output shaft pole: M3
- Idle electric current: 210-260mA
- Blocking current: 2100-2700mA
- Waterproof level: Light waterproof
- Body shell: Aluminum alloy and plastic
Package Included:
- 1 x Mechanical Arm Kit (in bulk)
- 1 x 20kg Digital Servos
