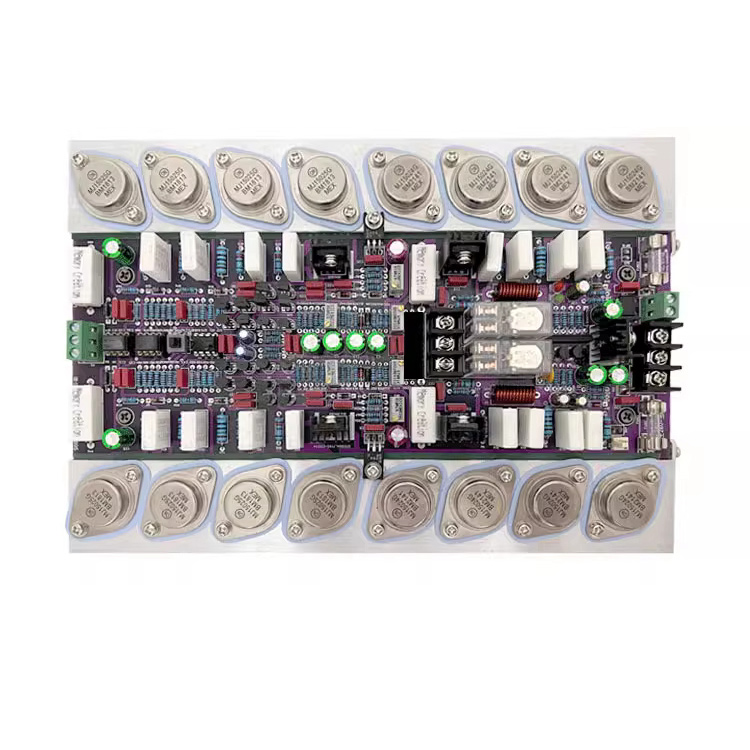

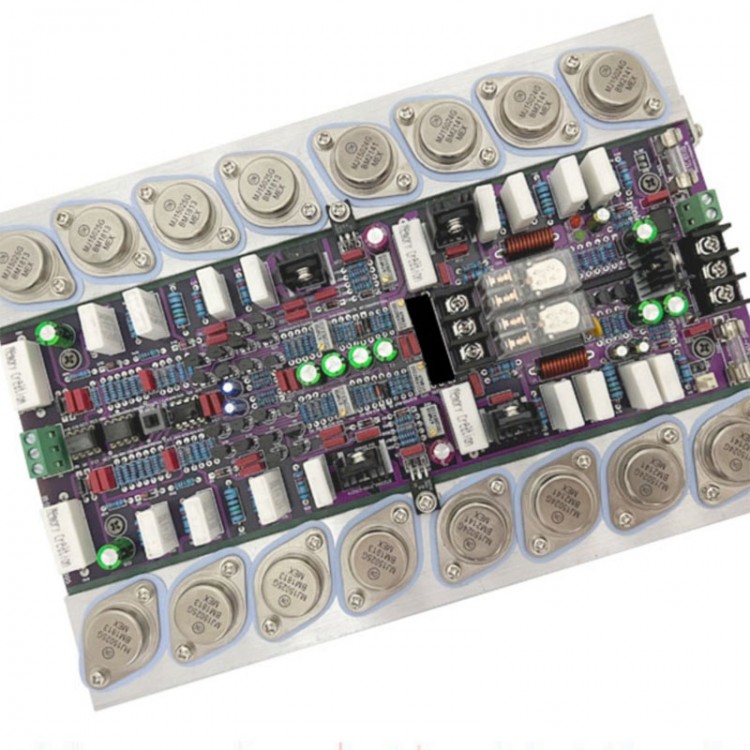

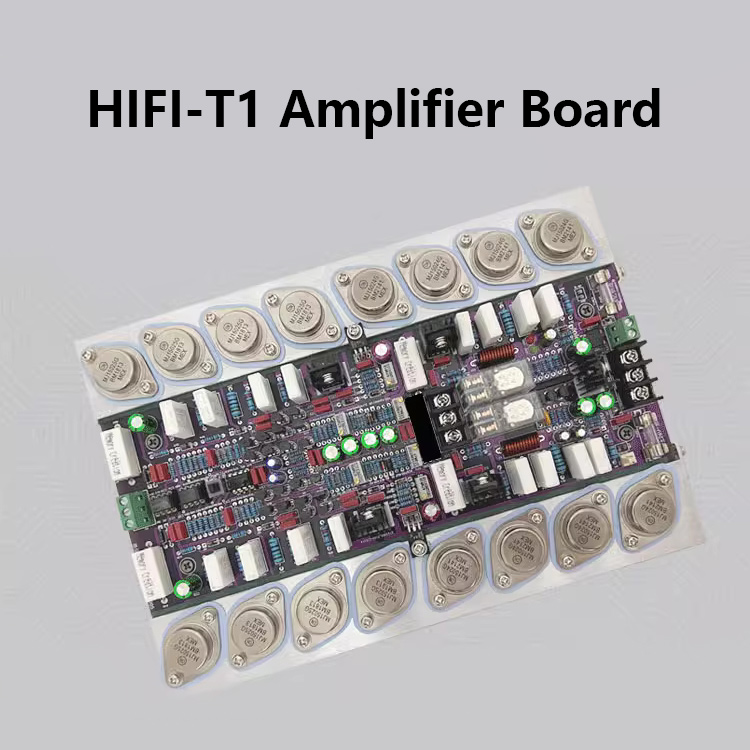

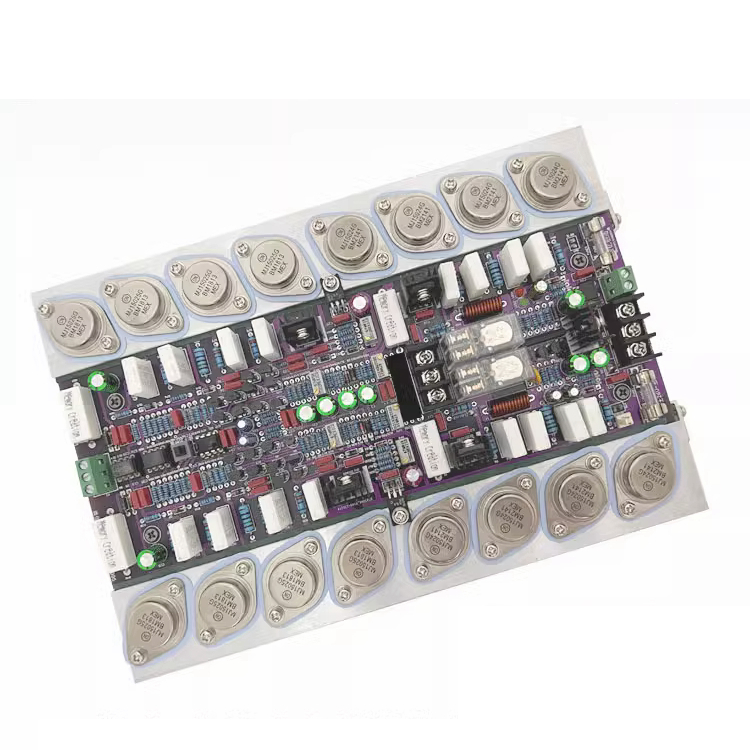

Memory Creation HIFI-T1 400W*2 Power Amp Board 2.0 Amplifier Board w/ Transistors of Metal Packaging

Memory Creation HIFI-T1 400W*2 Power Amp Board 2.0 Amplifier Board w/ Transistors of Metal Packaging

Features:
- HIFI-T1 class A high-power amplifier board: With high power and strong stability, the power amp board is suitable for 99.9% of enthusiasts
- User-friendly and high resolution
- HIFI and high-end sound quality
- Premium materials: Audiophile-grade components, 16pcs precision American transistors with metal packaging, adjustable zero-volt midpoint voltage, large aluminum for heat dissipation, original Hifi filter capacitors, American potentiometer, original Hifi chip and audio capacitors, and original relays for Omron
- Selected materials ensure a transparent voice, good layering, delicate and balanced sound, smooth strings, and a rich sense of presence. The treble is transparent and slender, and the low-frequency sound is full of elasticity
- With speaker protection circuit
- The voltage of zero volt midpoint is adjustable
- Double short circuit protection and over-heating protection
- Three-core original genuine chip
- Voltage feedback protection, delay protection circuit and current feedback protection
- First-stage differential amplification
- Constant temperature compensation
- Two-stage constant current and constant voltage amplification
- It supports BTL output
- Balance the current left and right
- Original relays for Omron can withstand 2500W
- The vocals are sweet, delicate, clear, transparent and layered. The bass is powerful
- The amplifier board parameters are strictly tested
- The board can be used as long as the wiring is correct. No debugging is required

Attention:
- In order to ensure that the midpoint voltage is 0V and class A current is sufficient for a good sound, dual 50V transformer is recommended. If you are using other voltages, please inform customer service.

Specifications:
- Brand: Memory creation
- Model number: HIFI-T1
- Output power: Class A 100W*2; Class A and B 400W*2
- Channel type: 2.0 stereo
- Main power supply: Dual DC 70V-88V
- Protection power supply: AC single 12V-single 18V
- Frequency response: 5Hz-200KHz
- Matching speakers: 4-8 ohms
- Speaker impedance: 2-16 ohms (4-8 ohms recommended)
- Power amplifier board type: Class A

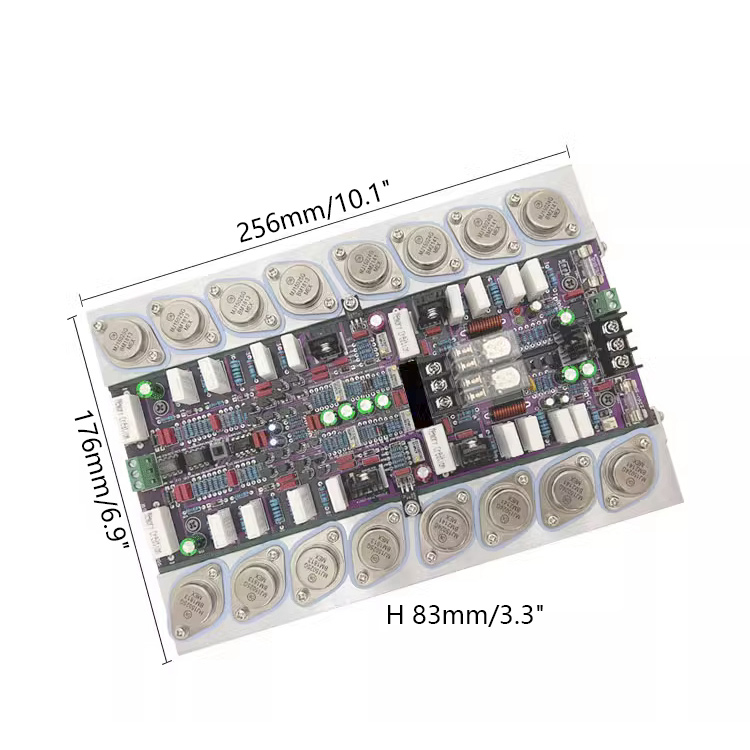

- Dimensions: 256 x 176 x 83mm/10.1 x 6.9 x 3.3" (LxWxH)
- Distortion: 0.0001%

Package Included:
- 1 x Amplifier board

Note:

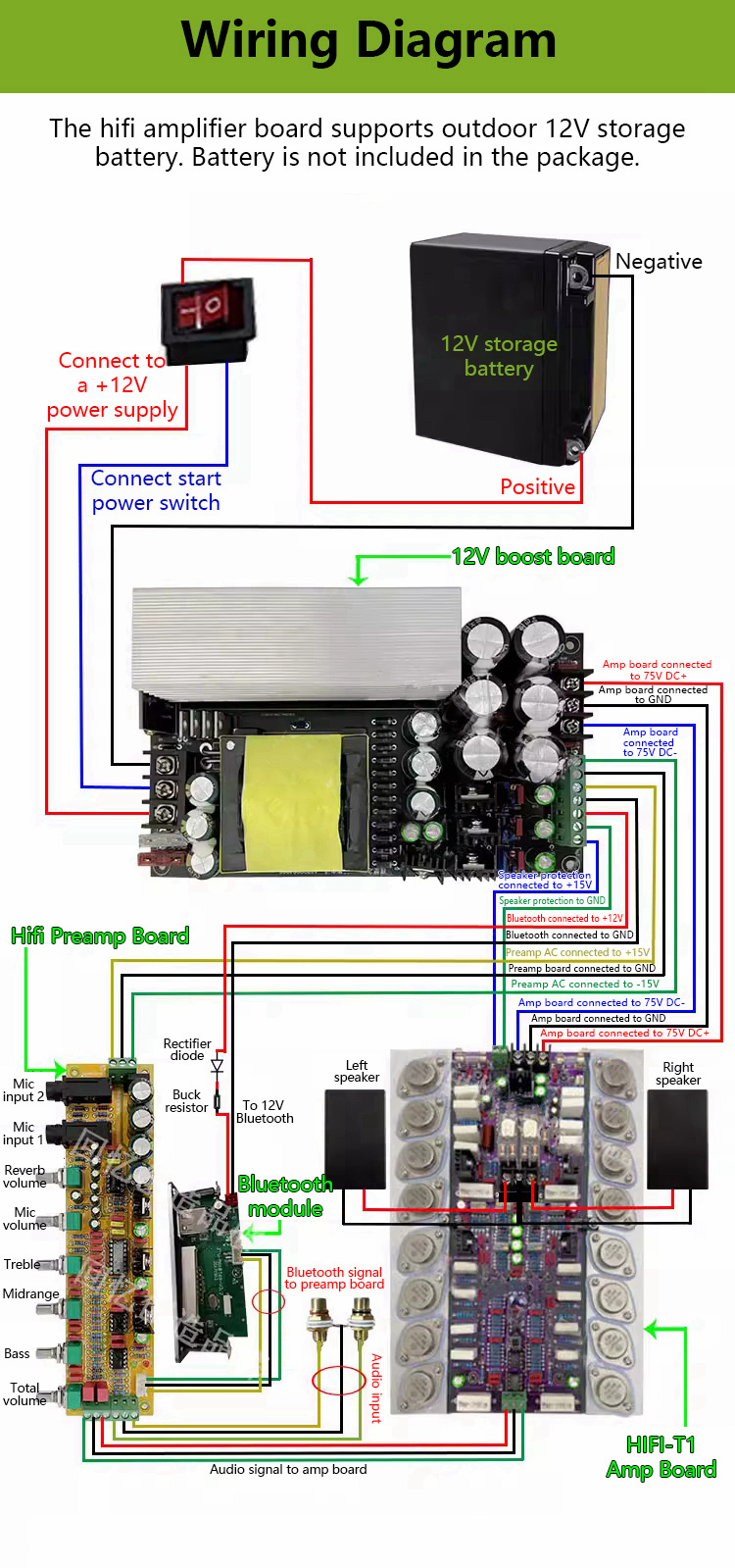

- Battery and other items pictured are not included, for demonstration purposes only. Thank you for your understanding!

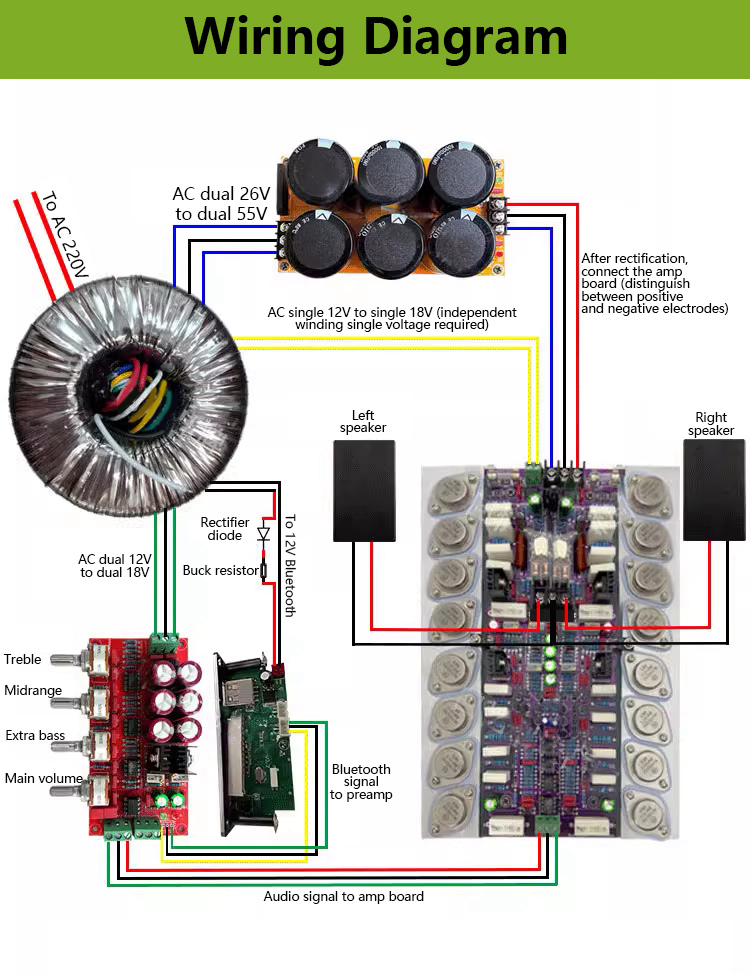

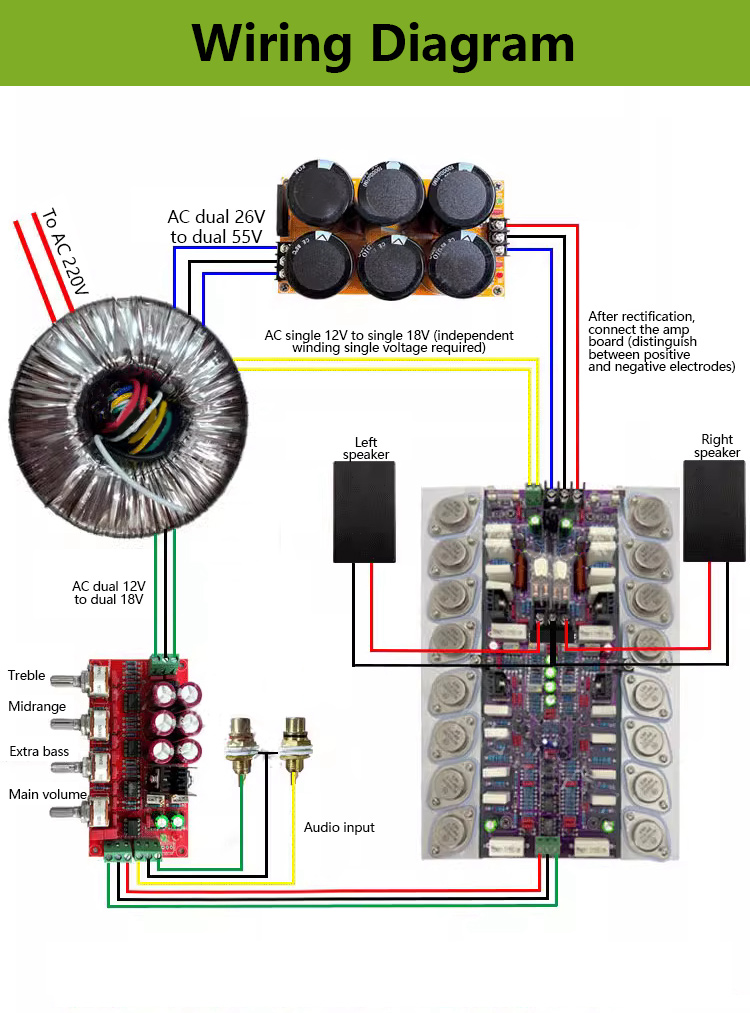

- The amplifier board should be used with a rectifier filter board, a transformer and a preamp board. It is recommended to use a DC 32V-86V toroidal transformers above 600W and a switching power supply.
- All wiring points must be wrapped with adhesive tapes before they can be energized. If you are not sure whether the wiring is correct, do not turn on the power, you can take pictures and contact customer service.
