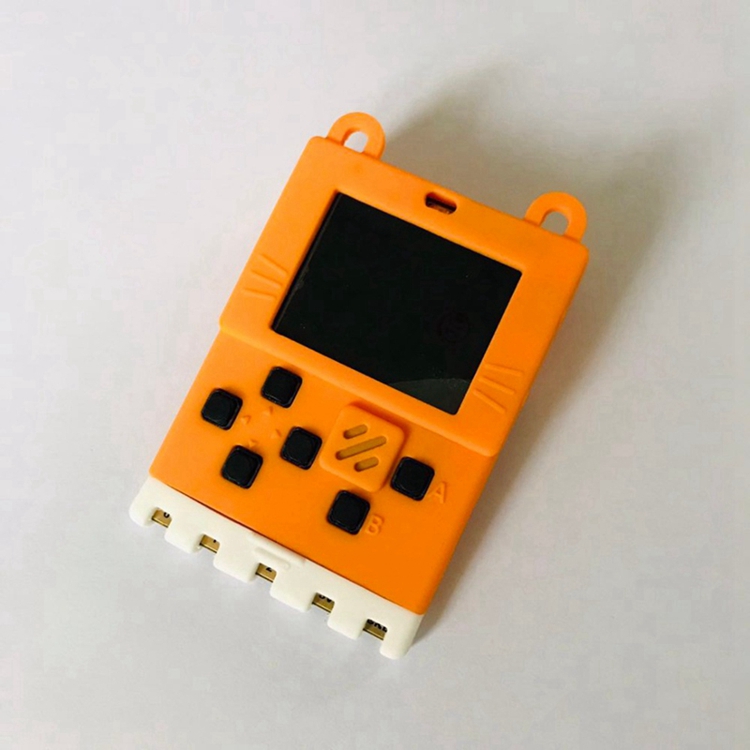

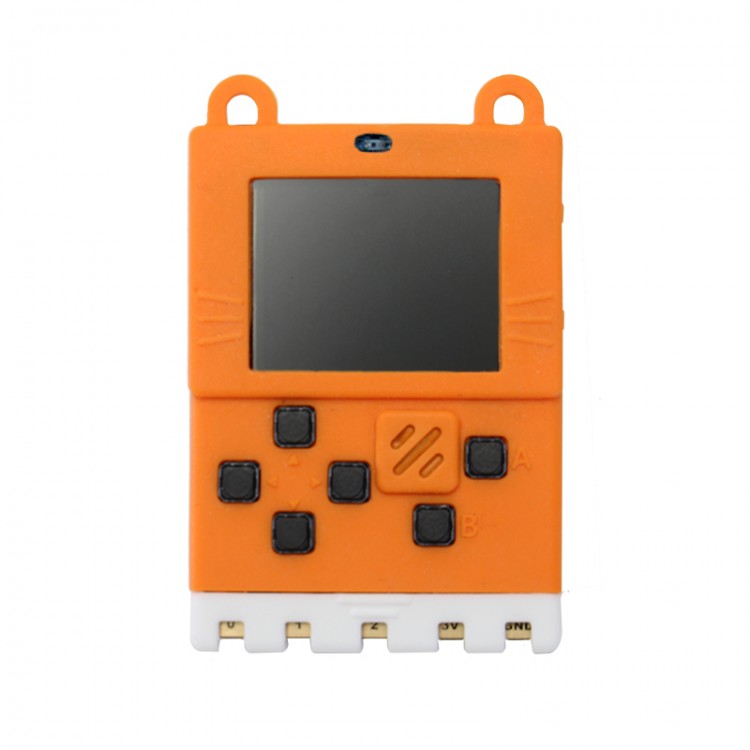

Meowbit Programmable Retro Game Computer Handheld Retro Game Console 160x128 Color Screen Orange

Meowbit Programmable Retro Game Computer Handheld Retro Game Console 160x128 Color Screen Orange

Features:
- Outstanding Compatibility: Its 40-pin port is compatible with our robotbit, IObit and the majority of expansion boards for micro:bit. It can be used with various sensors and devices, including actuators, servos and motors.
- Two Programming Mode: It supports for Makecode Arcade graphical programming mode. It also supports for microPython programming mode, i.e. Mu editor/arcade.
- With IO reading and writing function, it can be used as a controller as well as a game programming device.

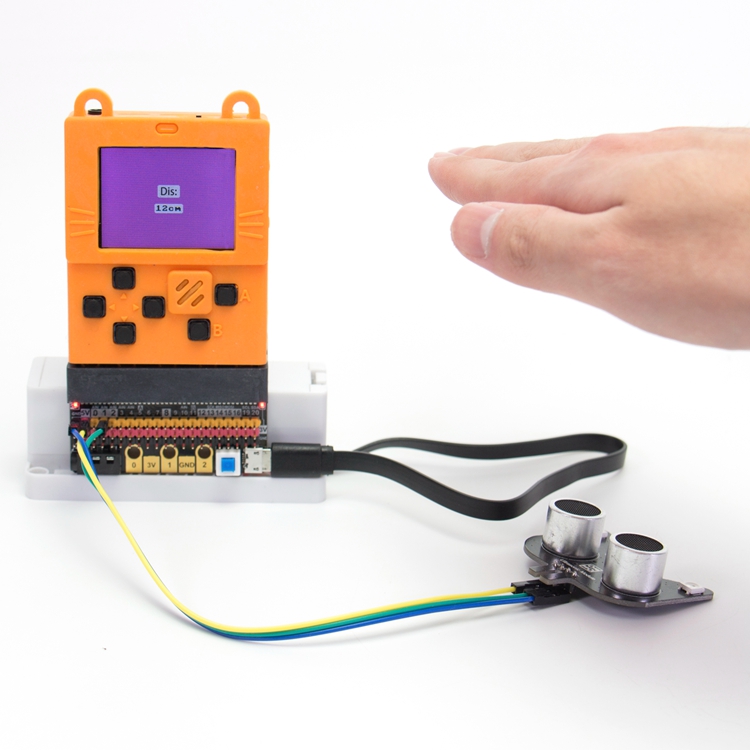

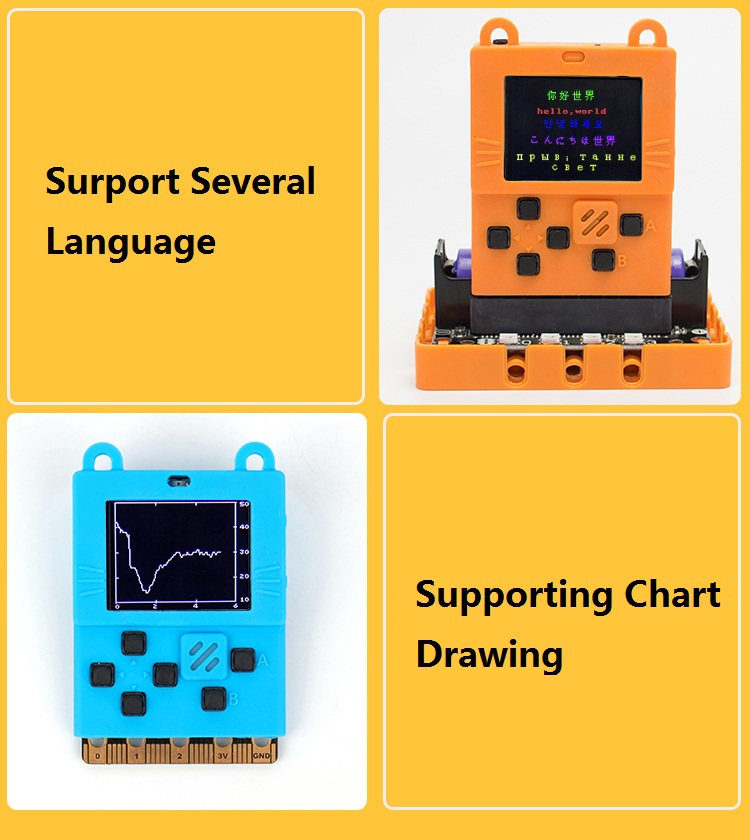

- Support drawing chart to show changes when sensors receive external signals
- Abundant on-board resources

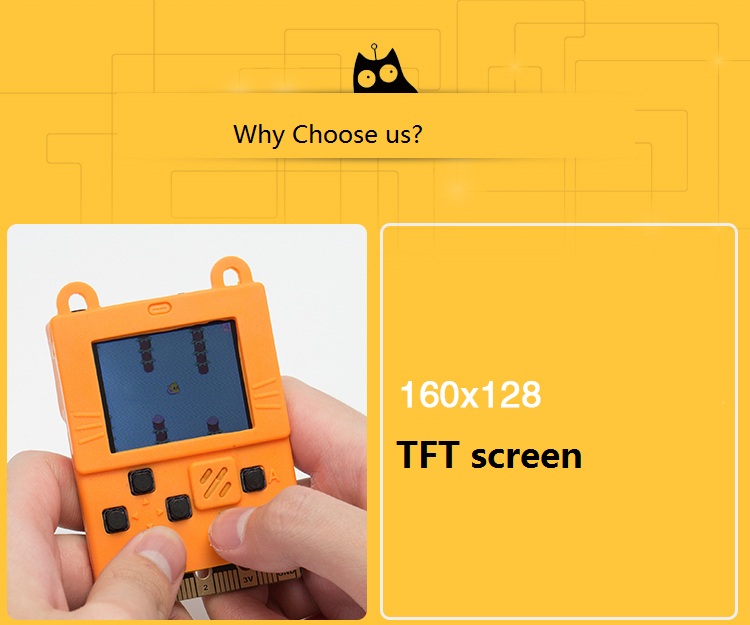

- 160x128 Full color screen
- Support multiple languages

Programming Modes:
- Support for Makecode Arcade graphical programming mode
- Support for microPython programming mode

Suitable For:
- Windows 7 and above
- macOS

Parameters:
- Screen: 160x128 Pixel Full Color TFT Screen
- MCU: STM32F401RET6, 32-bit ARM Cortex M4 core
- Dimensions: 52x76x12(mm)
- Working Voltage: 5V USB Port
- Output Voltage: 3.3V (Max. Output 500mA, Actuator devices such as high current motors are not supported)
- Color: Orange

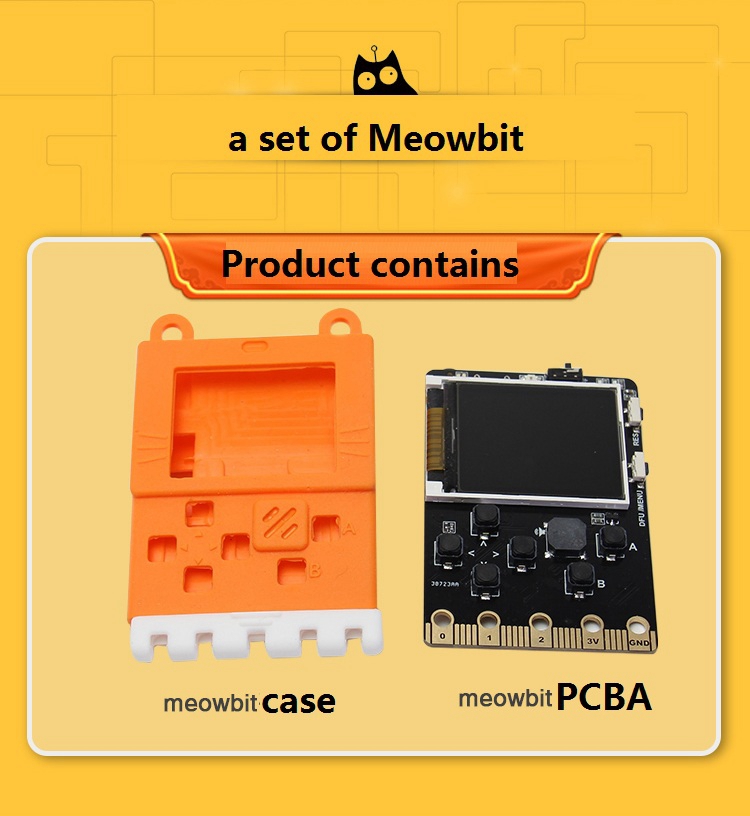

Package Included:
- 1 x Soft Silicone Case
- 1 x Meobit PCBA

Note: Battery is not included in this package.

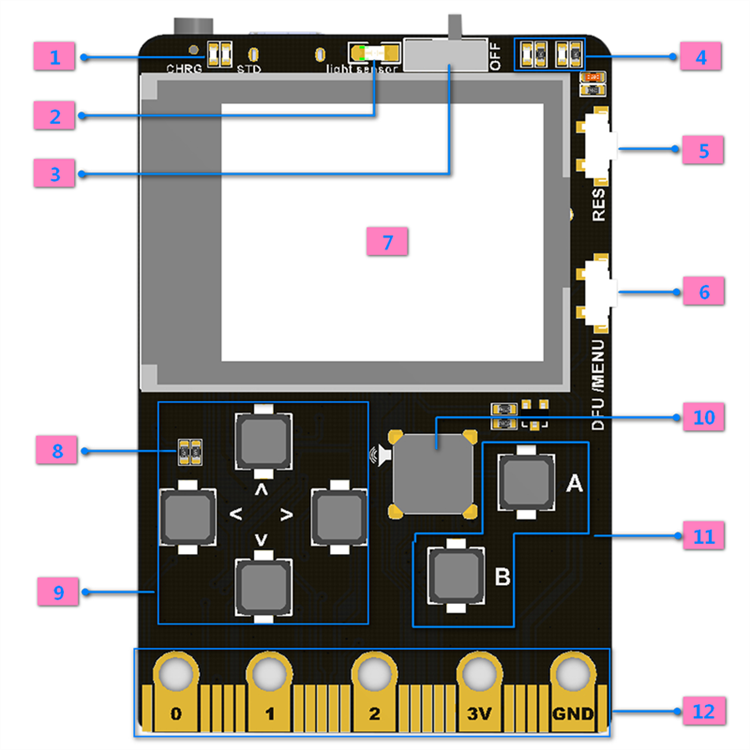

RESOURCES:
1. Charging/working indicator
2. Light sensor
3.Power switch
4. Programmable led x 2
5. Reset
6. DFU mode button(use for toggle firmware or for bring up the menu in Makecode Arcade mode)
7. 160 x 128 TFT color screen
8. Temperature sensor
9. Direction button x 4
10. Buzzer
11. Button A and B x 2
12. Compatible with microbit ( 40 PINs Goldfinger)

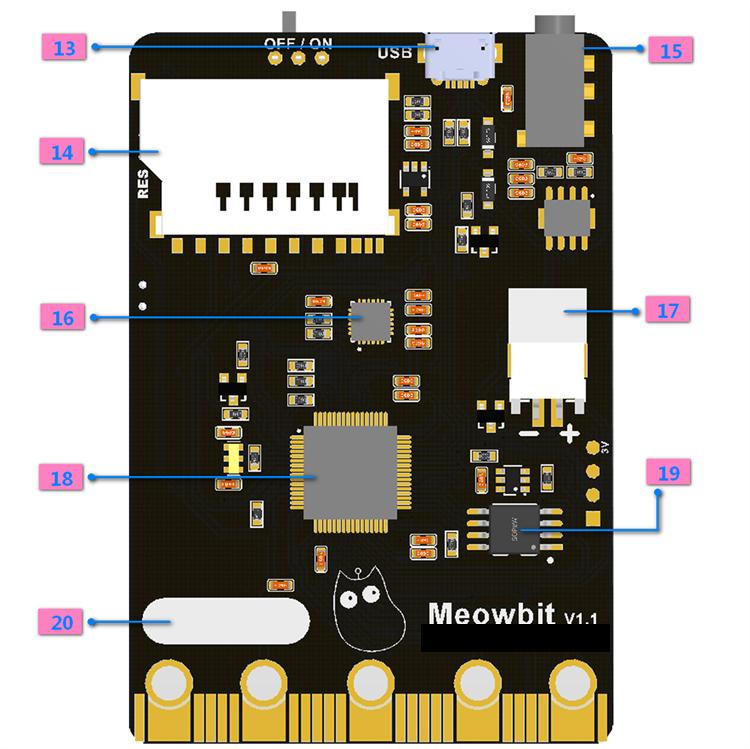

13. USB program download port / charging port
14.  SD card slot(Use for store programs or extend wireless modules)
15.  Multiplayer Connector
16.  mp6050 gyroscope
17.  3.7V lithium battery package interface (Battery is not included)
18.   MCU
19.  2MByte spi-flash (default download unicode character table)
20.  Signature area
