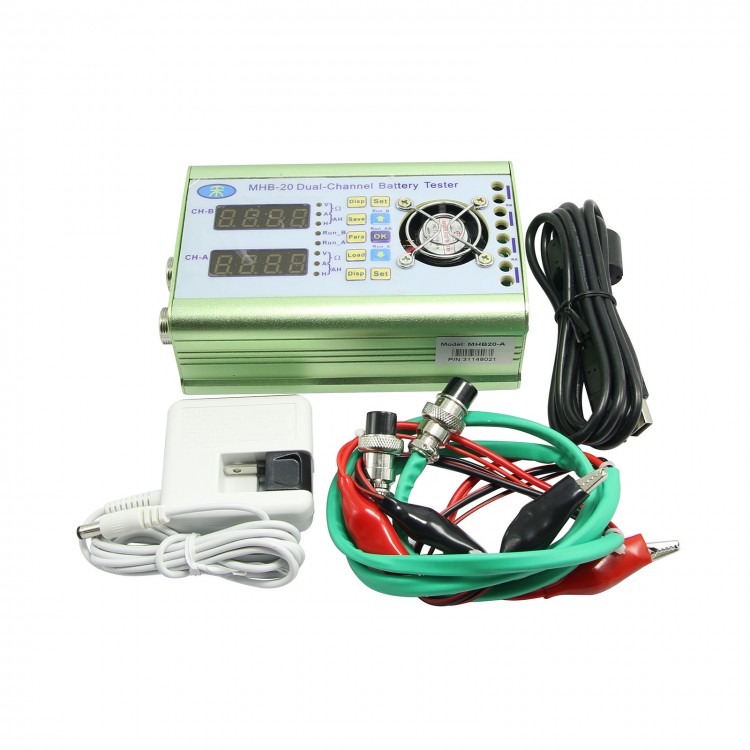

MHB20-A(10-120V) Dual Storage Battery Capacity Tester Voltage 0-20A Current Discharge Internal Resistance Tester
Specs:
- Model: MHB20-A
- Voltage measuring range: 10-120V
- Current measuring range: 0-20A
- Resistor number: (4ohm 800W) x 4
Features:
- Communication function, can online control upper PC software and see discharge curve
- Can detect battery internal resisitor value
- Small volume, light weight, easy to carry
- Main machine and heating elements are seperated from each other , stable performance
- Dual channel detection function can detect two batteries at the same time
- 4 cable measuring, small measuring deviation, more accurate testing results
- LED indicator light and digital tube are combined together, LED light indicates the current display, LED digital tube displays measuring value, LED digital tube display definition can reach as high as 0.01V, 0.001A
- Sound reminder and alarm function when discharge finishes
- It can adapt to different types of battery, can manily measure: lipo, NiMH batteries, nickel - cadmium, polymer, ironic phosphate battery, 18650, lead-acid battery
- Measuring current range is 0.01A-10A automatic constant current, parallel mode is 0.01-20A automatic constant current
Technical Parameters:
- Final discharge voltage: MHB20-A 10v-120v
- Discharge current: voltage < 10V: 0.01-10A
voltage > 10V: 0.4-10A
- Voltage measuring: MHB20-A : 0v-120v
Precision: 0.01V
Deviation: +-0.5%
- Current measuring: range: 0.000A-9.99A
precision: 0.01A
deviation: +-1%
- Battery capacity measuring: precision: within 100AH: 0.01AH, over 100AH: 0.1AH
Max display value: 999.9AH
- Dimension: 145*96*56mm
- Main machine weight: 580g
Package includes:
- MHB-20A main machine x 1
- Power supply adpator x 1
- Data cable x 1
