Micro:bit V2 with Upgraded Processor Built-In Speaker And Microphone Touch Sensitive Logo

Availability: In stock, usually dispatched in 1 business day

  • Price:$43.91
  • Price in reward points: 439 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $43.03 $42.15 $40.84 $39.08 Contact US
Quantity:

micro:bit V2 with Upgraded Processor Built-In Speaker And Microphone Touch Sensitive Logo


NEW MICRO:BIT V2

Built-In Speaker And Microphone
Releasing Your Creativity In The Classroom Through Sound And Touch Sensing

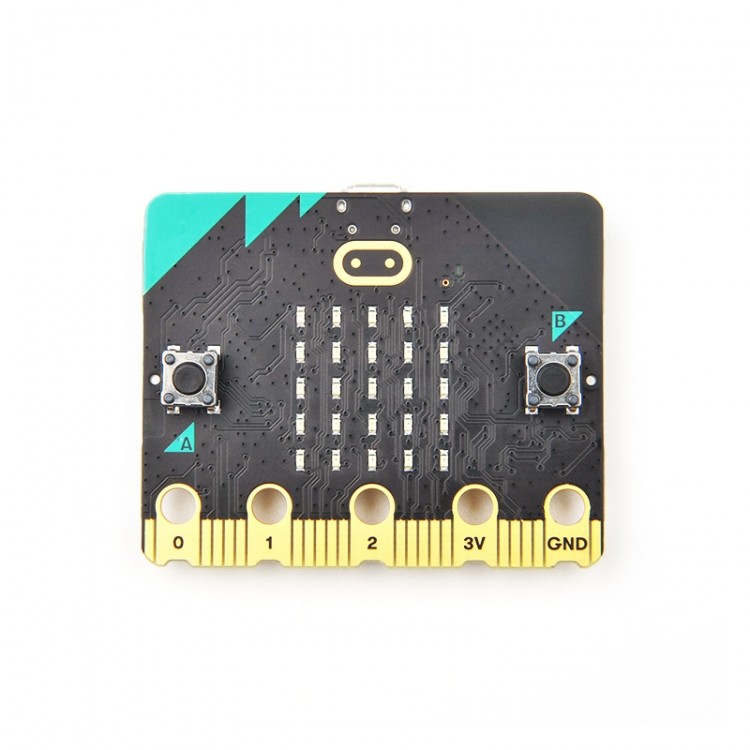

The micro:bit, a pocket-sized (4cm×5cm) ARM development board designed for helping children to learn programming skills, is now updated to the new V2 version. You can use your BBC micro:bit for all sorts of cool creations including digital games, musical instruments, robots, scientific experiments, wearable devices, and more...


The micro:bit V2 adopts faster ARM Cortex-M4 nRF52833 processor, integrates 2.4G Radio/BLE Bluetooth 5.0, and now includes built-in MEMS microphone, speaker, and touch sensitive logo pin, enabling people to get creative more easily through sound and touch sensing. It also offers 5x5 red LED matrix with separate control for each LED, and two programmable user buttons that can be used to control games or pause/skip songs on a playlist. The micro:bit V2 has a motion sensor which combines 3-axis sensing accelerometer, together with magnetometer that can be used as compass or magnetic field strength sensor.

Comparison

ORIGINAL

V2

PROCESSOR

Nordic Semiconductor
nRF51822

Nordic Semiconductor
nRF52833

MEMORY

256KB Flash, 16KB RAM

512KB Flash, 128KB RAM

INTERFACE CHIP

NXP KL26Z, 16KB RAM


NXP KL27Z, 32KB RAM

MICROPHONE

N/A

MEMS microphone and LED indicator

SPEAKER

N/A

On board speaker

TOUCH

N/A

Touch sensitive logo pin

EDGE CONNECTOR

25 pins, 3 dedicated GPIO, PWM, I2C, SPI and ext. power.
3 ring pins for connecting crocodile clips/banana plugs.


25 pins, 4 dedicated GPIO, PWM, I2C, SPI and ext. power.

3 ring pins for connecting crocodile clips/banana plugs. Notched for easier connection

I2C

Shared (mux) I2C bus

Dedicated I2C bus

WIRELESS

2.4GHz Radio/BLE Bluetooth 4.0


2.4GHz Radio/BLE Bluetooth 5.0

POWER

5V via Micro USB port, 3V via edge connector or battery pack

5V via Micro USB port, 3V via edge connector or battery pack
LED Indicator, Power off (push and hold power button)

CURRENT AVAILABLE

90mA available for accessories

200mA available for accessories

MOTION SENSOR

ST LSM 303

SOFTWARE

C++,Makecode,Python,Scratch

SIZE

5cm(w) x 4cm(h)

New Speaker And Microphone

Sense And Response To Sound By The Microphone, Play Tones By The Speaker



How You Clip The Crocodile Clips Now
Resources & Services

Packing List:

  1. micro:bit V2 x1
