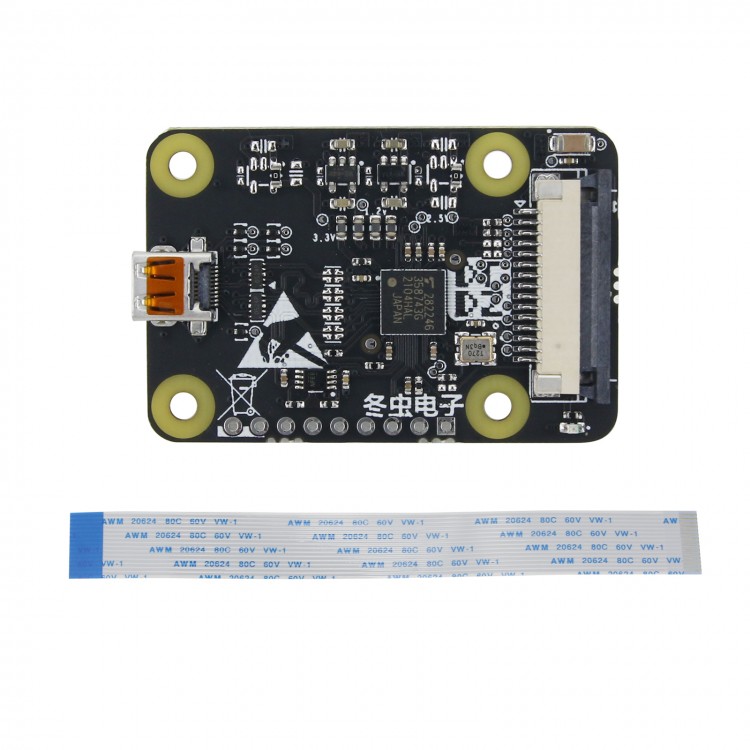

Micro HDMI To CSI2 Board Designed For Raspberry Pi Support 1080P 30FPS MicroHDMI Upgraded HC102
Description:
The board is a special version for Raspberry Pi, other platforms need to solve the driver problem by yourselves. It can reach up to 1080p at 60 on platforms for NVIDIA's Jetson TX1 TX2, Xavier and Nano, which is suitable for customers who cannot meet the requirements for Raspberry Pi.
Function List:
- HDMI interface to CSI-2 interface
- Chip: TC358743XBG
- Support TK1 full-function expansion board
- For Raspberry Pi (for Linux kernel version must be above 4.0)
- Limited by the performance for Raspberry itself, the highest support is 1080p at 30fps

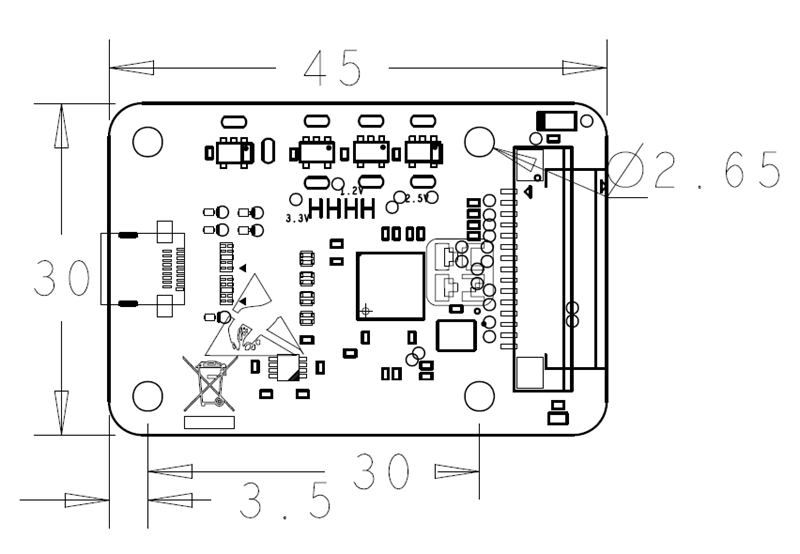

- Physical size: MicroHDMI upgraded version: 45 x 30mm/1.8 x 1.2" (the same width as PI ZERO, the same two holes)
- Net weight: 6.4g
Package Included:
- 1 x Set of Micro HDMI To CSI2 Board
