MicroPhase A7-Lite-200T FPGA Development Board Core Board Onboard USB-JTAG for Xilinx Artix 7

Availability: In stock, usually dispatched in 1 business day

  • Price:$299.43
  • Price in reward points: 2994 Reward Points: 30
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $293.44 $287.45 $278.47 $266.49 Contact US
Quantity:
Buy it now Add cart

You might like

MicroPhase A7-Lite-35T FPGA Development Board Core Board Onboard USB-JTAG for Xilinx Artix 7

MicroPhase A7-Lite-35T FPGA Development Board Core Board Onboard USB-JTAG for Xilinx Artix 7

$124.34

(0)
MicroPhase A7-Lite-100T FPGA Development Board Core Board Onboard USB-JTAG for Xilinx Artix 7

MicroPhase A7-Lite-100T FPGA Development Board Core Board Onboard USB-JTAG for Xilinx Artix 7

$202.07

(0)
A7-Lite FPGA Development Board Core Board Artix 7 XC7A35T with Onboard USB-JTAG Circuit for MicroPhase

A7-Lite FPGA Development Board Core Board Artix 7 XC7A35T with Onboard USB-JTAG Circuit for MicroPhase

$122.56

(0)
MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board Including Type-C Cable for ZYNQ

MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board Including Type-C Cable for ZYNQ

$109.55

(0)
MicroPhase ANTSDR E316-AD9363 Open Source Software Defined Radio Development Board for ZYNQ XC7Z020

MicroPhase ANTSDR E316-AD9363 Open Source Software Defined Radio Development Board for ZYNQ XC7Z020

$893.41

(0)
MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board + 5MP Dual Camera for ZYNQ

MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board + 5MP Dual Camera for ZYNQ

$173.49

(0)
MicroPhase ANTSDR E316-AD9361 Open Source Software Defined Radio Development Board for ZYNQ XC7Z020

MicroPhase ANTSDR E316-AD9361 Open Source Software Defined Radio Development Board for ZYNQ XC7Z020

$1,041.88

(0)
MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board + 4.3" LCD for ZYNQ

MicroPhase Z7-Lite 7010 FPGA Development Board SoC Core Board + 4.3" LCD for ZYNQ

$148.23

(0)

MicroPhase A7-Lite-200T FPGA Development Board Core Board Onboard USB-JTAG for Xilinx Artix 7

Specification:
- Model: A7-Lite-200T
- Main chip: XC7A200T-2FGG4841
- Logic unit: 215360
- DSP: 740
- Block RAM: 13140Kb
- DDR3: 4Gbit, 16Bit, 800Mbps
- USB-JTAG: onboard USB JTAG circuit, it can download programs and simulations online without extra downloader
- QSPI Flash: 128Mbit, program storage for configuring FPGA
- HDMI: one channel HDMI to send (1080P at 60Hz), which can also be configured as HDMI to receive (720P at 60Hz)
- Ethernet: one channel 10/100/1000 adaptive Ethernet. Can be used for network communication and related applications
- EEPROM: 32Kbit I2C EEPROM
- SD Card: one channel Micro SD card socket, support SD mode and SPI mode
- USB-UART: one channel USB UART interface for communication between FPGA and PC
- Clock: 50M
- Button/LEDs: 3-channel user button, 4 LEDs; 2 x User LED, 1 x FPGA configuration status LED, 1 x power indicator LED
- Expansion: 2-channel 50Pin 2.54 space expansion port, 88 x IO, 44 x IO voltage 3.3V, 44 IOs voltage adjustable
- Board size: 80 x 56mm

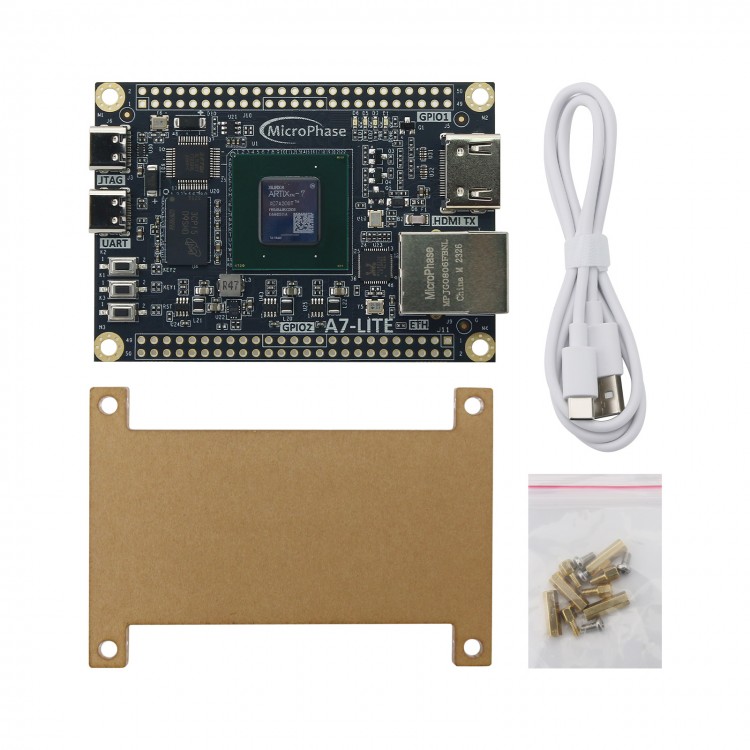

Package Included:
- 1 x FPGA Development Board
- 1 x Type-C Data Cable
- 1 x Protective Acrylic Board
