Microwave 12V RF Coaxial Switch SP6T RF Switch SMA Female Connector DC-18GHz Single Pole 6 Throw Switch

Availability: In stock, usually dispatched in 1 business day

  • Price:$454.01
  • Price in reward points: 4540 Reward Points: 45
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $444.93 $435.85 $422.23 $404.07 Contact US
Quantity:
Buy it now Add cart

You might like

Microwave 24V RF Coaxial Switch SP6T RF Switch SMA Female Connector DC-18GHz Single Pole 6 Throw Switch

Microwave 24V RF Coaxial Switch SP6T RF Switch SMA Female Connector DC-18GHz Single Pole 6 Throw Switch

$454.01

(0)
HMC8038W 0.1-6GHz Wideband RF Switch Module Single Pole Double Throw Switch High Isolation Microwave Switch

HMC8038W 0.1-6GHz Wideband RF Switch Module Single Pole Double Throw Switch High Isolation Microwave Switch

$17.89

(0)
AS179-92LF/1W 100KHz - 3.5GHz RF Switch Module Single Pole Double Throw RF Microwave Switch SMA Female Connector

AS179-92LF/1W 100KHz - 3.5GHz RF Switch Module Single Pole Double Throw RF Microwave Switch SMA Female Connector

$7.98

(0)
HMC8038W1-6G High Quality Wideband RF Switch 50ohm Single Pole Double Throw Switch with SMA Female Connector

HMC8038W1-6G High Quality Wideband RF Switch 50ohm Single Pole Double Throw Switch with SMA Female Connector

$16.00

(0)
QM-SP8T-DT8D DC-8GHz SP8T Switch RF Switch Microwave Switch Single-Pole Eight-Throw Switch Module

QM-SP8T-DT8D DC-8GHz SP8T Switch RF Switch Microwave Switch Single-Pole Eight-Throw Switch Module

$84.62

(0)
Microwave 12V RF Coaxial Relay Mechanical SPDT RF Coaxial Switch SMA-18G with SMA Female Connector

Microwave 12V RF Coaxial Relay Mechanical SPDT RF Coaxial Switch SMA-18G with SMA Female Connector

$92.71

(0)
Microwave 24V RF Coaxial Relay Mechanical SPDT RF Coaxial Switch SMA-18G with SMA Female Connector

Microwave 24V RF Coaxial Relay Mechanical SPDT RF Coaxial Switch SMA-18G with SMA Female Connector

$92.71

(0)
HackRF One Software Defined Radio 1MHz to 6GHz SDR Development Board with Sheel Kit Antenna

HackRF One Software Defined Radio 1MHz to 6GHz SDR Development Board with Sheel Kit Antenna

$199.03

(0)

Microwave 12V RF Coaxial Switch SP6T RF Switch SMA Female Connector DC-18GHz Single Pole 6 Throw Switch

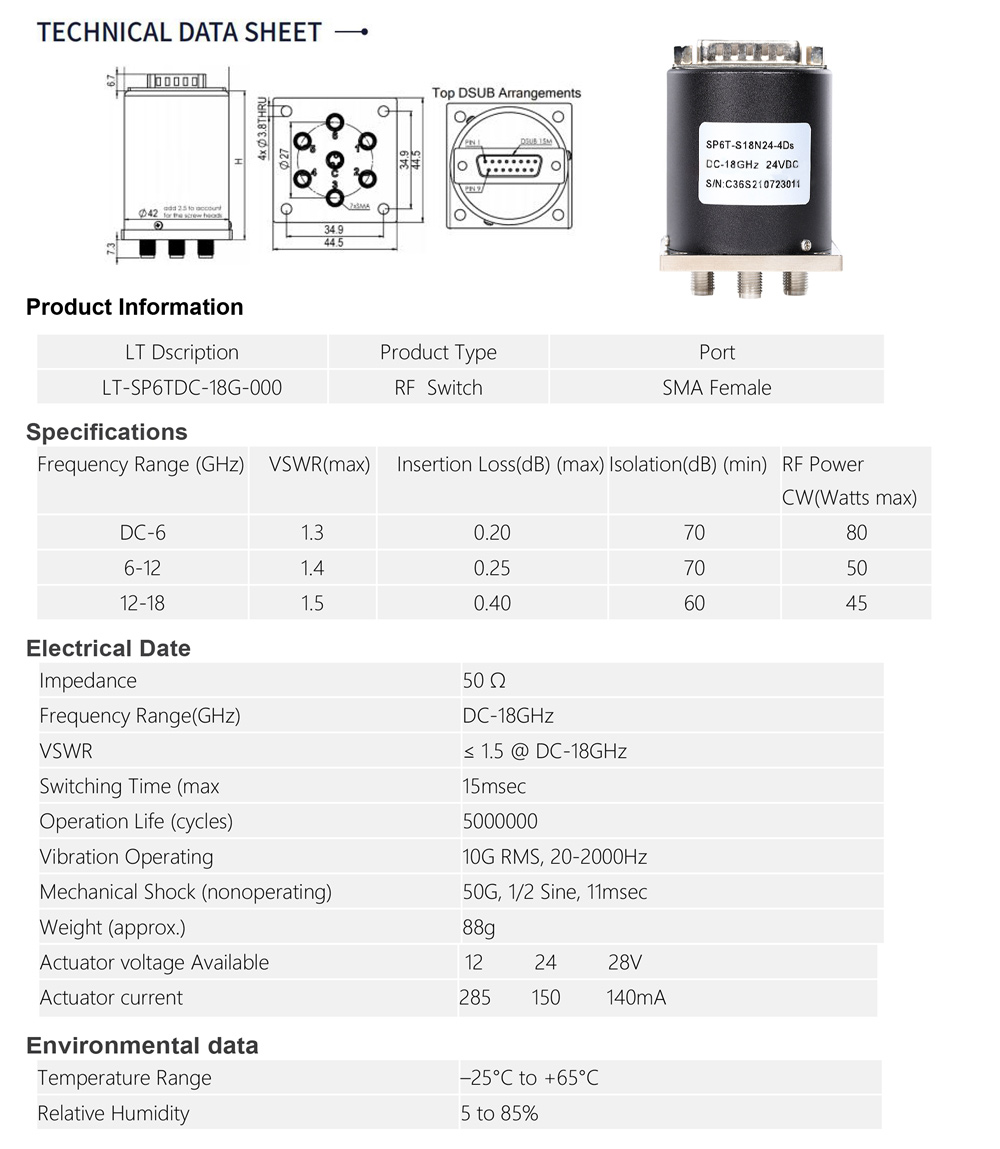

Specification:
- Impedance: 50ohm
- Frequency range (GHz): DC-18GHz
- VSWR: ≤1.5 at DC-18GHz
- Switching time (max): 15msec
- Operation life (cycles): 5000000
- Vibration operating: 10G RMS, 20 - 2000Hz
- Mechanical shock (non-operating): 50G, 1/2 Sine, 11msec
- Weight (approx.): 88g
- Temperature range: -25℃ ~ 65℃
- Relative humidity: 5% ~ 85%

Package Included:
- 1 x 12V RF Coaxial Switch
