Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $35.63 | $34.91 | $33.81 | $32.36 | Contact US |

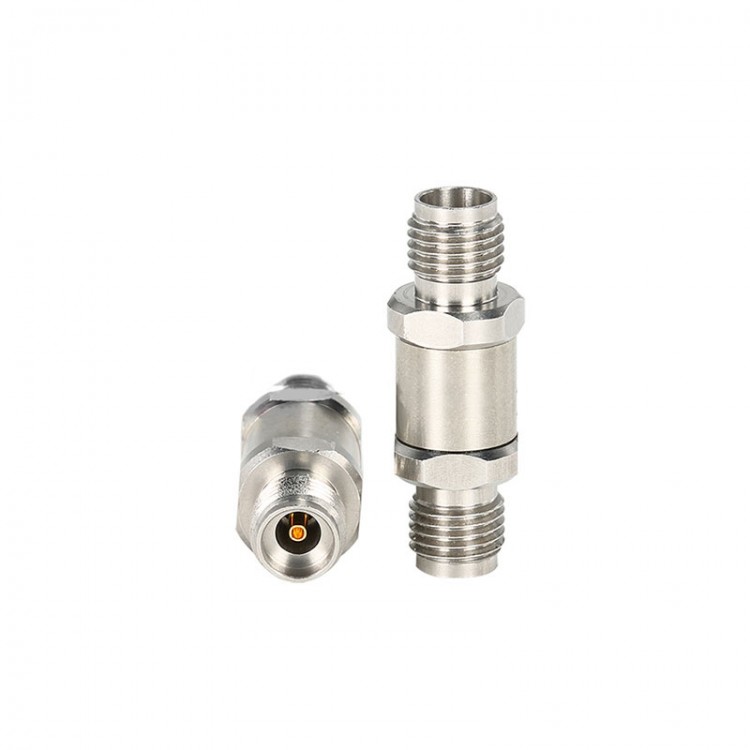

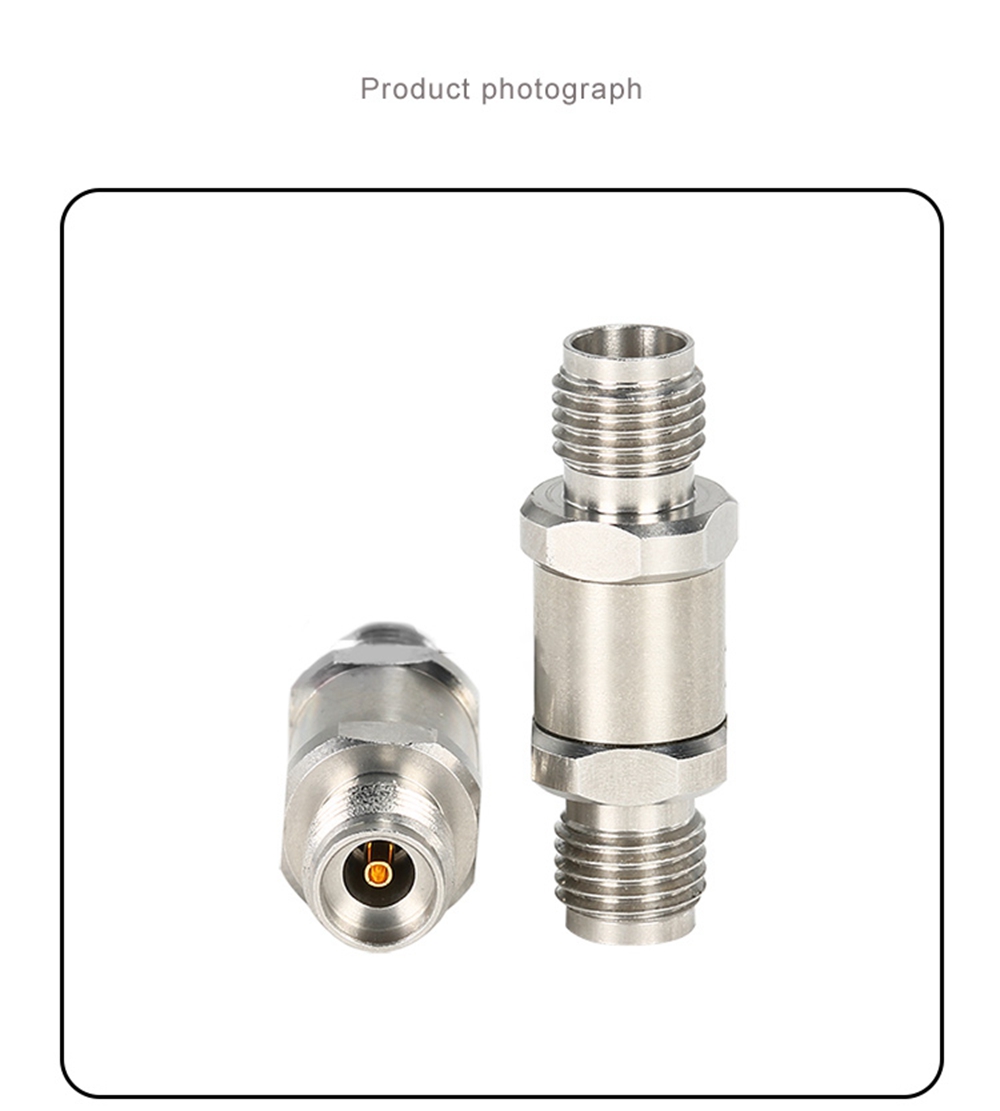

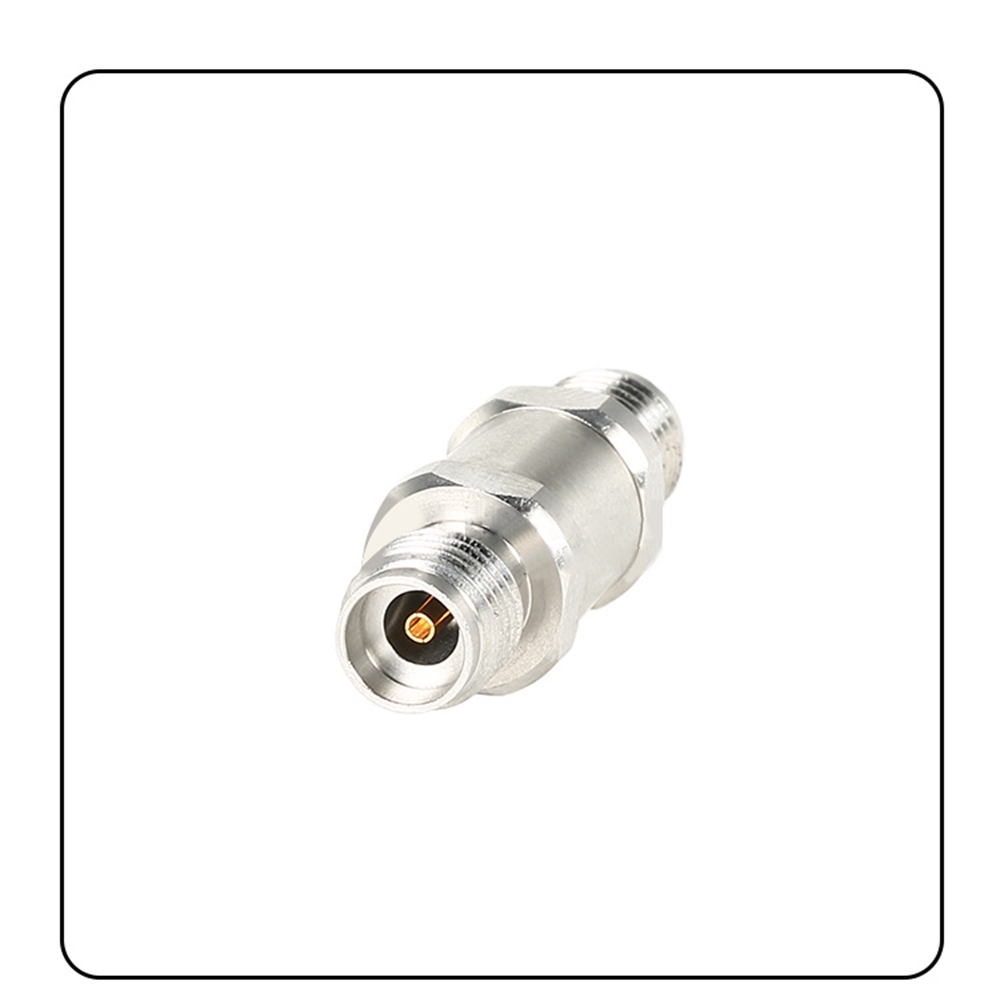

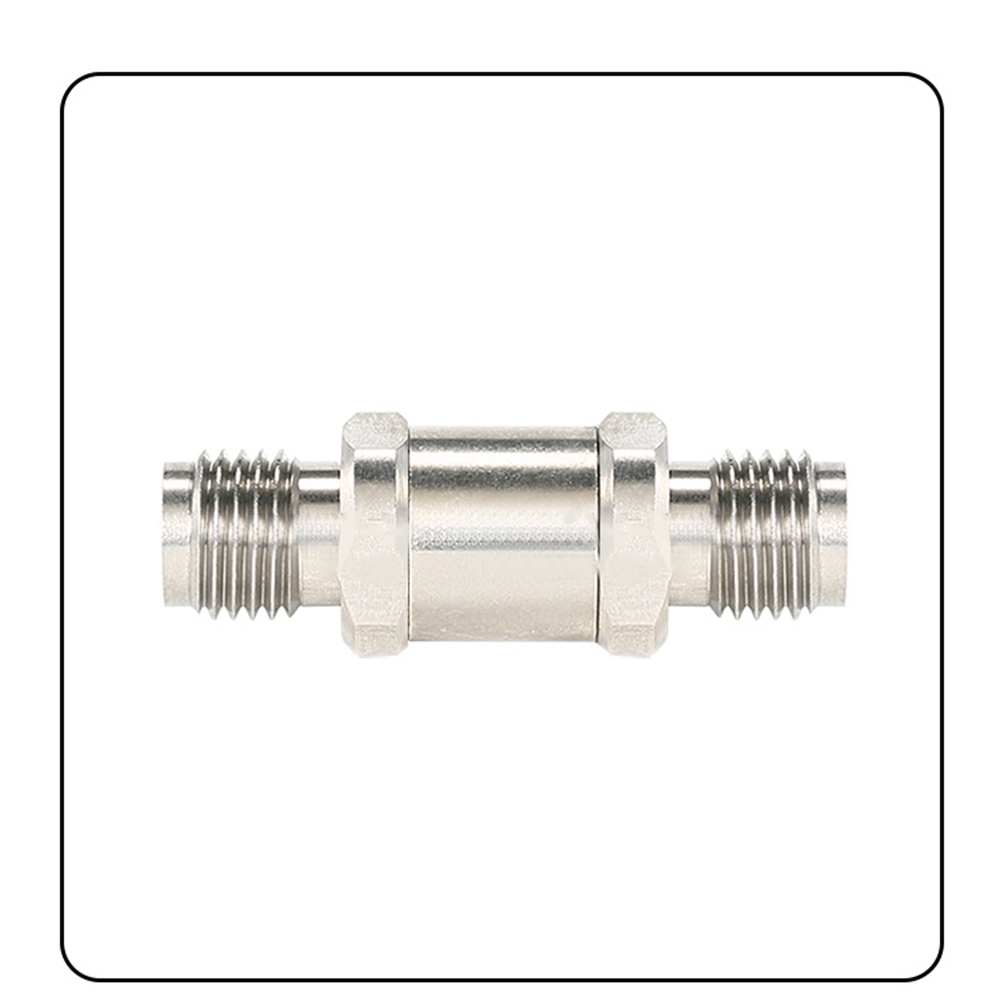

Microwave 2.92mm-JJ Male to Male RF Connector High Frequency Testing RF Adapter 50ohm DC-40GHz

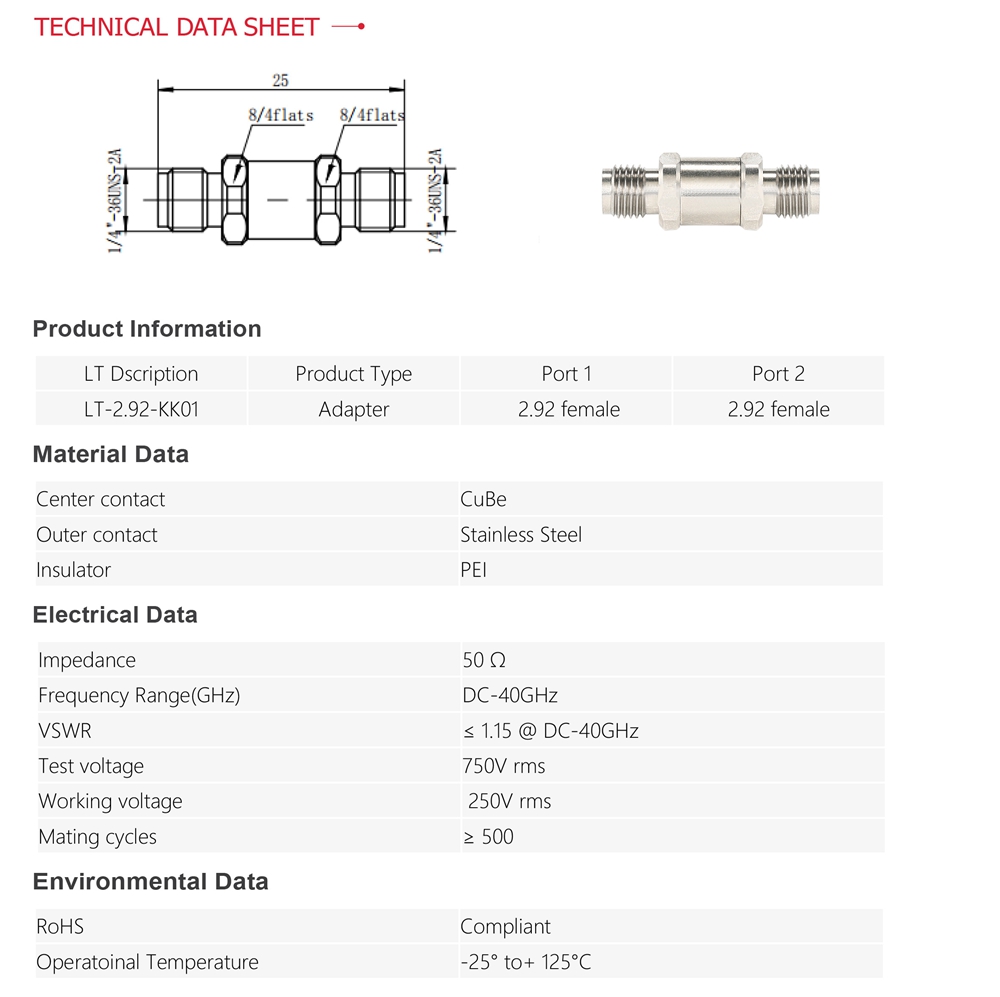

Specification:
- Impedance: 50ohm
- Frequency range (GHz): DC-40GHz

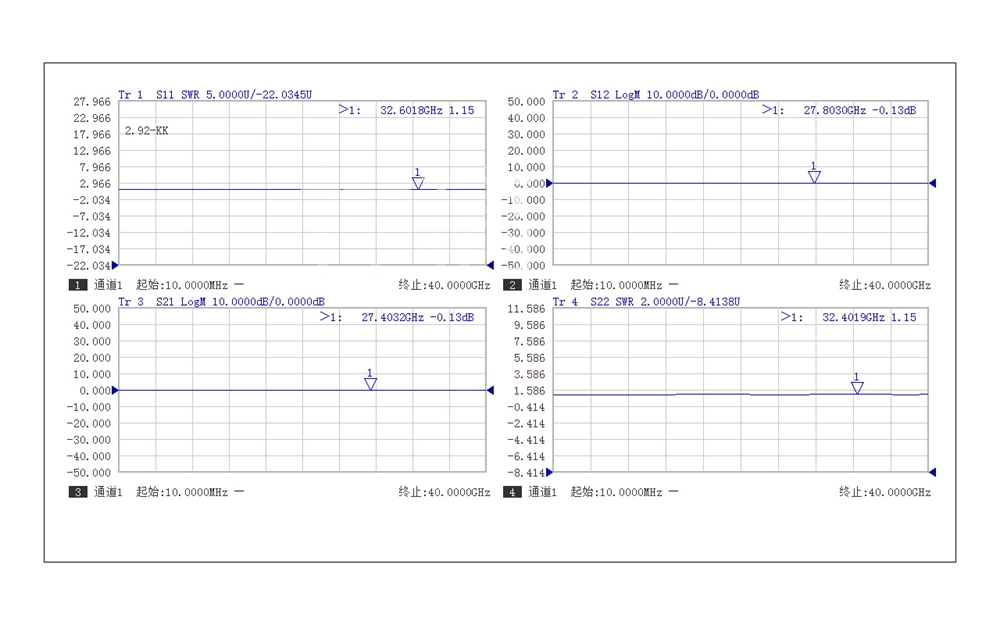

- VSWR: ≤1.15 at DC-40GHz
- Test voltage: 750Vrms
- Working voltage: 250Vrms
- Mating cycles: ≥500
- Operational temperature: -25℃ ~ 125℃
Package Included:
- 1 x 2.92-JJ RF Adapter
