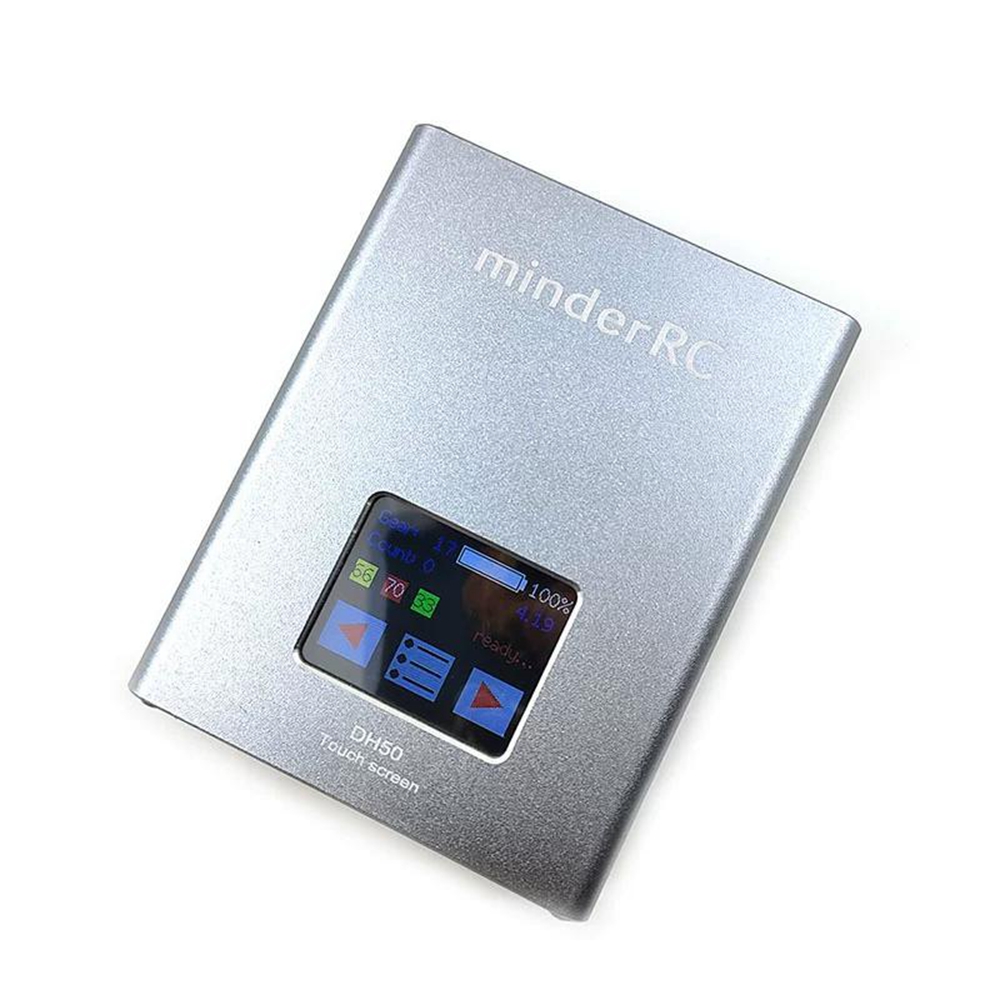

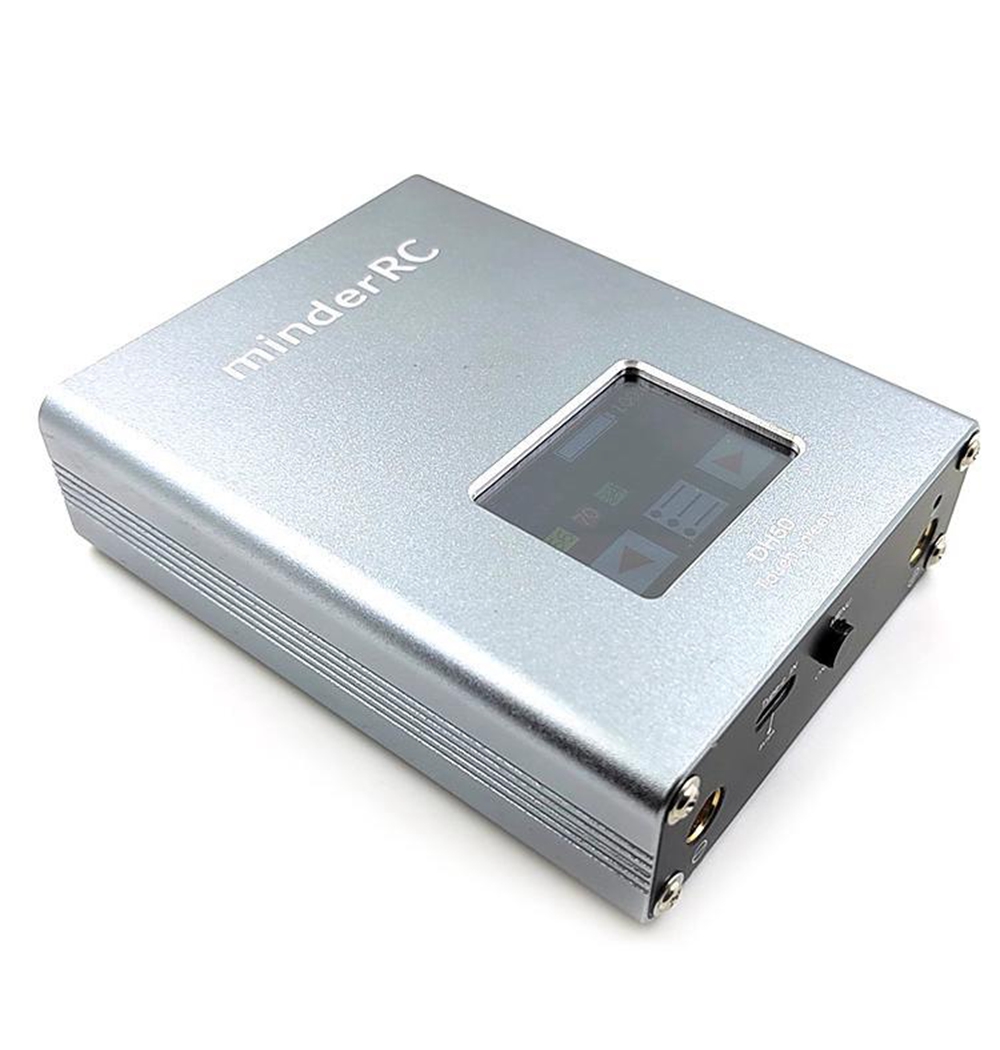

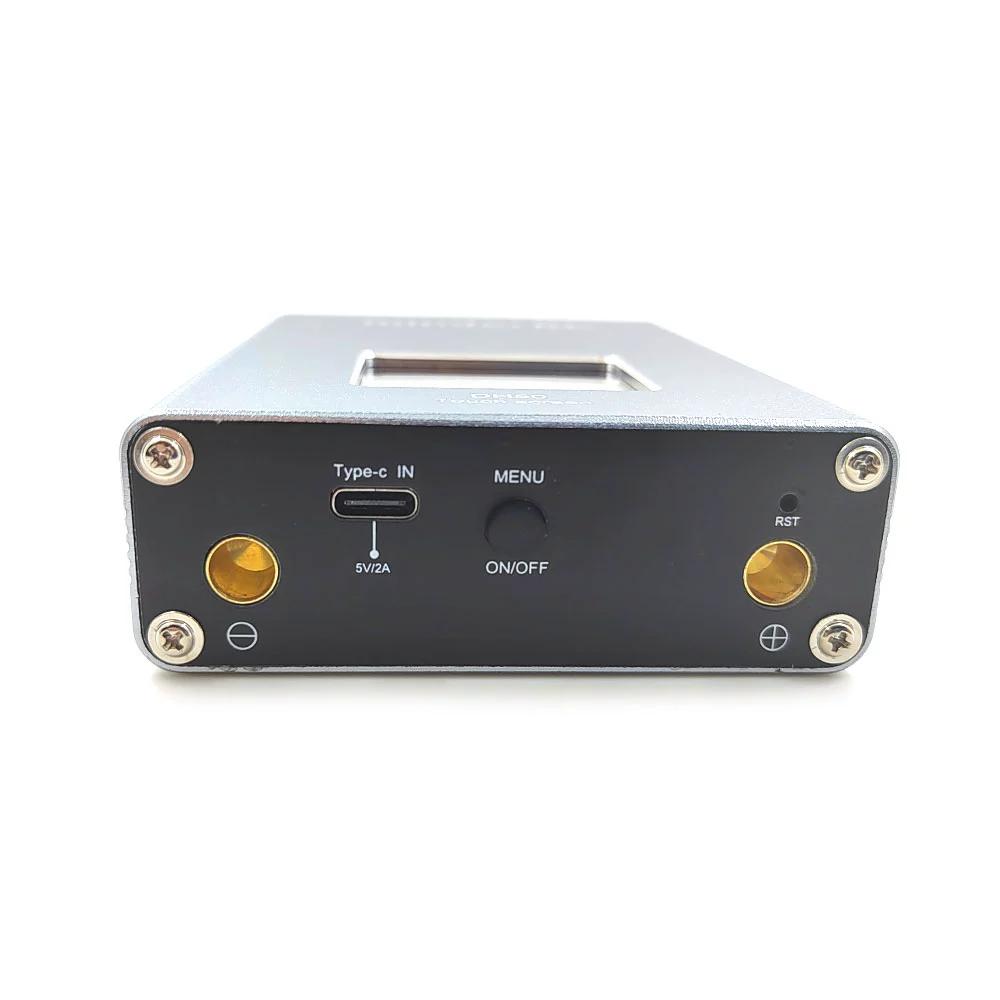

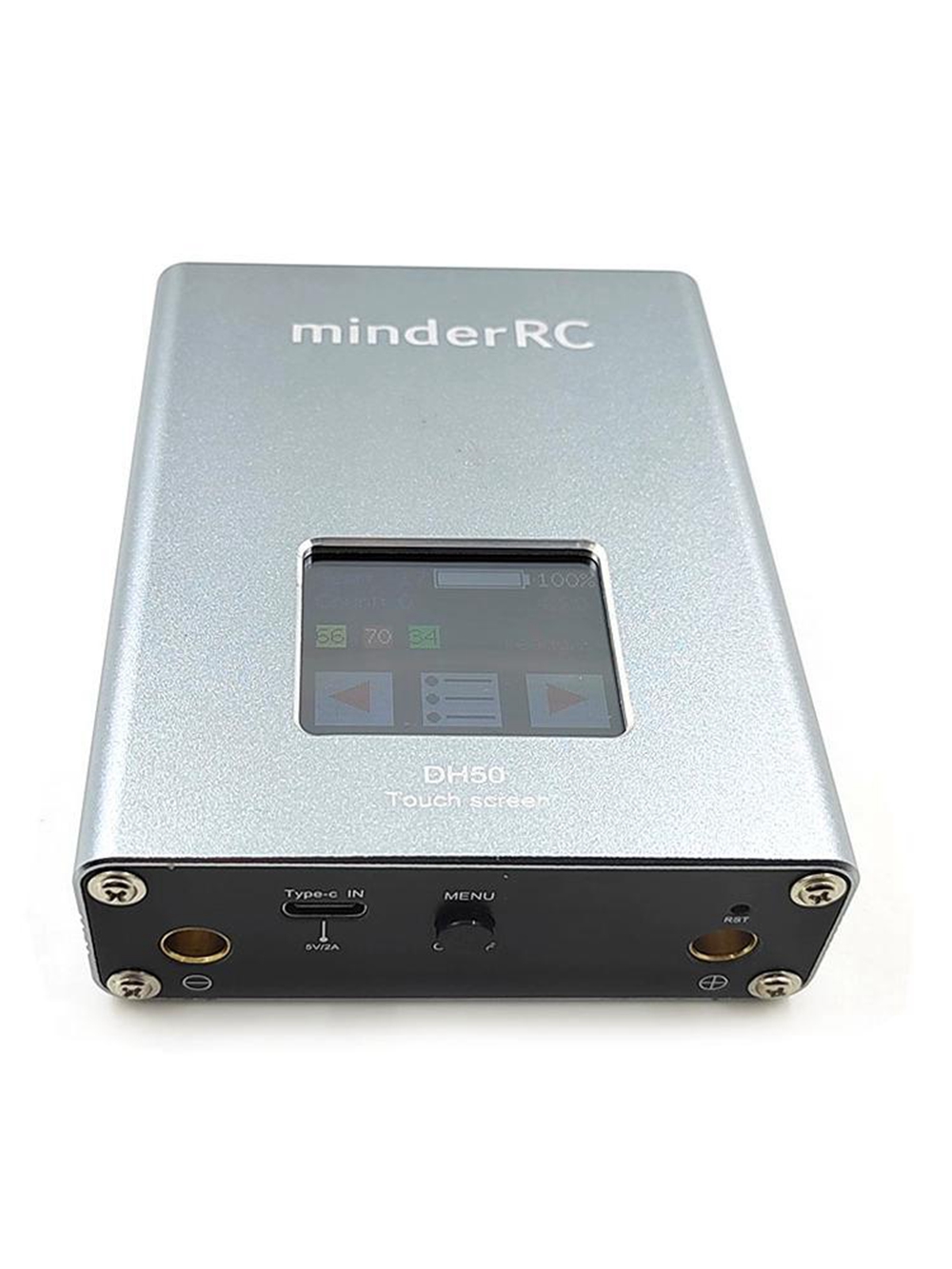

MinderRC DH50 Standard Version Portable Touch Screen Spot Welder 30-level Spot Welding Machine for 0.1-0.2mm Welding
Specification:
- Screen: colorful touch screen
- Material: metal case
- Built-in battery capacity: 5000mAh
- Welding output: max. 650A
- Charging port: Type-C
- Net weight: 290g
- Size: 103 x 83 x 29mm
- Suitable for welding of 0.1-0.2mm Nickel plated sheet

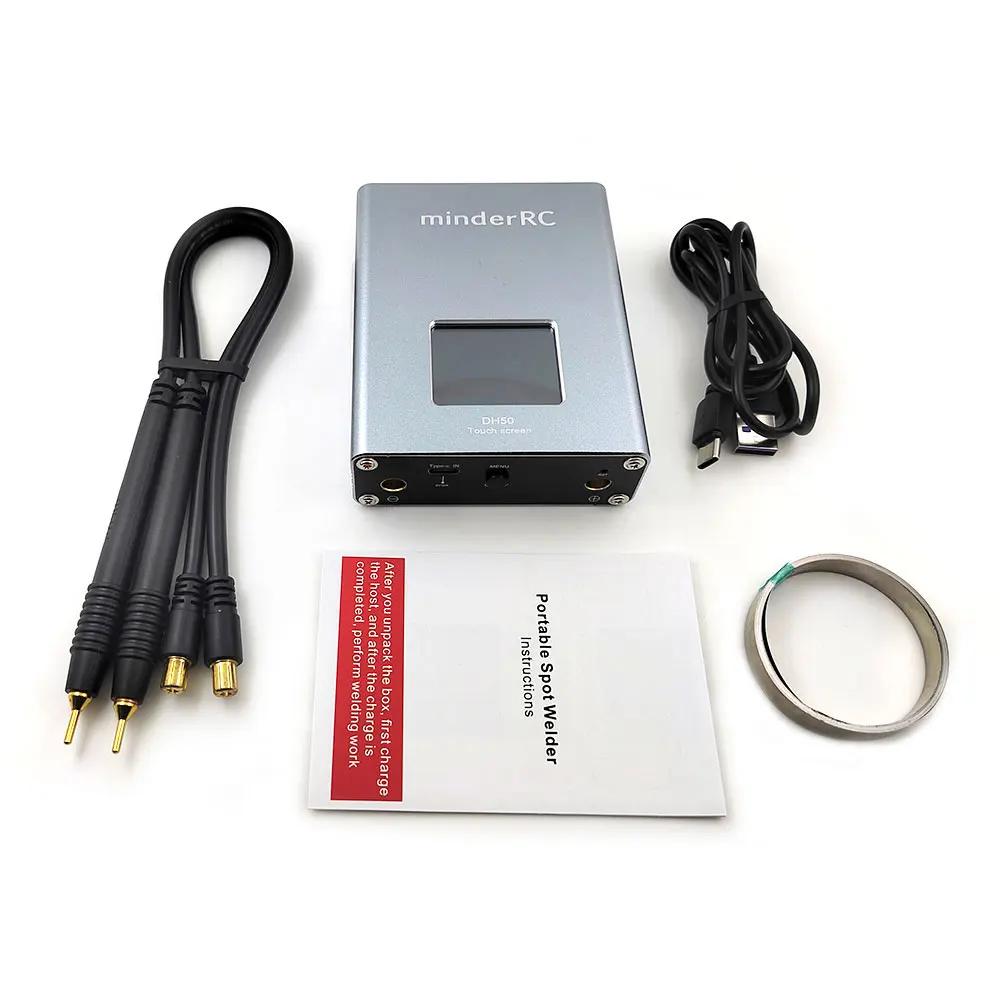

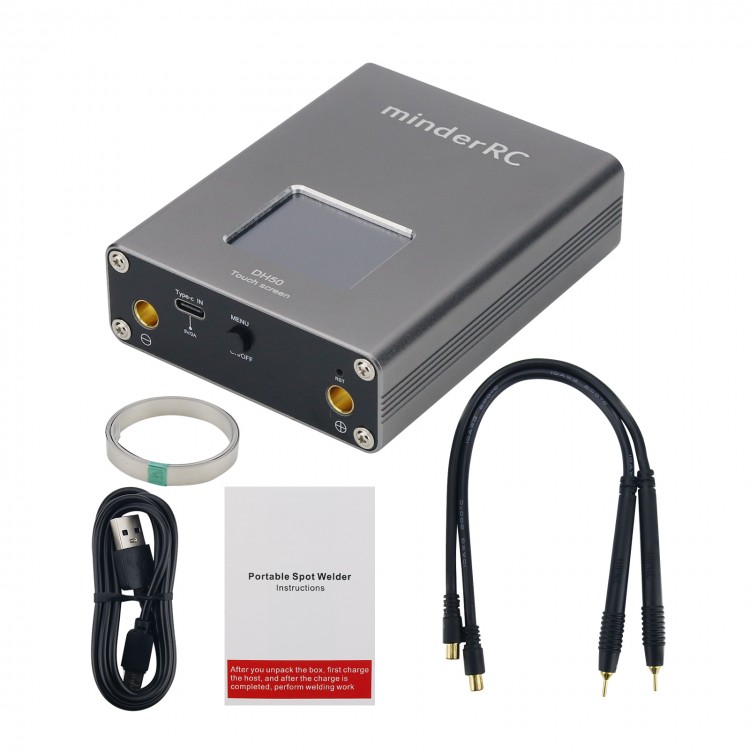

Package Included:
- 1 x Host
- 1 x Pair of Welding Pen
- 1 x Type-C Charging Cable
- 1 x 0.12x8x2mm Nickel Plated Steel Strips
- 1 x User Manual
Precaution for Using:

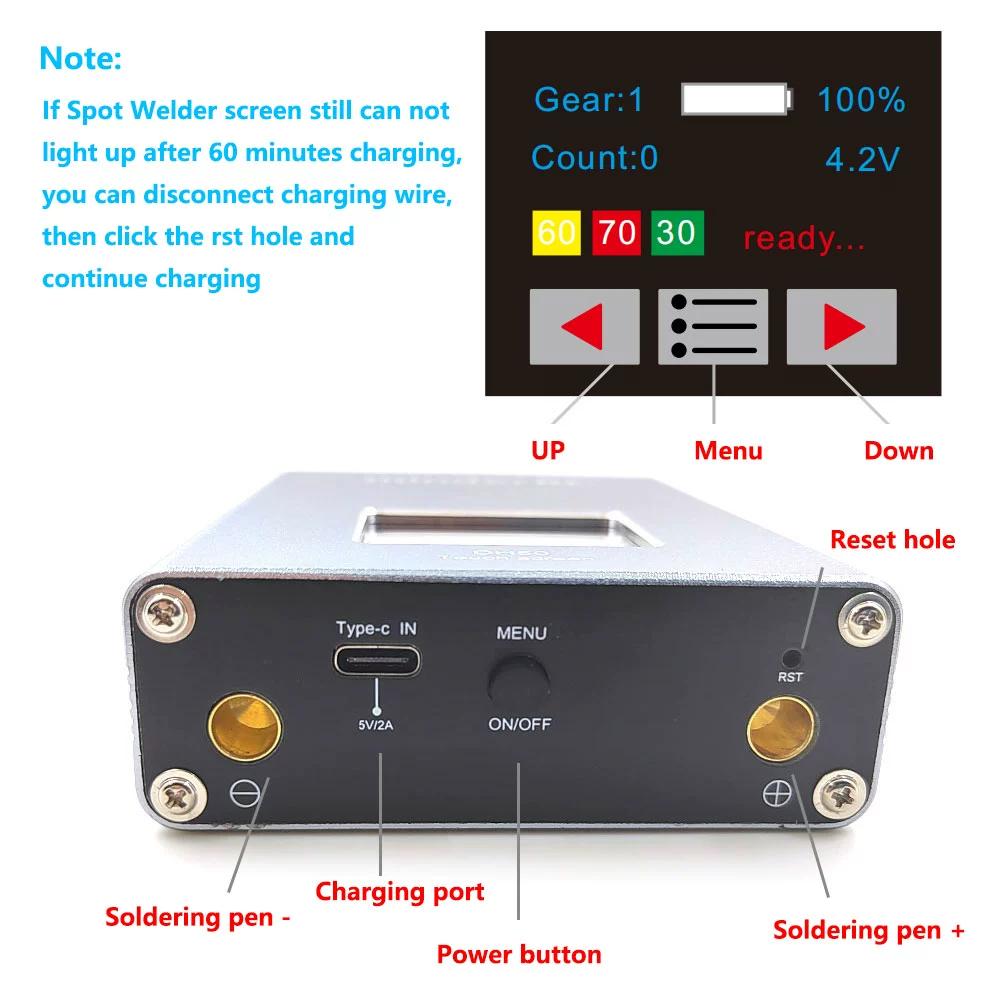

- Please full charging before using.
- If you receive the spot welding machine and find that it can't be turned on or there is no response when inserting the charging wire, it is recommended to charge the spot welder for more than 3 hours, then removing the charging wire and restart the machine (be sure to remove the charging wire before operating)
- Please don't use PD power adapter or PD charging Wire, we suggest directly connect the charging wire coming with spot welder from power adapter USB-A port to spot welder Type C port,and power adapter need 5V current above 2A for fast charging.
- Because PD Power adapter or connect any other voltage current meter can not output a 5V voltage, type C to type C connect will have some charging problem!
How to Welding:
- After spot welder powered on, try different gears from low to high, we suggest use gear 14 or 15 to welding 0.12mm nickel steel strip. If it can be welded firmly, do not increase the power to avoid for MOS tube explosion.
- The thickness of the solder needs be thicker than the nickel strip and make sure the nickel strip and the battery surface should be clean and close contact with each other.
- When welding, press down the soldering pin lightly, it can't be pressed hard, the harder you press, the less solid welding will be. When the spot welder detects the welding pin is placed, start welding.
Precautions for Maintenance:
- The spot-welding machine has a built-in high-rate lithium battery, which is different from the mobile phone battery. The high-rate lithium battery can discharge with high current, so if it is not used for a long time, it may cause the battery voltage too low to shut down, and serious may cause battery damage. We recommend charging it to about 80% for storage every 2-3 months.
