Tags: HDMI2AV
Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $17.63 | $17.27 | $16.73 | $16.01 | Contact US |

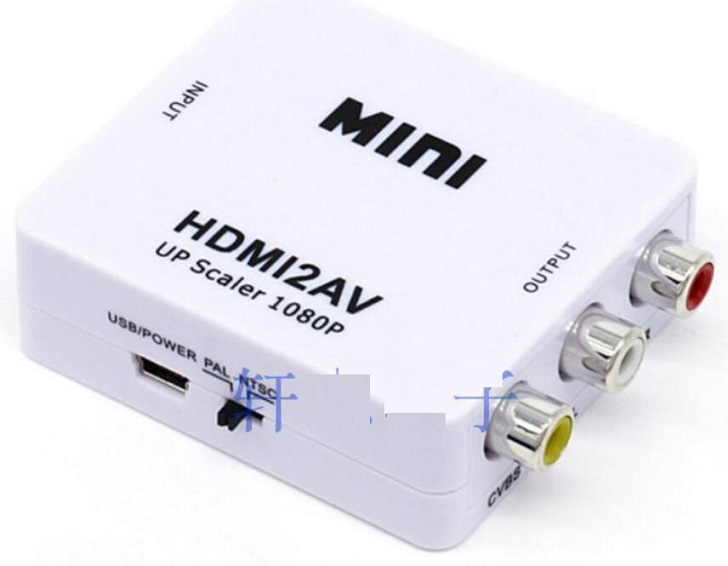

What is HDMI2AV?
- The MINI HDMI to AV signal converter which will convert HDM video signal or audio signal to AV(CVBS)composite video signal and the FL/FR stereo audio signals, while support DVI system sideline signals.
- To help users convert the high quality of the HDMI video signal into normal CVBS signal(standard-definition 480i,576i).So that can play on TV,VHS VCR,DVD recorders,etc and support NTSC and PAL two TV format.
Features:
- No need to install drivers,portable,flexible,plug and play
- Low power,no need power supply
- Output the audio synchronization with video
- High bandwidth capability support 1920x1080@60Hz
- Compatible HDMI 1.3

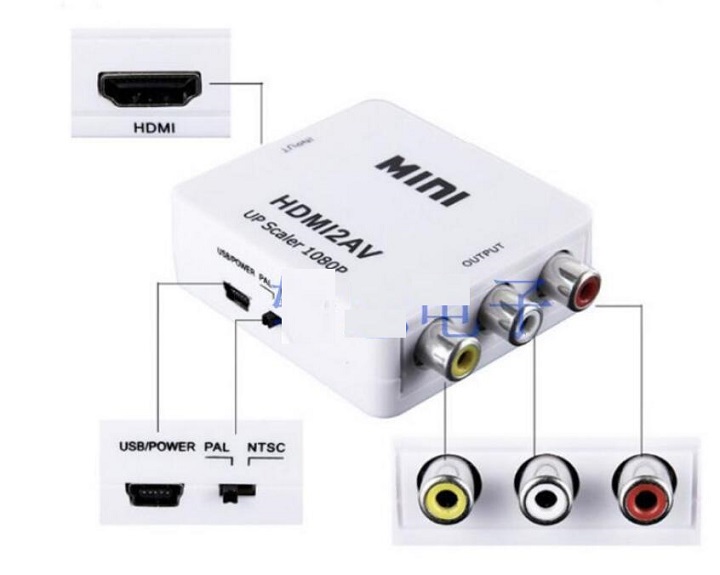

- Input ports: HDMI type female
- Output ports: AV RCA

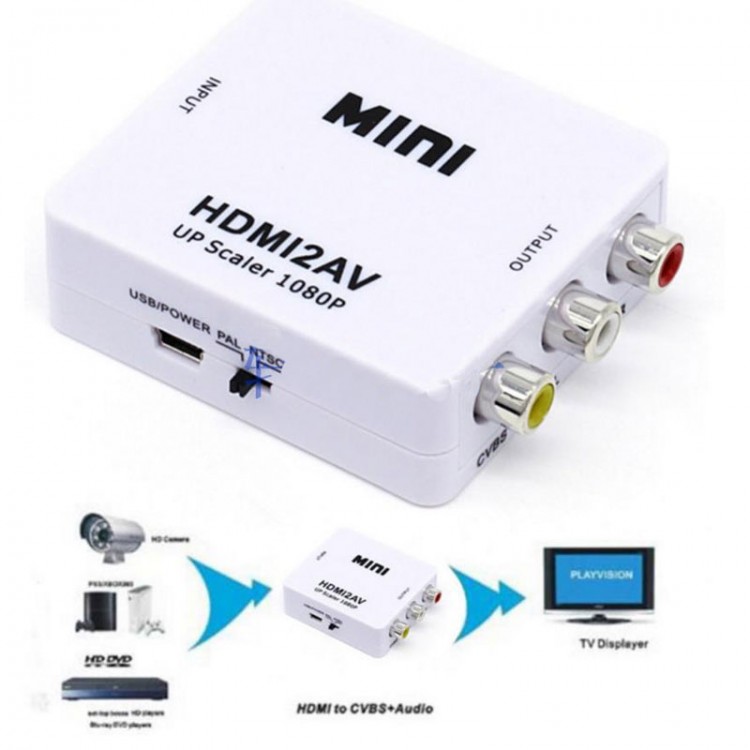

- Application Example:HD camera,HD DVD,Displayer,Earphone,Projection.
Specifications:
- Output ports: 1x RCA (Yellow,White,Red).
- Input ports: 1x HDMI.
- Resolution Support:640x480@60Hz,800x600@60Hz,1024x768@60Hz,1280x720@60Hz,1280x1024@60Hz,1360x768@60Hz,1600x1200@60Hz,1920x1080@60Hz,480i/60Hz,480p/60Hz,576i/60Hz,576p/60Hz,720p50/60Hz,1080I50/60Hz,1080p/60Hz.
- CVBS output:PAL,NTSC_M,and NTSC_J
Package List:

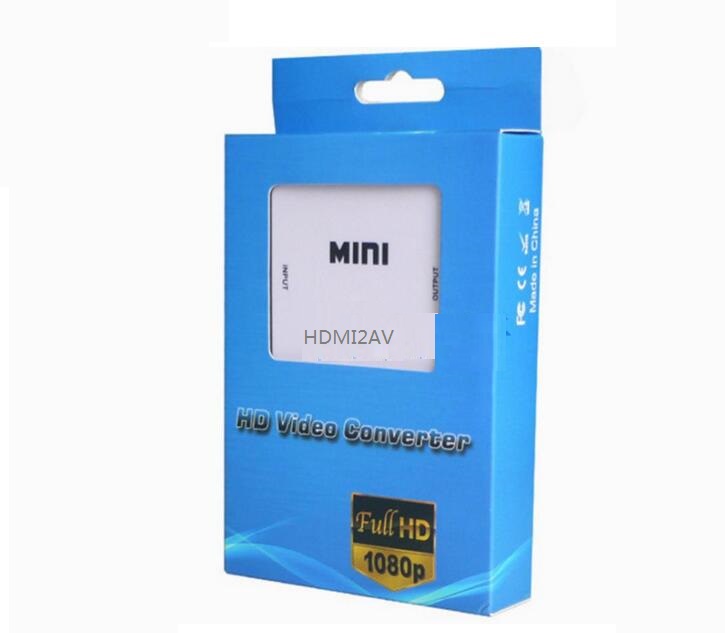

- 1 x Mini HDMI2AV
- 1 x USB Cable
- 1 x User manual
