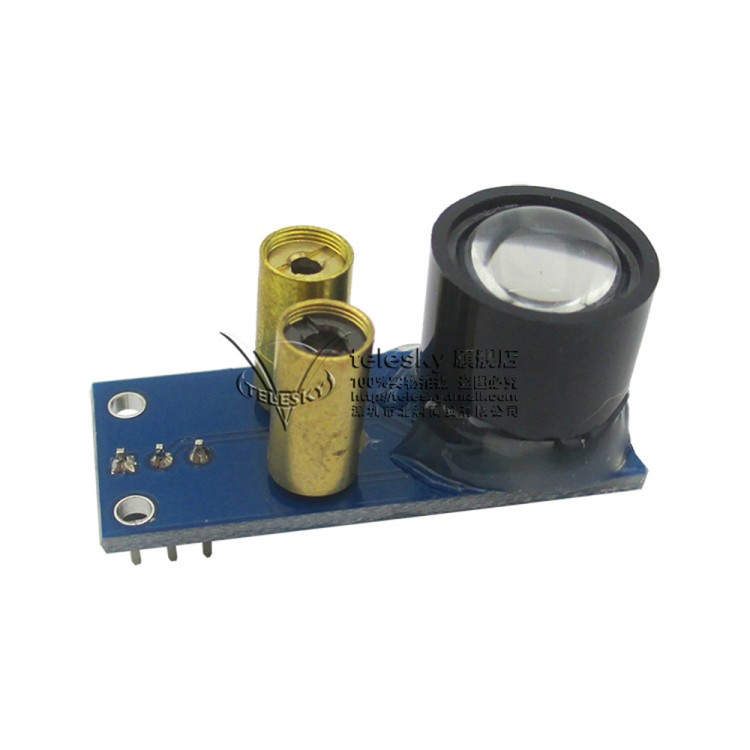

Mini 5V 0.5W Laser Sensor Obstacle Detector for 4-Axis Flight Control Smart Car Detection Switch
Product parameters:
- Power: 5V
- Power consumption: 0.5W
- Environment: -10 C -90 C
Usage:
From the ground angle of 80 degrees to detect black and white line, can reach 1m; from the ground angle of 90 degree for vertical detection, the farthest can reach 3M. (in a different angle, the detection distance is different.Can through the lens focus to develop a suitable detection distance)
This sensor includes: a laser emitting tube (tripod laser head) 2, modulated tube 1, a very high receiver tube, a focusing lens, IC1 months, PCB board 1, a number of capacitors and resistors.
Instructions for use
When the power 5v (Do not exceed 5.3v), use the regulator chip that is seriel regulator for power supply. If with a switching regulator chip,will cause the power supply inference with nout pure power and signal light lights, the sensor may burn severely.
More information: click here
Package included:
- 1 x Laser Sensor
