Mini Ackerman Car Chassis Unassembled Hall Encoder w/ 12V Motor Reduction Ratio 1:30 Digital Servo

Availability: In stock, usually dispatched in 1 business day

  • Price:$68.27
  • Price in reward points: 683 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $66.90 $65.54 $63.49 $60.76 Contact US
Quantity:

Mini Ackerman Car Chassis Unassembled Hall Encoder w/ 12V Motor Reduction Ratio 1:30 Digital Servo

Description:

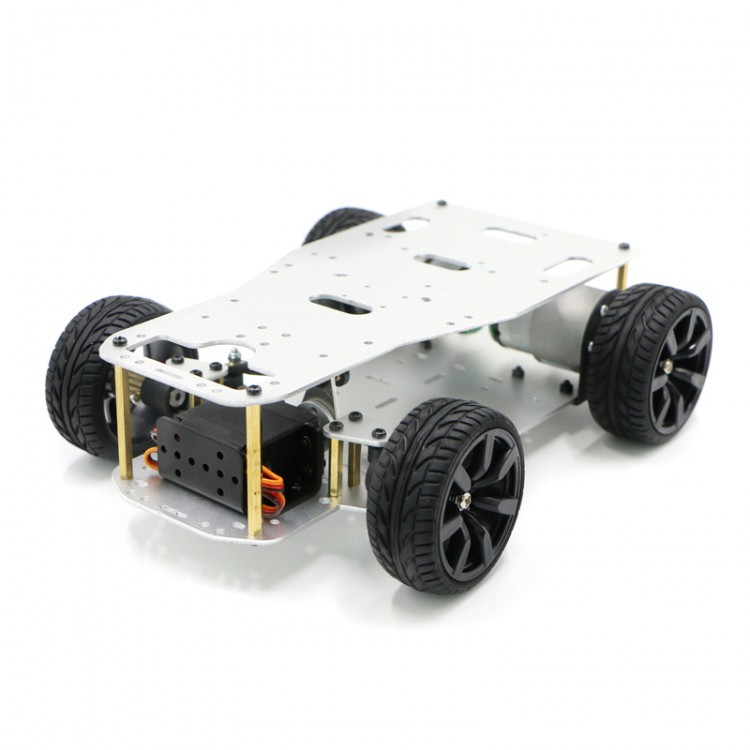

Smart Car Chassis Kit adopts a mechanism in which the rear wheels drive the front wheels to turn. It is similar to the steering mechanism of professional racing car models, and the rear wheels can actively differential. Compared with  banana motor drive and acrylic steering mechanism used by other manufacturers, its performance has been greatly improved. Aluminum alloy bottom plate improves the strength of the car body. The motor also has an encoder, which can realize closed-loop control. Aluminum alloy plates can be replaced and it can be used a balance trolley.

The car body is upgraded to aluminum alloy, the overall stability is greatly improved, and the design is more reasonable.

Features:

- With encoder
- Aluminum alloy bottom plate
- Steering gear
- Dual motors
- Provide video tutorials
- Provide vehicle code
- Variable structure: Under normal circumstances, if you need to debug the positive Ackerman structure, the anti-Ackerman structure, and the differential car, you may need to purchase 3 cars at the same time. Our trolley can realize the functions of the above three trolleys at the same time through the compatibility and replacement of structure and code.
- Provide the right to use original materials: provide the following original materials download links after purchase, and users enjoy the privilege of free lifetime update of this product information. Provide new motor PID video tutorials, related development notes, and related source code
- Provide original data of the host computer: monitor various parameters in the form of waveforms and graphs. It is an ideal choice for in-depth analysis of PID, balance trolley, inverted pendulum, robot, etc. All data can be saved in the form of text or table, and sent to the software for Matlab for further analysis


Attention:
1. The recommended power supply range for the motor with 12V rated voltage is between 11~16V, and 12V is the best.
2. The recommended power supply range of 8V rated voltage motor is between 7~13V, 8V is the best.
3. Generally, DIY users can consider a motor with a rated voltage of 8V and use a 3s battery (not included) for power supply. The speed and torque will increase, so that the power can reach 7W, but it will also bring a certain amount of heat.
4. For motors with 8V rated voltage because of the higher low voltage current, industrial use considers the stability, it is recommended to use 12V rated voltage and use 12V power supply.


Encoder Parameters:
Attention:
1. The encoder has a pull-up output. By default, it is pulled up to the power supply VCC pin, which can be directly collected by MCU.
2. Photoelectric encoder is 38 times the accuracy of Hall encoder. The photoelectric encoder has high precision and performs well at low speeds. The Hall encoder has better stability and is sufficient under normal circumstances.



Digital Servo:
- Servo: HWZ020
- Maximum angle: 180°
- Voltage: 4.8-7.4V
- Torque: 15.3kg.cm(5V); 20kg.cm(6.5V)
- Reaction speed: 0.14sec/60°
- Servo type: digital servo
- Gear: metal gear
- N.W.: 59.6g
- Working dead zone: 3us
- Standby current: 5ma
- Locked-rotor current: 2A
- Recommendations for use: Digital servos have better accuracy, torque, and convenient life. It is recommended to use digital servos for high-demand occasions. Generally, DIY users can choose analog servos.
- Wiring instructions: red wire-positive; brown wire-negative; orange wire-signal wire





Packing List:
- 2 x Geared motors with encoder
- 1 x High torque servo
- 1 x Metal servo horn
- 1 x Aluminum alloy servo bracket
- 4 x 65mm rubber tires
- 1 x Aluminum alloy base plate
- 4 x Front wheel bearings
- 2 x Steering cups
- 4 x Ball tie rods
- 4 x Couplings
- 2 x 37 Motor brackets
- 1 x Upper aluminum alloy plate
- Several copper pillars and screws

Note:
- Assembling is needed, providing assembly materials.
- STM32 system board and battery (3S 3500mah recommended) are not included.
- Pictures are for reference only. Please check the packing list carefully before purchasing.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
- This is the chassis kit. Kit with electric controller is optional. If it is needed, please contact us.
