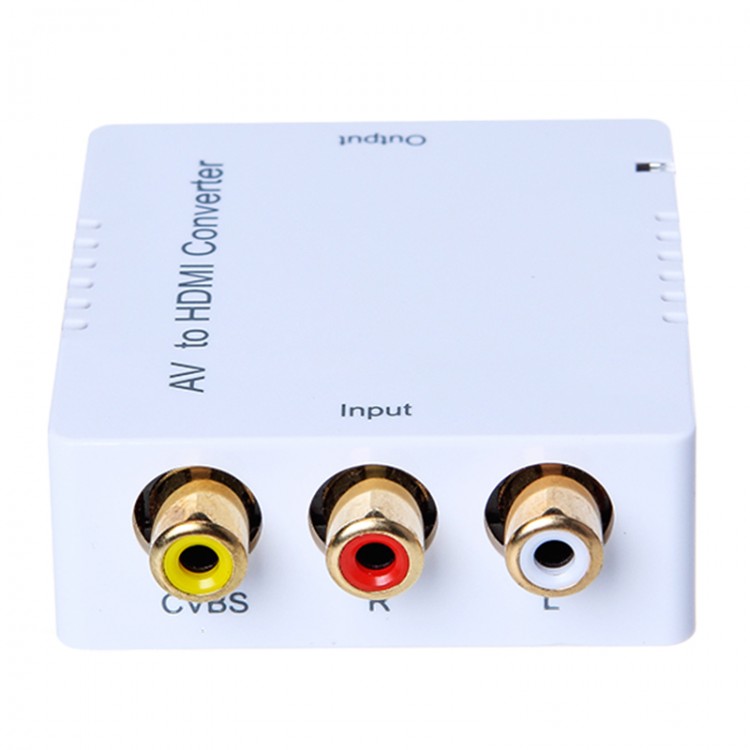

Mini CE-LINK DC 5V AV to HDMI Converter AV to HD RCA Analog to HDMI Switch

Mini CE-LINK DC 5V AV to HDMI Converter AV to HD RCA Analog to HDMI Switch

Product description:
- Name: AV to HDMI Converter (Mini)
- Model: 2377
- Color: White
- Input signal: AV
- The output video signal: HDMI 720P / 1080P
- Video zoom Bandwidth: 1.65Gbps / 165MHz
- Vertical frequency range: 50 / 60Hz
- External power supply: 5V DC 2A
- Maximum power consumption: 1.4W
- Operating temperature: 0 C to 70 C
- Humidity: 10% to 85% RH (non-crystalline)
- Storage temperature: -10 C to 8 C
- Storage humidity: 5% to 90% RH (non-crystalline)
- CB: FCC, CE
- Size: 60 * 56 * 21mm

Features:
1, the video signal up to 1080P HDTV;
2, automatic checking (audio delay);
3, to ensure the synchronization of audio and video;
4, HDMI output: 720p / 1080p @ 50Hz, 720p / 1080p @ 60Hz;
5, combined with HDMI with audio;
6, the video input format: NTSC3.58 / PAL (Auto).
7, by using the HDMI-DVI adapter, compatible with DVI.

Uses:
Suitable for ordinary VCD, DVD audio signal into HDMI signal, connected to the HDMI TV, and improve long-distance transmission of AV interference problems. It is an analog AV signals into HDMI signals and allows users to enjoy its large and high-definition images on a TV special devices. He raised an interlaced video signal into 720P / 1080P progressive signal.

Use Process:
1, the AV cables are connected to equipment and converters (AV cable is not included, please purchase);
2, the HDMI cable connected converter and display device (This product does not contain HDMI cable, sold separately);
3, the converter is connected to the DC 5V power supply, and plug in the channel (This product includes power supply);
4, connect all power transferred to the corresponding channel display devices, the conversion is started.

Package included:
- 1 x CE-LINK AV to HDMI Converter
- 1 x DC 5V power daapter
- 1 x User guide
