For Frsky D8 Receiver 2.4G 8CH SBUS/PPM Output Support for Tinywhoop Toothpick RC FPV Racing Drone
Description:

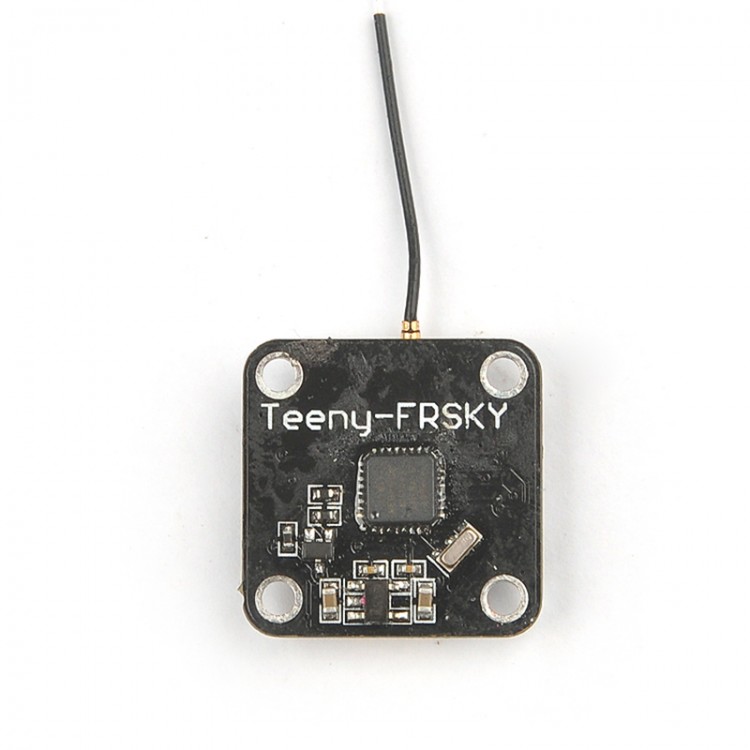

The mini Frsky D8 receiver weighs only 1.2g, suitable for Tinywhoop or Toothpick, supports SBUS or PPM signal output.
Specification:
Item Name: Teeny Frsky Receiver
Frequency range: 2.403-2.479Ghz
Channels: 8CH
Work mode: D8 Mode
Work voltage: +5V
Output: SBUS/PPM switchable
Antenna length: 50mm
No ground interference ( transmitting and receiving 1m from the ground): >200m
Working current: 80mA
Dimensions: 20*20*5mm
Weight: 1.2g
Compatibility: compatible with FRSKY ACCST, X9D(Plus)DJT/DFT/DHT
Binding Procedure:
1. Power for the receiver when pressing the Bind button. The blue LED on the receiver will always be on, which means the receiver is in binding mode,
2. Release the Bind button, turn on the remote controller that supports Frsky D8 or a remote controller equipped with a receiver that supports D8 mode, and make the remote controller enter the frequency binding mode. After the binding is successful, the blue LED on the receiver will turn off.

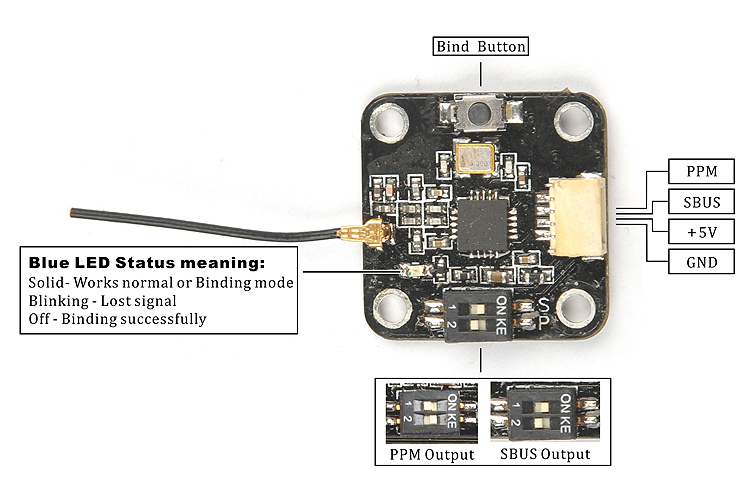

Pin-out Diagram:
Package List:
1 x Receiver
