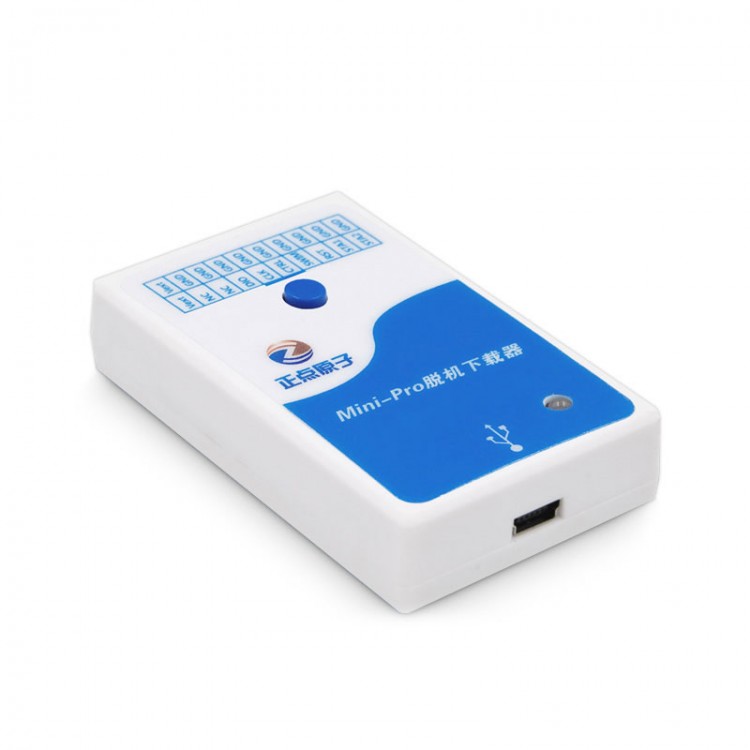

Mini-Pro Chip Programmer Offline Programmer Kit Offline Downloader For Nuvoton N76E MS51 And ML51

Availability: In stock, usually dispatched in 1 business day

  • Price:$59.14
  • Price in reward points: 591 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $57.96 $56.77 $55.00 $52.63 Contact US
Quantity:

Mini-Pro Chip Programmer Offline Programmer Kit Offline Downloader For Nuvoton N76E MS51 And ML51

Description:

Historically, when there was mass production, your computer downloaded programs to the products through a JTAG/SWD downloader or a serial port. This process was inefficient and troublesome.

Now Mini-Pro downloads programs at once, and then downloads it to multiple products, featuring fast speed and high efficiency. No computer is required. It is your ideal assistant in mass production.

Features:
- Mini-Pro offline programming tool kit
- Fuels mass production and has changed the traditional PC programming
- More than 30 kinds of functions
- With buzzer for prompt
- Support multiple chips
- Fast download speed. It has carried out multiple optimizations on the program, greatly improving the download speed, and its programming speed is higher than that of the industry average
- Support multiple simultaneous burning
- Classic appearance
- Software boasts a brief main interface and a clear secondary menu

Mini-Pro's Newly Added Functions (compared with Mini programmer):
1. Buzzer sound reminder
2. Adjustable output voltage
3. Support multiple chip types

Powerful Functions (over 30):
- For Nuvoton: support configuration of N76E/MS51/ML51 MCU option byte
- Multi-language: support Simplified Chinese, Traditional Chinese and English
- Multi-Firmware One-time Burning: Supports up to 10 firmwares to burn at once
- Support designated address burning: user-defined data (software and hardware version information, logo information, production date, etc.), fonts, etc. can be added to your host computer in the form of files. After specifying the address of the file, configure it to the offline downloader together with the chip's program firmware, and then burn to the specified address of the chip respectively
- Support short circuit protection, reverse connection protection, improve hardware stability
- Support multiple erasing methods: block erasing, full chip erasing and BANK erasing
- Support data verification: verify whether the data programmed to the target chip is correct
- Support setting read protection: can be set to Level-0, Level-1, Level-2
- Supports automatic release of read protection: before burning, release the chip with read protection previously set
- Support automatic start and stop of burning: when the offline downloader detects the target chip, it will automatically execute the burning, and it will automatically stop after the end of the burning
- Support manual burning: press the button to burn
- Support LED/buzzer status indication: LED/buzzer indicates the running status of offline downloader
- Support output voltage adjustment: 1.8V/3.3V/5V can be output
- Adjustable programming speed: adjustable clock frequency during programming
- Automatically run after programming: After programming, the target chip will be automatically reset to run the user program
- Support programming limit: you can limit the maximum number of programming user firmware that has been configured to protect the software property rights
- Support remote files: package and encrypt the user configuration and firmware into an encrypted file that can only be used once for the designated offline downloader, so that the firmware can be safely sent to the factory for use without sending the plaintext firmware to the factory, preventing labor results from being stolen
- Support UID custom encryption: use a custom algorithm formula to encrypt according to the target chip UID and a user-defined User ID calculation key
- Support rolling code writing: write a rolling code to the target chip FLASH, which will increase every time it is burned, which can be used as the serial number of the product
- Programming with limited UID range: the user specifies a UID range, the offline downloader only burns the chips with UID in the specified range
- Support random number filling: the user specifies an address range, the offline downloader will write random numbers into it
- Support machine signal control: through the machine signal interface, you can use external signals to control the programming and output the programming status. At the same time, it supports the serial port machine signal to burn user-defined data changes
- Support one-key view of the current configuration of the device: easy to view the existing configuration of the device
- Support one-key online upgrade of firmware: simple and convenient to ensure easy product upgrade
- Software automatic device detection: plug the device into the USB software to automatically detect the device
- Data encryption: The communication data between the device and the PC is encrypted multiple times to ensure data security
- Device storage data encryption: The firmware storage program data in the device adopts a variety of encryption algorithms to ensure that the data cannot be decrypted, which is safe and effective
- Support automatic detection of the validity of the programming address: to ensure that the program runs correctly
- Simultaneous burning of multiple firmware supports address overlap check: the operation is more user-friendly
- Mainstream USB HID communication method: no need to install any additional drivers

Package Included:

- 1 x Mini-Pro Offline Programmer
- 1 x USB Cable With T Port
- 1 x Adapter Board
- 1 x 4 PIN White FFC Cable
- 1 x 5PIN White FFC Cable
- 1 x 5PIN Color FFC Cable
- 1 x 20PIN FFC Cable
- 1 x Plastic Storage Box

Note:
- Handheld chip burning needle is optional. If you want to get one, please contact us.
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!




Connection:
Its interface is a standard 20Pin interface, which can be directly connected to a 20PIN JTAG interface for offline download. Download via SWD interface with less pins. In this way, it is convenient to connect with external devices to download


Attention:
CTRL, STAT1, STAT2, and STAT3 pins are related to the signal of the machine. The STAT3 pin will change according to different chips during programming, which represents the busy/free state.
