Mini SAF775X Radio DSP SDR Receiver Full Band Radio Receiver with SAF7751 Chip for FM FL MW LW SW

Mini SAF775X Radio DSP SDR Receiver Full Band Radio Receiver with SAF7751 Chip for FM FL MW LW SW

Advantages:
- The multi-band radio uses SAF7751 DSP chip
- High quality digital radio

Main receiving frequency bands:
- FM (87MH-108MH)
- FL (76MH-86.9MH)
- MW (520KH-1710KH)
- LW (153KH-279KH)
- SW (2300KH -26100kH)

System introduction:
- RF reception: SAF7751 radio supports long-wave, medium-wave, short-wave, and FM-band reception.
- Power supply: TYPE-C input. Compatible with mobile phone charger.

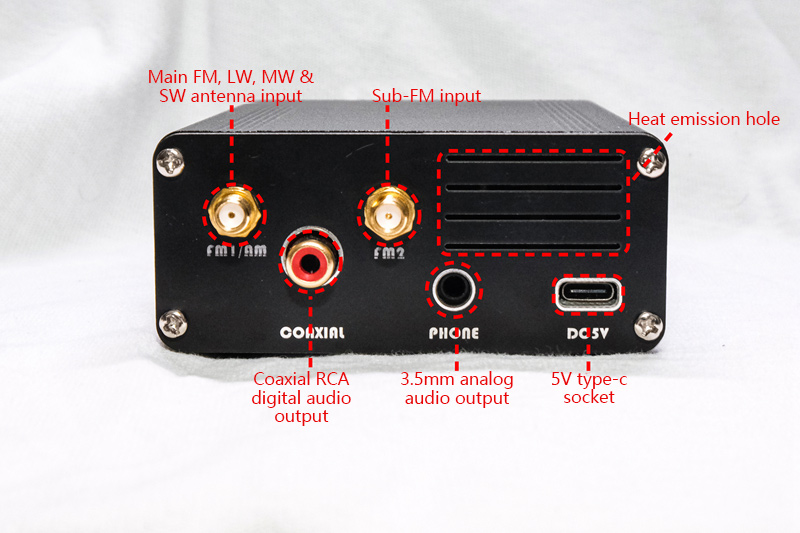

- Audio: 3.5MM headphone analog audio output + coaxial RCA digital audio output.

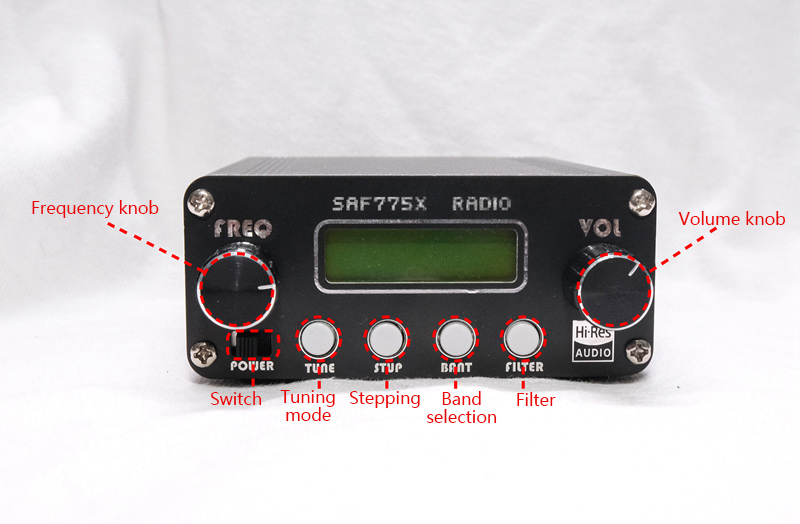

- Adjustable backlight brightness. The backlight can also be turned off. Adjustable backlight time.
- The threshold and speed of automatic station search can be set, and the station can be saved manually.
- Power-off memory settings with saved stations.

Features:
- Dual antenna differential reception signal is better and more stable
- Its all-metal shell has better heat dissipation, shields clutter, and has stronger anti-interference ability
- It is small and portable. It can be powered by a power bank for outdoor use
- The DSP SDR receiver can be connected to an external decoder to achieve HIFI level listening effect
- It is very popular in enthusiast circles

Specifications:

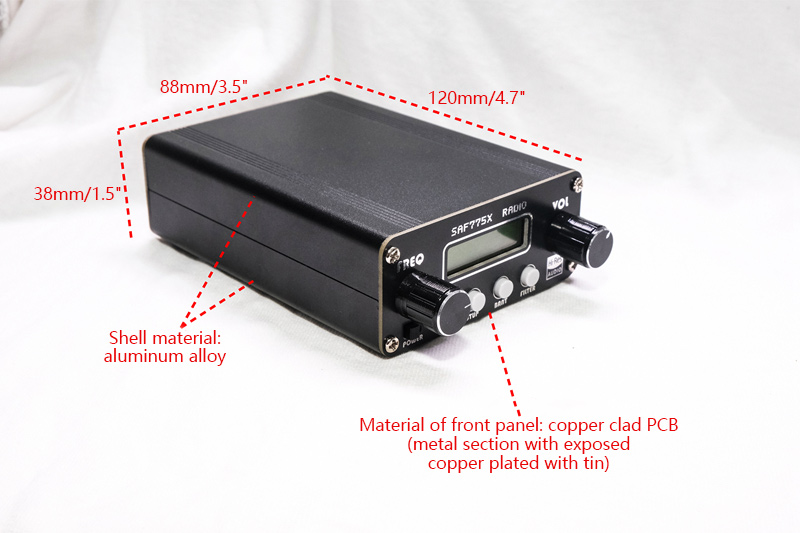

- Size: 120 x 88 x 38mm/4.7 x 3.5 x 1.5"
- Main control chip: 32-bit MCU for ARM architecture
- Receiver chip: SAF7751 for NXP
- Input voltage: DC 5V (type-c interface)
- Display screen: LCD1602 MINI
- Display area: 36 x 10mm/1.4 x 0.4"

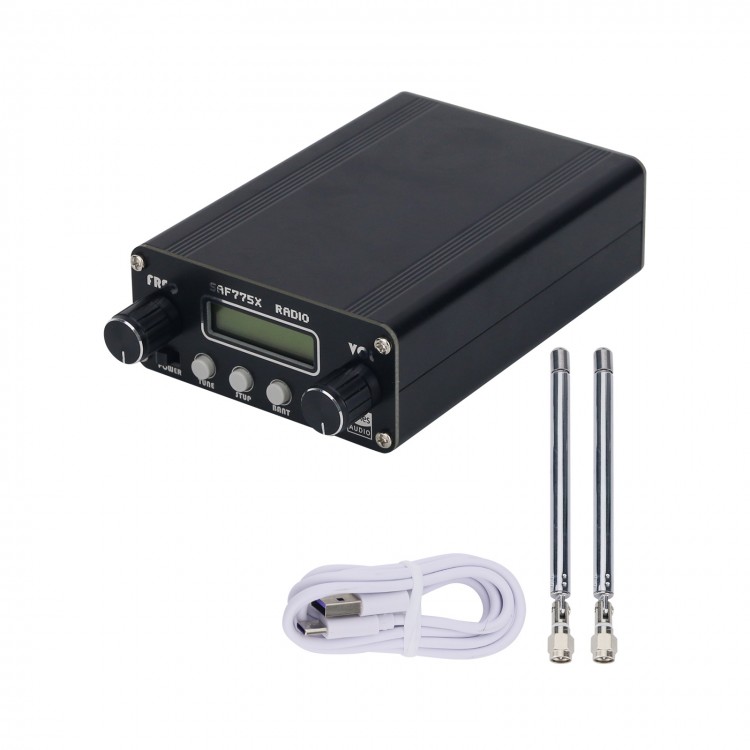

Package Included:
- 1 x Radio Receiver
- 1 x Type-C Charging Cable

Note:
- Electronic user manual is provided.

Attention:
- SAF7751 chip has high power consumption, and the current can reach 700-800mA during operation.
- The chip heats a large amount, please use it at room temperature, away from heat sources.
- The whole radio is not waterproof. Please beware of short circuit in water.
