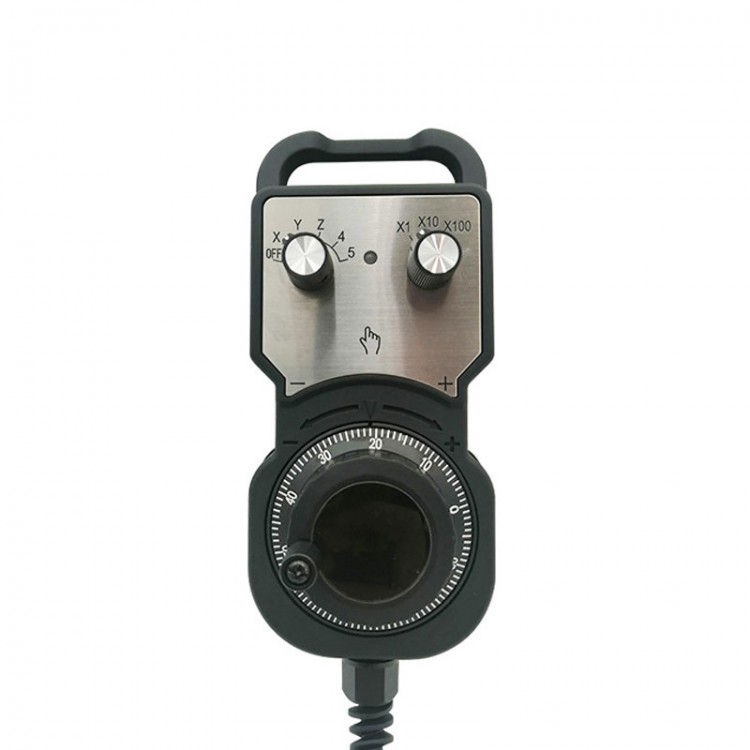

MK002-25-12E 12V 25PPR Manual Pulse Generator CNC MPG CNC Pulse Generator for Mitsubishi System
Description:
It is a 5-axis manual pulse generator. Using advanced internal devices, pulses of the CNC MPG are more stable. Thus, it is suitable for teaching CNC mechanical work origin setting and other actions. In addition, it is also widely used in printing machinery and systems currently available on the market, except PLC. It is designed without a soldered plug.
MK002-25-12E:
- Signals (A and B), voltage (12V) and pulse (25PPR)
- For Mitsubishi system
- Attention: The voltage used by its encoder for Mitsubishi system is DC12V. Wrong voltage or wiring will make the encoder burned.
Features:
- Compact structure, good hand feel, sealed housing and complete accessories
- With strong magnetic for adsorption and hook support
-
Dropping and wear resistance: stainless steel panel and
dropping-resistant imported materials are used. The font of its encoder
is clear and wear-resistant, and it does not fade
- High protection
level: Due to its main body with a sealed shell, it can be used in a
harsh environment, with stable performance
Product Information:
- Product specifications: MK002-25-12E
- Dimensions: 138 x 72 x 34mm/5.4 x 2.8 x 1.3"
- Core device: Original pulse (12V 25PPR) for NEMICON
- Band switch: Imported from Taiwan (for ALPS) (axis switch: OFF, X, Y, Z, 4 and 5; resolution switch: X1, X10 and X100)
- Oil-resistant spiral cable: Stationary 1.6m/5.2ft. Straightened 5.5m/18ft
- Adsorption method: with independent strong magnetic for adsorption (patented)
- Accessories: including high-grade hook, oil-resistant spiral cable and instruction manual
- LED indicator: Green
- Immunity standard: EN50082-2
- Warranty: 12 months
Package Included:
- 1 x Set of Manual Pulse Generator
Note:
- The delivered pulse generator is 5-axis. If you need one with a 6-axis, 7-axis or 8-axis switch, please contact us before purchasing. Thank you!
