MMDVM Hotspot Module and Antenna Support P25 DMR YSF for Raspberry pi Walkie Talkie
Note: The product not include the raspberry pi and Oled.
MMDVM hotspot for raspberry pi
Can work with UHF or VHF
If you have any problem with the hotpot module,please let us know,thanks
Parameter:
- High performance 32-bit ARM processor
- Fully assembled and tested
- Supports DMR,P-25,D-Star and System Fusion
- Onboard LEDs to show status (Tx,Rx,PTT,Mode)
- Up to 10mW RF power
- SMA antenna connector,UHF antenna included
- Mounts cleanly on all current Raspberry Pi's including the Pi Zero
-
The firmware is pre-loaded and is easily upgraded via software. Please
do not upgrade the firmware by yourself,if you have not the knowledge
for it.
- Open source 3D printable case available
- Support and tested with PI-STAR
- UHF 420-450MHz,433MHZ and 900MHz
VHF 144 220 Opera FREQ
UHF 420-450MHz ,
VHF 144-146MHZ

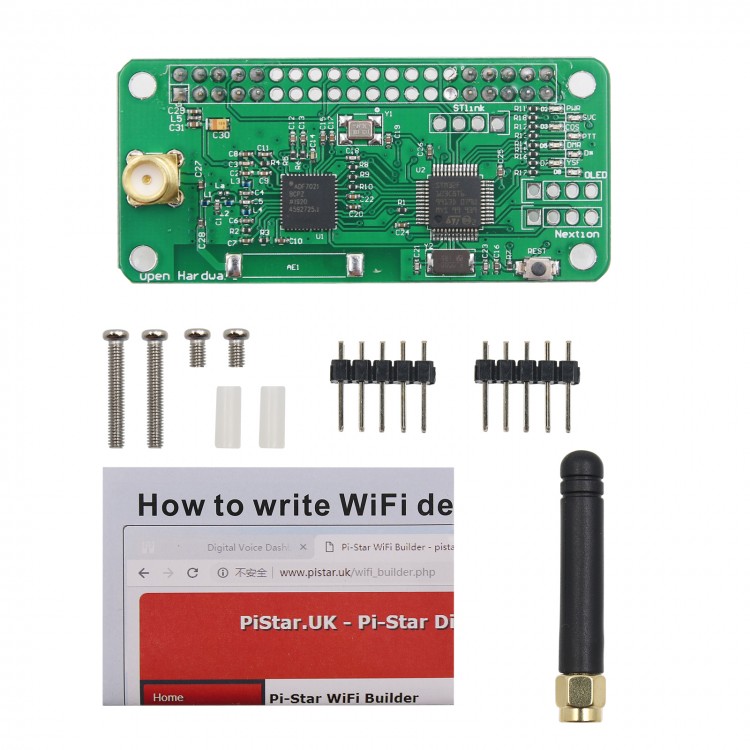

Package List: (it need to solder the OLED by yourself)
- 1 x MMDVM Hotspot Module
- 1 x antenna
