Motherboard Cooling Fan Heatsink with PWM Adjustable Speed for Jetson Orin Nano Super and NX Super

Motherboard Cooling Fan Heatsink with PWM Adjustable Speed for Jetson Orin Nano Super and NX Super

Features:
Jetson Orin Mainboard Cooling Fan
* This heat sink is designed for Jetson Orin NX SUPER and Jetson Orin Nano SUPER. It features a built-in adjustable-speed cooling fan, bracket, and height-limiting screws.

Compatibility
* For Jetson Orin Nano SUPER (Official Version/SUB)
* For Jetson Orin NX SUPER (SUB)
* Not for Jetson Nano B01

PWM Adjustable-Speed Cooling Fan
* Large cooling area, powerful airflow, and adjustable speed

High-Performance Heat Dissipation
* The all-metal black heatsink includes an integrated cooling fan. By applying thermal grease between the heatsink and the motherboard, excellent heat conduction can be achieved. The screw-mounted design makes installation and removal quick and easy.

Power Interface
* The Jetson Orin NX SUPER and Jetson Orin Nano SUPER developer kits come with a 4-pin fan connector that supports the PWM-controlled cooling fan.

Driver Resources Provided
* Detailed video installation tutorial can be provided

Specifications:
* Supported Devices: For NVIDIA Jetson Orin NX Module and Jetson Orin Nano Module
* Power Supply: DC 5V Input
* Structure: Built-in Fan and Aluminum Alloy Heat Dissipation Frame
* Electrical Parameters: Rated Power 0.75W (5V/0.15A)
* Cable Length: 45mm±5mm
* Fan: PWM Cooling Fan, 5800 RPM±10%
* Connector Pitch: 1.25mm - 4P

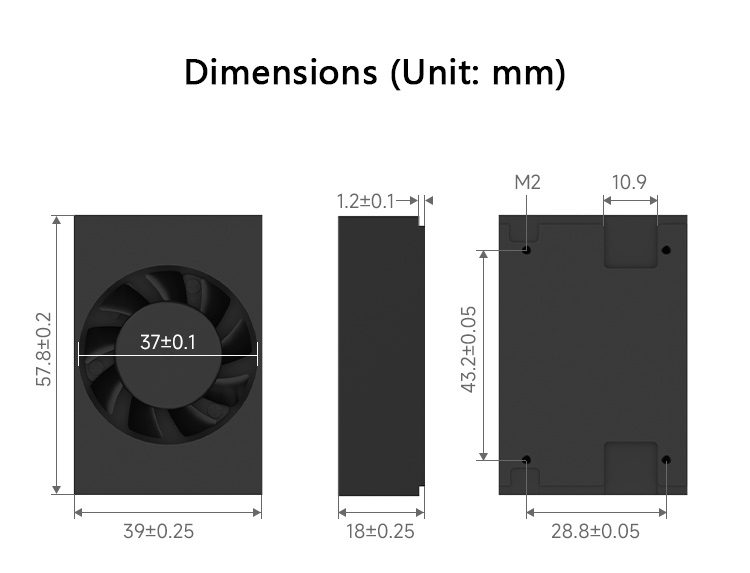

* Dimensions: 57.8 × 39 × 18mm
* Weight: 44.5g

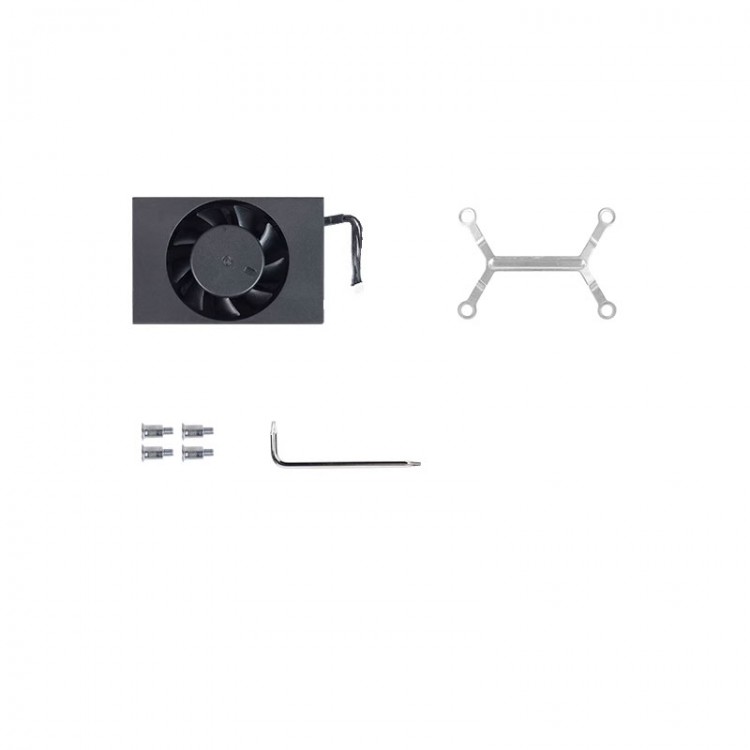

Packing List:
* 1 x Motherboard Heatsink
* 1 x Bracket
* 4 x Height-Limiting Screws
* 1 x T6 Torx Hex Wrench

Packaging Details:
* Weight: 0.15kg
