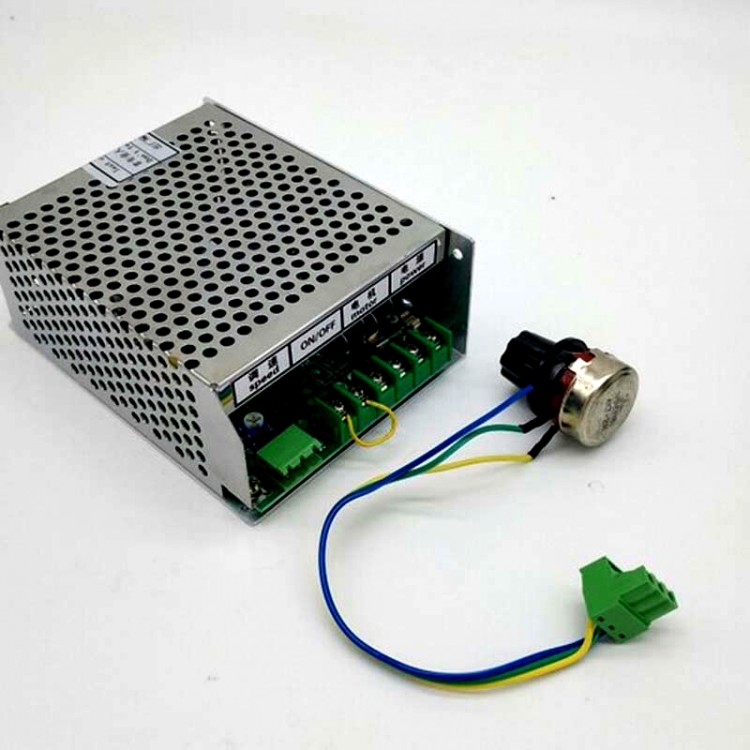

Motor Governor Electronic Governor PWM DC0-110V E543 E240 In Common
Features:
- Pulse width technology is used to make the speed more stable, more powerful at low speed.
- With over-current protection cut-off device to make function more reliable.
- With a soft start device to eliminate motor starting large current.
- Detailed Technical Parameters:
Input Voltage: AC220V±10%
Current Limit: 6A
Adapted Motor Power: 50W~500W
Armature Output Voltage: DC0 ~ 100V Adjustable
External Dimensions: 130 x 100 x 51mm (length x width x height)
Wiring: Terminal type (convenient and fast)
- Working Environment:
Ambient Air Temperature: -10 ~ 40℃
The relative humidity of the air is below 85%, the ventilation is good.
Installation in a place with good ventilation, no severe impact, no vibration, no explosive danger medium and no conductive metal powder.
Package Includes:
1 x Motor Governor
