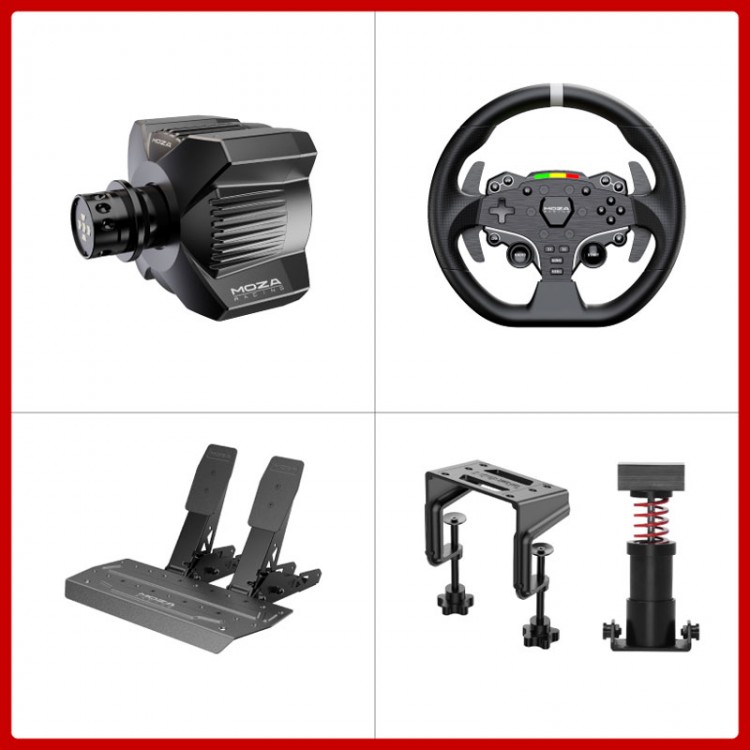

MOZA R3 Wheel Base + 11" ES Lite Steering Wheel + 2-Pedal SRP Lite + Performance Kit + Table Clamp for PC

MOZA R3 Wheel Base + 11" ES Lite Steering Wheel + 2-Pedal SRP Lite + Performance Kit + Table Clamp for PC

R3 3.9Nm Wheel Base:
1. Features:
High-Performance 3.9 Nm Torque Servo
* The professional-grade servo direct drive delivers powerful output unmatched by ordinary transmissions.
* It consistently provides a steady 3.9 Nm torque, effortlessly replicating steering force from everyday cars to racing vehicles.
* It delivers delicate transmission of all driving details.

Bold Lines and Sleek Design
* Unlike traditional industrial motor designs, the wheel base features a flowing "X" shape on the front combined with three bold lines, creating a unique appearance.
* This design also aids in heat dissipation, improving cooling efficiency.

NexGen Force 4.0 Force Feedback System
* It delivers richer and more refined force feedback details.
* Curb and road surface bumps are perceived more clearly and vividly.
* Vehicle weight transfer and tire slip responses are quicker and more responsive.
* A brand-new cogging torque compensation algorithm makes steering feel smoother.
* The force feedback interpolation algorithm eliminates peaks and dips during force transitions, resulting in more natural and fluid feedback.
* Game force feedback decoupling breaks down game-supplied forces into independently adjustable components, offering greater personalization and fine-tuning.
* Innovative Road Surface Perception Equalizer — Scenario-Based Immersive Driving: Scenario-specific tuning of road texture vibrations retains helpful driving feedback while filtering out excess vibrations, delivering an extraordinary sense of driving immersion.
* Custom Force Feedback Curve — Confident, Professional Control: It allows for a non-linear relationship between wheel base output and in-game commands. It amplifies dynamic feedback that benefits driving while reducing distracting forces, helping drivers better sense loss of traction and push the limits with greater confidence and control.

High-Strength Aluminum Alloy Body
* Continuing MOZA's tradition of high-quality materials, the body is made of high-strength aluminum alloy, delivering excellent texture and durability.

Lightweight, High-Torque Design
* Smaller size and lighter weight: It delivers 3.9 Nm of torque, packing great power in a compact body.

Lower Torque Ripple and Cogging Torque
* The powerful motor, specially designed by Chinese motor experts for racing scenarios, features proprietary cogging torque software compensation algorithms. This results in significantly reduced cogging torque and torque ripple, providing an exceptionally smooth steering experience.

Intelligent Motor Temperature Control System
* It monitors motor and electronic component temperatures in real-time, ensuring stable operation even during endurance racing.

15-bit Resolution
* The motor encoder offers ultra-high 15-bit resolution, dividing one rotation into 32,768 steps for finer steering precision.

MOZA Pit House – Professional Sim Racing Control Center
* MOZA's independently developed PC-based control center allows users to monitor the status of all devices within the MOZA ecosystem. Users can quickly adjust parameters and launch games without repetitive setup.

Mobile App & Cloud-Based Control
* Users can adjust the wheel base, steering wheel, pedals, and other devices without pausing or switching windows during a race.
* Core operations from the Pit House software can be controlled via smartphone or tablet.

2. Specifications:
* Supported Platforms: PC (for Windows 7/8/8.1/10/11)
* Drive Type: Direct Drive
* Maximum Rotation Angle: 90° to 2700°
* Main Housing Material: Aluminum Alloy
* Housing Color: Black
* Maximum Torque: 3.9 Nm
* Rated Power: 72 W
* Input Voltage: 110V~220V AC → 12V DC
* Encoder Resolution: 15-bit
* Maximum USB Polling Rate: 1000 Hz
* App Features: Supported
* Quick Release: Supported
* Interfaces: Power Supply, Data, Pedals, Display, Shifter, Handbrake, Emergency Stop Switch
* Accessories: User Manual & Warranty Card, Power Supply, Data Cable, Tool Kit
* Mounting Method: 4 Holes at Bottom
* Desk Clamp: Included
* Firmware Online Update: Supported

11" ES Lite Steering Wheel:
1. Features:
* Eco-Friendly PU Material with Real Car Quality: The rim uses the same eco-friendly PU material as real racing cars, offering anti-slip and wear resistance with a delicate hand feel.
* Aluminum Alloy Frame and Metal Paddle Shifters: The aluminum alloy frame and metal paddle shifters provide sturdy rigidity and refined texture. Shifts feel crisp and precise.
* Aluminum Alloy Quick Release: Inspired by real racing cars, the aluminum alloy quick release allows fast detachment and installation, ensuring a stable connection between the wheel base and steering wheel.
* 22 Programmable Buttons: It is equipped with 22 programmable buttons to meet the operational needs of most racing games.
* Flowing Shift Indicator Lights: The flowing shift indicator lights support user-adjustable timing for lighting up according to RPM, catering to personalized preferences.

2. Specifications:
* Rim Material: Eco-friendly PU
* Wheel Body Material: Aluminum Alloy
* Paddle Material: Metal
* Size: 280mm (11")
* Buttons: 22
* Shift Indicator Lights: Supported
* Smart Telemetry: Supported
* Lighting Control via MOZA Pit House: Supported
* Detachment Method: Aluminum Alloy Quick Release

2-Pedal SRP Lite:
1. Features:
* Crafted from High-Strength Steel: The pedals are manufactured using high-strength steel and high-quality coating techniques. This ensures they can withstand the immense force applied during braking, offering durability and resistance to deformation.
* High-Precision Hall Sensor: Equipped with a high-precision Hall sensor, the non-contact design offers greater stability and longevity.
* Compatible with Various Usage Scenarios: The anti-slip pads on the base keep the pedals firmly in place, reducing slippage. Suitable for setups without dedicated simulator stands. Multiple reserved screw holes make it easy to mount onto dedicated simulator stands.
* Adjustable and Detachable Design: The spacing between pedals can be adjusted to suit personal preferences, meeting diverse user needs. The detachable design allows for individual mounting on professional simulator stands and supports inverted installation.
* Software-Based Curve Adjustment: Using MOZA Pit House software, users can adjust pedal travel and output curves to match different driving habits.

2. Specifications:
* Overall Material: High-strength steel
* Panel Material: High-strength steel
* Throttle Sensing Method: Hall sensor
* Pedal Spacing: Adjustable
* Pedal Plate Height: Adjustable
* Pedal Travel Adjustment via Software: Supported
* Pedal Travel Inversion Function: Supported
* Pedal Output Curve Adjustment: Supported
* Anti-Slip Base: Supported

Performance Kit for SRP Lite:
1. Features:
* Realistic Pedal Feel – The combination of spring and damping block delivers higher brake resistance and a more progressive, lifelike pedal feel.
* Sturdy & Durable – Built to last, the high-quality spring and damping block are designed to endure thousands of hours of use.
* Quick & Easy Installation – Simple to install: secure the top two screws and slide the bottom pivots into the groove.
* Note: It is not compatible with SR-P Pedals.

Packing List:
* 1 x Wheel base
* 1 x Steering wheel
* 1 x Set of pedals
* 1 x Table clamp
* 1 x Performance kit

Packaging Details:
* Weight: 10.2kg
