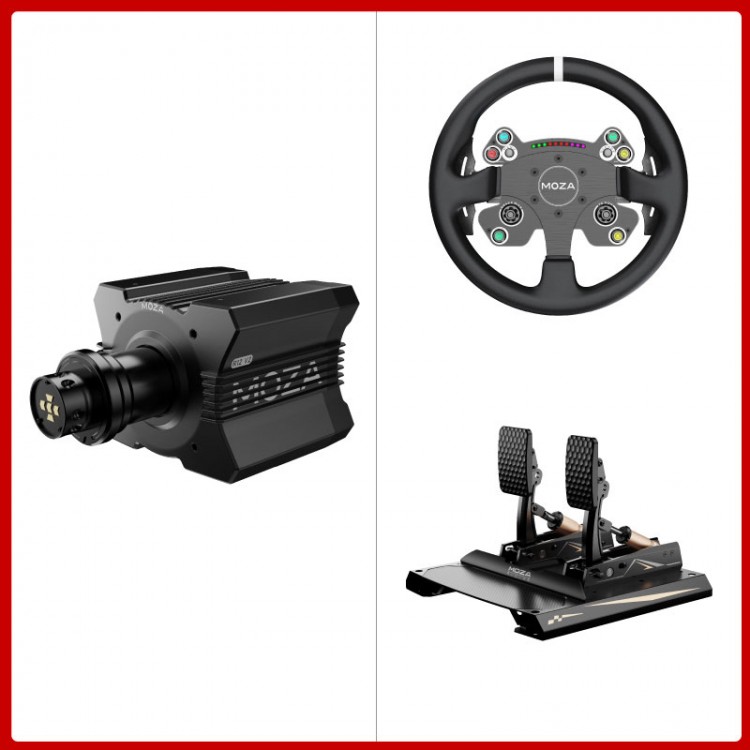

MOZA RACING R12 V2 12Nm Direct Drive Wheel Base + 13" CS V2P Steering Wheel + CRP2 2-Pedal Set

MOZA RACING R12 V2 12Nm Direct Drive Wheel Base + 13" CS V2P Steering Wheel + CRP2 2-Pedal Set

R12 V2 12Nm Direct Drive Wheel Base:
1. Features:
12Nm Constant Torque Carbon-Fiber Skewed-Pole Servo Motor
* It delivers a sustained and stable torque output of 12Nm, precisely replicating steering forces from everyday vehicles to race cars, and delicately conveying a wide range of driving details.

21-bit Magnetic Encoder with 280MHz High-Performance Chip
* The 21-bit magnetic encoder divides each rotation into 2,097,152 steps, providing ultra-smooth control feel.
* With angular resolution reaching 0.00017°, the system offers highly accurate response and realistic, detailed force feedback.

High-Performance Skewed-Pole Servo Motor Tailored for Precision Control in Simulated Racing Scenarios
* Skewed Pole Design and Quiet Operation: The non-uniform three-segment skewed pole design effectively reduces cogging torque, electromagnetic vibration, and noise.
* High Torque Density, Compact and Powerful: Featuring a high slot-fill ratio design and high-permeability iron core, combined with strong neodymium-iron-boron magnets, the motor achieves lower power consumption and higher output performance.
* Multi-Slot Multi-Pole and Ultra-Low Torque Ripple: With a design of up to 18 slots and 16 poles, the motor offers significantly reduced torque ripple and superior vibration damping, delivering a more refined and smooth steering feel.
* Wide High-Torque Speed Range: Thanks to its low back-EMF design, the motor maintains high torque even at high speeds, allowing quick directional corrections while avoiding torque dropout.

Carbon Fiber Rotor Technology
* High-performance automotive-grade motor rotor protection technology effectively reduces rotor eddy current loss and heat buildup, ensuring sustained high-performance output of the motor.

NexGen Force 4.0 Force Feedback System
* It delivers richer and more refined force feedback details.
* Curb and road surface bumps are perceived more clearly and vividly.
* Vehicle weight transfer and tire slip responses are quicker and more responsive.
* A brand-new cogging torque compensation algorithm makes steering feel smoother.
* The force feedback interpolation algorithm eliminates peaks and dips during force transitions, resulting in more natural and fluid feedback.
* Game force feedback decoupling breaks down game-supplied forces into independently adjustable components, offering greater personalization and fine-tuning.
* Innovative Road Surface Perception Equalizer — Scenario-Based Immersive Driving: Scenario-specific tuning of road texture vibrations retains helpful driving feedback while filtering out excess vibrations, delivering an extraordinary sense of driving immersion.
* Custom Force Feedback Curve — Confident, Professional Control: It allows for a non-linear relationship between wheel base output and in-game commands. It amplifies dynamic feedback that benefits driving while reducing distracting forces, helping drivers better sense loss of traction and push the limits with greater confidence and control.

Intelligent Motor Temperature Control System
* It monitors motor and electronic component temperatures in real time, ensuring stable performance even during endurance races.

High-Strength Aluminum Alloy Body
* Automotive-grade coating and laser etching deliver a premium metallic finish.

Professional Conductive Slip Ring — Stable and Durable
* It provides solid connection between the base and steering wheel, enabling high-speed rotation with a lifespan of up to 5 million revolutions (data from MOZA laboratory durability tests). It ensures stable performance and long-lasting reliability.

Mobile App & Cloud-Based Control
* Users can adjust the wheel base, steering wheel, pedals, and other devices without pausing or switching windows during a race. Core operations from the Pit House software can be controlled via smartphone or tablet.

MOZA Pit House – Professional Sim Racing Control Center
* MOZA's independently developed PC-based control center allows users to monitor the status of all devices within the MOZA ecosystem. Users can quickly adjust parameters and launch games without repetitive setup.
* Quick Tuning for the MOZA Ecosystem: Pit House enables function checks and personalized quick tuning for all MOZA devices. Users can launch games directly, apply one-click configurations, and access telemetry data. It offers a user-friendly interface and comprehensive functionality.
* Beginner-Friendly: It provides one-click scenario-based presets tailored to different racing car types and game titles, including official presets and exclusive setups from professional sim racers. Beginners can start racing immediately without a steep learning curve.
* 19 Force Feedback Tuning Parameters for a Custom Feel: It offers 19 adjustable parameters such as mechanical friction and road feel sensitivity. The open tuning platform allows players to create their ideal steering feel while learning about tuning and improving their skill level.
* Proprietary Road Surface Perception Equalizer: It enables precise, scenario-based adjustment of road texture vibration. It retains helpful feedback while filtering out excess vibrations, delivering an extraordinary immersive driving experience.
* Proprietary Force Feedback Curve Adjustment: It allows the base's force output to follow a non-linear relationship with in-game commands. It amplifies dynamic feedback beneficial to driving, dampens distracting forces, and helps the driver better detect vehicle instability—enhancing control near the limits.
* Detailed Steering Wheel Control: Through MOZA Pit House, users can finely tune settings such as dual-clutch paddles, knobs, joysticks, and shift indicator lights, significantly improving steering wheel handling.
* Precision Pedal Adjustment: On the pedal setup page, users can finely adjust throttle, brake, and clutch travel, output curves, and pressure response points. This helps players quickly develop proper braking techniques and effectively improve lap times.

Integrated Design Saves Space
* The all-in-one motor is compact and portable.
* It supports installation on professional racing cockpits, integrated stands, and desktop clamp mounts, offering a wide range of mounting options.
* Note: Desktop clamp installation requires an additional clamp (sold separately).

Hands-Off Protection for Enhanced Safety
* When the vehicle loses control and the steering wheel begins to oscillate, the system detects whether hands are off the steering wheel. If so, the steering wheel will automatically stop oscillating and stabilize near the center (zero) position. This helps effectively prevent injury and allows the driver to quickly regain control.

2. Supported Games for PC:
* Assetto Corsa
* Assetto Corsa Competizione
* Forza Horizon 4 (This game is currently not compatible with Steam)
* Forza Horizon 5 (Win 10)
* Euro Truck Simulator 2
* American Truck Simulator
* RaceRoom Racing Excperience
* F1 2018
* F1 2019
* F1 2020
* F1 2021
* F1 22
* F1 23
* rFactor 2
* Project CARS 1
* Project CARS 2
* Project CARS 3
* WRC G
* WRC 9
* WRC 10
* Dirt Rally
* Dirt Rally 2.0
* Dirt 4
* iRacing
* Wreckfest
* KartKarft
* Richard Burns Rally
* Live For Speed
* BeamNG.Drive
* MudRunner
* CarX Drift Racing Online
* Automobilista 2

3. Specifications:
* Drive Type: Direct Drive
* Max Wheel Rotation: 90-2700°
* Housing Material: Aluminum Alloy
* Housing Color: Black
* Peak Torque: 12 Nm
* Peak Power: 216W
* Input Voltage: 110V~220V AC —>36V DC
* Encoder Resolution: 21-Bit Magnetic Encoder with 280MHz High-Performance Processor
* USB Refresh Rate: 1000 Hz
* App Functions: Supported
* Quick Release: Supported
* Connection Ports: Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
* Box Contents: R12 Wheel Base, User Manual, Power Supply, USB Cable, Tool Kit
* Fixing Method: 4-hole bottom mount
* Desk Clamp: Optional
* E-stop: Optional
* Online Firmware Update: Supported
* Dimensions: 225.87 x 156.68 x 123.99 mm

CS V2P Steering Wheel:
1. Features:
* 13-Inch Standard Racing Rim: With a true-to-life size matching that of a real racing car, the CS V2P delivers an immersive and realistic sim racing experience.
* Aviation-Grade Aluminum Alloy Frame: Constructed with aviation-grade aluminum alloy for the rim, operation board, and base plate, the wheel boasts exceptional quality, strength, and rigidity.
* Customized Quick Release: MOZA's customized quick-release system, inspired by real racing technology, allows drivers to swap wheels within seconds while maintaining a secure and stable connection.
* Forged Carbon Fiber Magnetic Shifter: The magnetic shifters feature a solid, responsive feel and a premium forged carbon fiber design. Utilizing contactless photoelectric technology, the paddles offer exceptional stability and ensure precise shifting every time.
* RGB Sequential Shift Light Indicator: The CS V2P features 10 RGB LED sequential shift lights with 7 adjustable colors, allowing racers to customize the rev-speed lighting.
* Programmable Mechanical Key Buttons: It features 6 programmable mechanical buttons with tactile feedback.
* Two Pressable Universal Joysticks: They can simulate 10 buttons and 2 sets of D-pads, effectively expanding the functionality of the steering wheel to meet the complex control needs of most competitive racing games.
* MOZA Invisible Wireless Connection Technology: MOZA's 2.4G wireless signal technology provides seamless, cable-free racing. Tested over thousands of hours, it offers superior stability and longer service life compared to traditional wired connections.

2. Specifications:
* Grips: Microfiber Leather
* Face Plate Material: Aluminum Alloy
* Back Plate Material: Aluminum Alloy
* Shifter Material: Forged Carbon Fiber
* Size: 13 Inches
* Magnetic Shifters: 2
* Mechanical Key Buttons: 6
* Joysticks: 2
* Rotary Encoders: 2
* LED RGB Light Beads: 10
* Choice of Colors: 7
* Intelligent Telemetry: Yes
* Fully Adjustable RPM LEDs through MOZA Pit House: Supported
* Release Method: MOZA Quick Release
* Communication Method: Wireless
* Shifter Sensor: Non-contact Photoelectric Sensor

CRP2 2-Pedal Set:
1. Features:
* Minimalist Design: The CRP2 sim racing pedals feature a minimalist design with smooth curves and a sophisticated black-and-gold color scheme that exudes competitive energy. Hexagonal design elements on the pedal face symbolize stability, balance, and versatility. Concealed wiring, springs, and screws contribute to a clean, professional appearance.
* CNC Aerospace-Grade Aluminum Construction: Key components are CNC-machined from aerospace-grade aluminum alloy to exacting standards and anodized for a sleek, durable finish. Additional components are made using precision die-casting and coated with automotive-grade finishes to ensure strength and quality. The base is constructed from high-strength steel to endure the intense forces of competitive racing.
* Carbon Fiber Heel Plate: The 3K twill carbon fiber heel plate adds a sporty touch while offering moderate surface friction for stable and precise heel placement during high-intensity sessions.
* 200KG Load Cell Sensor: Equipped with a 200 kg pressure sensor, the brake pedal covers nearly the full braking force range found in real race cars. This provides a strong connection between muscle memory and applied braking force.
* 15-bit High-Precision Angle Sensor: Using a patented sensor fusion algorithm, the CRP2 combines a 15-bit angle sensor with the load cell to deliver exceptional accuracy and fine control of braking force—maximizing responsiveness and enhancing muscle memory.
* 125 Brake Pedal Feel Combinations: The brake features a damping block system with hardness options of 55, 70, 80, and 98, enabling 125 different pedal feel combinations. This adaptability supports simulation of a wide range of vehicles, from standard road cars to F3 race cars.
* Versatile Damping Block Configuration: Eight damping blocks can be configured in multiple combinations to simulate various race car brake profiles. Choose from suggested configurations or create a custom setup to match your driving style.
* Adjustable Throttle: The throttle features a spring-enclosed design and a precision guide rod for a silky-smooth pedal feel. It includes two springs with different resistance levels and allows for continuous force adjustment to simulate throttle feedback from a wide range of vehicles.
* Quiet and Smooth Operation: An enclosed structure combined with a high-polish steel shaft ensures quiet, smooth pedal motion. Soft end-point cushions provide effective noise reduction during use.
* Tool-Free Adjustment: A patented tool-free design allows quick adjustments to damping blocks, springs, and pedal forces—no wrenches or tools required. Ideal for switching between vehicle profiles.
* Adjustable Travel and Angle: Each pedal—brake, throttle, and clutch (optional)—offers adjustable travel and angle, giving you full control over pedal feel and ergonomics.
* Adjustable Position and Height: Pedal spacing, footrest position, and pedal face height (adjustable up to 30 mm) are all customizable, supporting various foot sizes and user preferences.
* Ergonomic Design: The pedal surfaces follow a biomimetic curve that conforms to the foot arch, enhancing comfort and enabling more effective force application.
* Enhanced Compatibility: When paired with the Xbox-compatible ESX wheel base, the CRP2 pedals can be connected directly for Xbox use. They also support direct connection to a PC or the base.
* Professional Software Support: MOZA Pit House software allows you to monitor pedal status, configure pedal travel and signal output curves, adjust electronic travel, and view real-time signal output curves—unlocking the full potential of the hardware.
* Engineered for Endurance: Each CRP2 pedal has been tested for over one million press cycles, ensuring long-term durability and performance for even the most demanding sim racers.
* Supports Inverted Mounting: The CRP2 pedals support inverted mounting to replicate the layout and ergonomics of real road cars. This can be done with optional components or custom brackets.
* Optional Performance Kit: The Performance Kit includes 10 springs, various damping blocks, and a metal block. When combined with the original damping blocks, it offers 1,764 possible pedal feel combinations—enabling near-instant brake response and mimicking the hard brake feel of F1 and F2 cars.
* Performance Customization Options: Fine-tune your driving experience with various pedal feel and travel configurations. The spring offers a linear braking feel, while the aluminum block minimizes pedal travel for quicker response.

2. Specifications:
* Pedal Body Material: Aerospace-grade aluminum alloy
* Heel Plate Material: 3K twill carbon fiber
* Base Material: High-strength steel
* Load Cell Sensor Range: 0–200kg
* Brake Sensor: Load cell sensor and angle sensor
* Angle Sensor Resolution: 15-bit (32768 PPR)
* Brake Pedal Feel: 115 standard adjustments, 1764 optional configurations
* Throttle Adjustment: Two spring options with infinite adjustment
* Clutch Adjustment: Two spring options with infinite adjustment (Optional clutch)
* Brake Travel Adjustment: 15–20°
* Throttle Travel Adjustment: 15–23°
* Clutch Travel Adjustment: 15–25° (Optional clutch)
* Pedal Angle Adjustment: 0–15°
* Pedal Face Height Adjustment: Up to 30mm
* Footrest Adjustment: Up to 30mm
* Pedal Curve Adjustment: Adjustable
* Real-time Pedal Output Display: Adjustable
* Pedal Pressure Engagement Point: Adjustable
* Pedal Surface: Biomimetic curved
* Inverted Mounting Kit: Optional

Packing List:
* 1 x Set of wheel base + steering wheel + pedals

Packaging Details:
* Weight: 19.2kg
