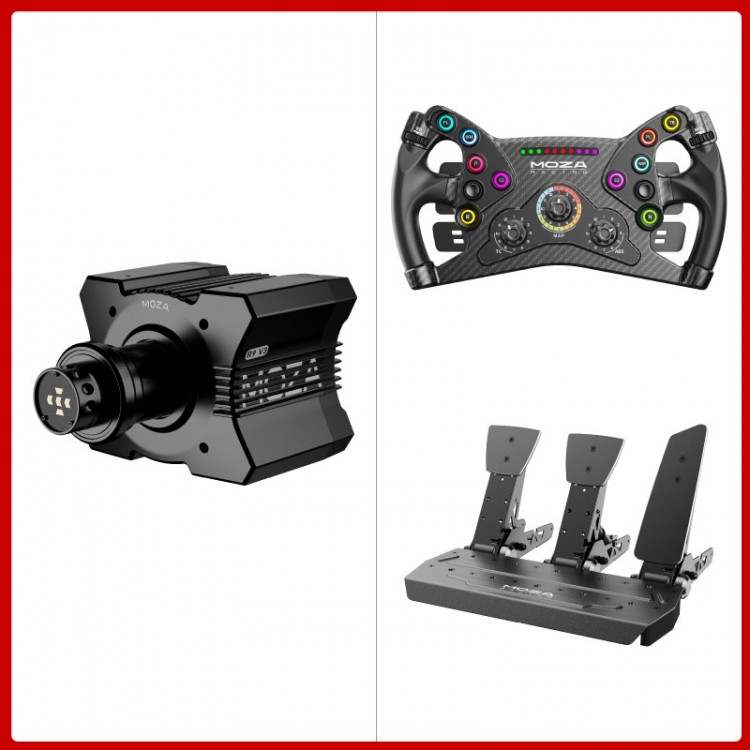

MOZA RACING R9 V3 9Nm Direct Drive Wheel Base + 300mm/11.8" KS Steering Wheel + SR-P 3-Pedal Set

MOZA RACING R9 V3 9Nm Direct Drive Wheel Base + 300mm/11.8" KS Steering Wheel + SR-P 3-Pedal Set

R9 V3 9Nm Direct Drive Wheel Base:
1. Features:
Professional True Servo with 9Nm of Torque
* It delivers a sustained and stable output of 9Nm torque, faithfully replicating the steering resistance from consumer vehicles to race cars. It finely transmits all driving details, meeting the gaming and training needs of most racing enthusiasts.

21-bit Magnetic Encoder & 280MHz High-Performance Processor
* 2.09 Million-Level Force Feedback Resolution: The 21-bit magnetic encoder divides each full rotation into 2,097,152 steps, offering ultra-refined control.
* With angle detection precision up to 0.00017°, the response is more accurate and the steering feel is smoother.
* It reproduces rich and detailed force feedback sensations with high realism.

High-Performance Servo Motor
* High torque density, compact yet powerful: Featuring a high slot fill ratio design, magnetic core with excellent conductivity, and strong neodymium magnets, it ensures lower power consumption and higher output.
* Multi-slot, multi-pole design with ultra-low torque ripple: 18-slot, 16-pole structure provides reduced torque ripple and superior vibration damping, making steering feel smoother and silkier.
* Wide High-Torque Speed Range: With a low back-EMF design, it maintains high torque even at high speeds, enabling fast direction corrections while preventing torque dropouts.

NexGen Force 4.0 Feedback System
* More detailed and refined force feedback lets you clearly perceive curbs and road surface bumps.
* The vehicle's center of gravity shift and tire slip response are more sensitive and rapid.
* A newly developed cogging torque compensation algorithm provides smoother steering feedback.
* Force Feedback Interpolation Algorithm: It eliminates force spikes during sudden feedback changes, creating a more natural and fluid experience.
* Game Feedback Decoupling: It deconstructs game force feedback into separately adjustable components, allowing for greater customization.
* Innovative Road Surface Perception Equalizer: Scene-based vibration tuning maximizes useful feedback while filtering out excess noise, delivering immersive and realistic driving sensations.
* Self-Developed Force Feedback Curve Adjustment: It allows the base force feedback output to have a nonlinear relationship with the game commands, amplifying dynamic force feedback that aids driving while weakening interfering forces. This helps drivers more easily detect vehicle loss of control, improves driving tolerance, and lets them confidently push the limits.

Intelligent Motor Temperature Control System
* It monitors the temperature of the motor and electronic components in real time, ensuring stable operation of the device even during endurance races.

High-Strength Aluminum Alloy Body
* Using automotive-grade coating and laser processing, it delivers a premium metallic texture.

Professional Conductive Slip Ring — Stable and Durable
* It securely connects the base and steering wheel, enabling high-speed rotation with a lifespan of up to 5 million revolutions. The data comes from MOZA laboratory durability tests.
* Stable performance, durable and reliable.

Mobile App Cloud Control
* Users can adjust the base, steering wheel, pedals, and other devices remotely. Parameter tuning during races can be done without pausing or switching windows. Main operations in the Pit House can be completed via smartphone or tablet.

MOZA Pit House – Professional Sim Racing Control Center
* MOZA's independently developed PC-based control center allows users to monitor the status of all devices within the MOZA ecosystem. Users can quickly adjust parameters and launch games without repetitive setup.
* Quick Tuning for the MOZA Ecosystem: Pit House enables function checks and personalized quick tuning for all MOZA devices. Users can launch games directly, apply one-click configurations, and access telemetry data. It offers a user-friendly interface and comprehensive functionality.
* Beginner-Friendly: It provides one-click scenario-based presets tailored to different racing car types and game titles, including official presets and exclusive setups from professional sim racers. Beginners can start racing immediately without a steep learning curve.
* 19 Force Feedback Tuning Parameters for a Custom Feel: It offers 19 adjustable parameters such as mechanical friction and road feel sensitivity. The open tuning platform allows players to create their ideal steering feel while learning about tuning and improving their skill level.
* Proprietary Road Surface Perception Equalizer: It enables precise, scenario-based adjustment of road texture vibration. It retains helpful feedback while filtering out excess vibrations, delivering an extraordinary immersive driving experience.
* Proprietary Force Feedback Curve Adjustment: It allows the base's force output to follow a non-linear relationship with in-game commands. It amplifies dynamic feedback beneficial to driving, dampens distracting forces, and helps the driver better detect vehicle instability—enhancing control near the limits.
* Detailed Steering Wheel Control: Through MOZA Pit House, users can finely tune settings such as dual-clutch paddles, knobs, joysticks, and shift indicator lights, significantly improving steering wheel handling.
* Precision Pedal Adjustment: On the pedal setup page, users can finely adjust throttle, brake, and clutch travel, output curves, and pressure response points. This helps players quickly develop proper braking techniques and effectively improve lap times.

Integrated Design Saves Space
* Using an integrated motor, it is compact and portable.
* It supports professional cockpits, integrated brackets, and desktop clamp installation, providing more installation options.
* Note: Desktop clamp installation requires purchasing the desktop clamp separately.

2. Supported Games:
* Assetto Corsa
* Assetto Corsa Competizione
* Forza Horizon 4 (Microsoft Store)
* Forza Horizon 5
* Euro Truck Simulator 2
* American Truck Simulator
* RaceRoom Racing Excperience
* F1 2018
* F1 2019
* F1 2020
* F1 2021
* F1 22
* F1 23
* rFactor 2
* Project CARS 1
* Project CARS 2
* Project CARS 3
* WRC G
* WRC 9
* WRC 10
* Dirt Rally
* Dirt Rally 2.0
* Dirt 4
* iRacing
* Wreckfest
* KartKarft
* Richard Burns Rally
* Live For Speed
* BeamNG.Drive
* MudRunner
* CarX Drift Racing Online
* Automobilista 2

3. Specifications:
* Supported Platform: PC
* Drive Type: Direct Drive
* Maximum Steering Angle: 90° to 2700°
* Housing Material: Aluminum Alloy
* Maximum Torque: 9 Nm
* Maximum Power: 180W
* Input Voltage: 110V~220V AC → 36V DC
* Maximum USB Refresh Rate: 1000Hz
* App Functionality: Supported
* Quick Release: Supported
* Ports: Power, Data, Pedals, Display, Shifter, Handbrake, Emergency Stop Switch
* Accessories: User Manual, Power Supply, Data Cable, Screw Kit
* Mounting Method: Four bottom mounting holes; dedicated bracket supports angle adjustment and side mounting; desktop clamp supported
* Firmware Upgrade: Supported
* Desktop Clamp: Optional
* Side Mounting: Optional
* Emergency Stop Switch: Optional

KS Steering Wheel:
1. Features:
* Carbon Fiber Reinforced Composites: The KS wheel case is made from carbon fiber-reinforced composites, offering a strong and durable texture. Its strengthened quick-release connection structure, reinforced with high-strength steel, ensures ultimate firmness and security during sharp turns.
* 300mm/11.8" Butterfly-Style GT Wheel: The KS is MOZA's GT-style racing wheel. With its sleek butterfly design and 300mm size, this wheel is built to deliver the ultimate in immersion and realism.
* Programmable 0.25mm Short-Travel RGB Buttons: The KS steering wheel features 10 RGB buttons with 0.25mm short travel and 8 customizable colors. They provide lightning-fast responsiveness and an authentic tactile feel. Transparent button stickers are included for easy customization and to add a high-tech aesthetic to your setup.
* 8-Color RPM LED Light: The KS racing wheel includes 10 high-brightness LED lights, customizable with up to 8 colors, offering 100 million combinations. In addition, the RPM indicator's switch mode and timing can be fully customized, giving you complete control over your racing experience.
* Hall Sensor Magnetic Paddles with Dual Clutch: The magnetic paddles are crafted from durable anodized aluminum, delivering a sleek, premium appearance. Featuring non-contact Hall sensors with 0.03mm precision, they provide stable and precise control. Pre-installed silencer pads ensure smooth, noise-free shifting.
* Lightweight Design: Thanks to lightweight materials and an optimized structure, the KS wheel weighs only 1220g. This low weight enhances responsiveness and accurately replicates road textures and feedback.
* TPE Rubber Grips: The TPE grips offer a soft yet precise feel, with superior grip and high friction for accurate steering control. They are coated with a corrosion-resistant material for enhanced durability and protection against wear and tear.
* MOZA Quick Release: MOZA's quick-release system enables seamless wheel transitions in seconds. Enjoy a stable, solid connection that integrates smoothly across the entire MOZA ecosystem.
* MOZA Pit House Control Suite: The Pit House steering wheel control interface features a user-friendly design that allows you to test wheel functionality, adjust dual-clutch paddle settings, and switch between knob and joystick modes. You can also customize the gear shift indicator's color, brightness, and timing, as well as button colors.
* Ergonomic Design: Well-positioned joysticks, buttons, and switches allow quick, intuitive adjustments during intense gameplay. Indentations on the grips ensure a secure hold—with or without gloves.
* Three 12-Position Rotary Encoders, Two 20-Position Thumb Encoders, Two Depressible Joysticks, and 70 Programmable Input Signals: The MOZA KS offers 70 fully programmable input signals for all your racing needs. It includes thumb and rotary encoders for fast, on-the-fly adjustments of brake bias, traction control, engine maps, ABS, and more. Two joysticks provide complete menu navigation, keeping your hands on the wheel and eyes on the track.

2. Compatibility List:
MOZA Wheel Bases:
* The KS steering wheel is compatible with all MOZA bases and can also be used with third-party wheel bases via an adapter for direct PC connection.

Platforms:
* It is compatible with PC.

Compatible Games for PC:
* Assetto Corsa
* Assetto Corsa Competizione
* Dirt Rally
* Dirt Rally 2.0
* Dirt 4
* F1 2018
* F1 2019
* F1 2020
* F1 2021
* F1 2022
* WRC Generations
* Project CARS 1
* Project CARS 2
* Project CARS 3
* iRacing
* Forza Horizon 4 (This game is currently not compatible with Steam)
* Forza Horizon 5 (Win 10)
* Live For Speed
* Automobilista
* Automobilista 2
* Richard Burns Rally
* rFactor2
* Euro Truck Simulator 2
* American Truck Simulator
* KartKarft
* WRC 9
* WRC 10
* BeamNG.Drive
* MudRunner
* Wreckfest
* RaceRoom Racing Experience
* CarX Drift Racing Online

3. Specifications:
* Size: 300mm/11.8" standard GT wheel
* Paddle Material: Aluminum alloy
* Magnetic Shifter Paddles: 2
* Clutch Paddles: 2
* Luminous Short Travel Buttons: 10
* Joysticks (depressible): 2
* Thumb Encoders: 2
* Rotary Encoders: 3
* High Brightness LEDs: 10
* LED Colors: 8
* Intelligent Telemetry: Supported
* Fully Adjustable RPM LEDs through MOZA Pit House: Supported
* Release Method: MOZA Quick Release
* Communication Method: via Industrial Conductive Slip Ring
* Paddle Sensor: Non-contact Hall Sensor
* Dual Clutch Paddle Modes: Combined Axis/Independent Axis/button
* Knob Modes: Button or dial
* Compatibility: All MOZA wheel bases and 3rd party wheel bases
* 3rd party base expansion port: Supported

SR-P 3-Pedal Set:
1. Features:
* Made with High-strength Steel: The pedals are crafted from high-strength steel, ensuring superior quality and durability.
* Floor Mounted Organ Type Accelerator Pedal: The organ-style accelerator pedal allows the driver's foot and the pedal to move along the same trajectory, making throttle control easier and more precise.
* High-Precision 100KG Load Cell: The MOZA SR-P pedals feature advanced load cell sensors with a 100kg capacity. These sensors accurately detect brake pedal pressure, enabling users to apply the ideal braking force through precise pressure control.
* 16-bit High Precision Magnetic Encoder: The brake, optional clutch, and throttle pedals all use a 16-bit precision magnetic encoder with 65536 PPR resolution — offering much higher accuracy and greater stability than a Hall sensor.
* Dual Sensor Fusion Algorithm: The brake uses both pressure and angle sensors to allow precise braking control. In the initial stage, the angle sensor dominates, enabling racers to modulate the braking angle. In the mid and final stages, the pressure sensor takes over, making the pedal easier to control.
* Braking Spring and Damping Block Combined: By utilizing both a braking spring and a damping block, racers can enjoy greater control during the initial stage of pedal travel, along with a signature stiffness in the final stage that closely simulates real brake pedal feel.
* Direct Connection with PC through USB: The MOZA SR-P Pedals connect effortlessly to your PC via USB and can be easily calibrated using the intuitive MOZA Pit House software. With universal compatibility across all sim racing gear, they ensure a smooth and hassle-free experience for every racing enthusiast.
* Multiple Use Scenarios: The anti-slip mat on the bottom prevents the pedals from sliding during use without professional brackets, while still allowing easy integration into more advanced setups.
* Detachable Pedals: The pedals can be easily detached and mounted onto other professional brackets. For advanced users, they can also be installed in a reversed configuration.
* Pedal Output Curve Adjustment: MOZA Pit House allows easy configuration of pedal output curves to suit different needs.

2. Specifications:
* Material: High-strength steel
* Plate Material: High-strength steel
* Brake Sensor: Load cell + angle sensor
* Max Capacity: 100KG
* Throttle Sensor: Angle sensor
* Clutch Sensor: Angle sensor (Only for the 3-pedal set)
* Angle Sensor Resolution: 16-bit (65536ppr)
* Pedal Spacing: Adjustable
* Pedal Plate Height: Adjustable
* Pedal Connection Port: USB
* Pedal Travel Software Adjustment: Yes
* Pedal Travel Reverse Function: Yes
* Anti-Slipping Pad: Included

Packing List:
* 1 x Set of wheel base + steering wheel + pedals

Packaging Details:
* Weight: 13.62kg

Note:
* The SR-P pedals are compatible with other products and can be used via USB alongside any brand. They are not compatible with the SR-P Lite Clutch Pedal and SR-P Lite Brake Pedal Performance Kit.
