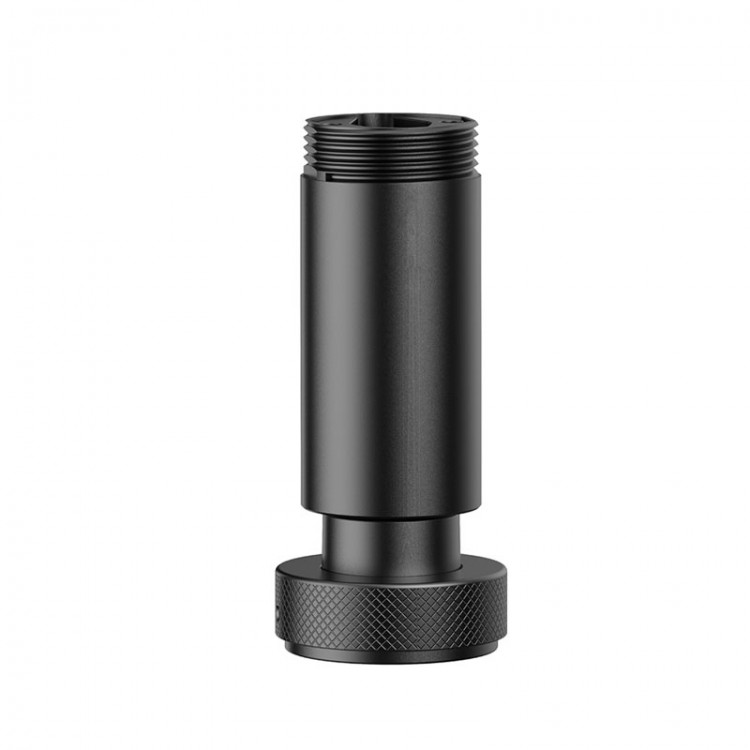

MOZA Z-Axis Module Boasts Precision Yaw Control and 3.8" (97mm) Extension for Flight Sim Stick

MOZA Z-Axis Module Boasts Precision Yaw Control and 3.8" (97mm) Extension for Flight Sim Stick

Description:
The MOZA Z-Axis Module functions as a yaw control axis with a ±20° range and includes an extension kit that adds 97mm in length. It features a 16-bit Hall sensor for precise control. It is constructed from aerospace-grade CNC aluminum alloy for enhanced durability, and includes a locking mechanism for flexible use. Easy to install and fully compatible with the MOZA ecosystem, it enhances the realism and versatility of your flight simulation setup.

Features:
±20° Large Travel and Automatic Centering
* It can be used to simulate the yaw axis control of an aircraft, with a travel range of ±20°, meeting the needs of most aircraft models. It automatically returns to center after releasing force.

High-Precision Hall Sensor
* The rotating shaft uses a 16-bit high-precision Hall sensor for detection and control.
* Its excellent accuracy results in errors far below perceivable levels.
* The non-contact sensing design ensures stability and durability.

CNC Aluminum Alloy
* Made from sturdy and durable aluminum alloy, processed with CNC machining and anodized surface treatment, it presents a refined and premium metallic texture.

97mm Extension
* When used as an extension rod, it can extend by 97mm, creating a more realistic and professional driving experience.

Z-Axis Locking Function
* If the Z-axis function is not needed, you can lock the Z-axis. At this time, it serves only as an extension rod.

Easy Installation and User-Friendly
* First, install the Z-Axis Module onto your joystick, then attach the entire assembly to your wheel base.
* Simply tighten the nut after aligning the connector, with no extra tools needed, making it easy to use.

Compatible Design and Open Ecosystem
* Besides MOZA ecosystem joysticks and flight simulator base products, it is also compatible with some third-party brand joysticks.

Specifications:
* Dimensions: 110 × 47.5 × 47.5 mm
* Weight: 260 g
* Material: Aerospace-grade aluminum alloy
* Yaw Angle: ±20°
* Extension Length: 97 mm
* Angle Sensor Resolution: 15-bit (32,768 PPR)
* Self-Centering Function: Supported
* Locking Function: Supported
* Compatibility: Compatible with the MOZA ecosystem and some third-party products

Packing List:
* 1 x Z-Axis Module

Packaging Details:
* Weight: 0.4kg
