• MP21-10-2 Universal Wired Tool Setter Normally Close Engraving Machine Tool Setter CNC Processing Tool Set

MP21-10-2 Universal Wired Tool Setter Normally Close Engraving Machine Tool Setter CNC Processing Tool Set

Availability: In stock, usually dispatched in 1 business day

  • Price:$44.70
  • Price in reward points: 447 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $43.81 $42.91 $41.57 $39.78 Contact US
Quantity:

MP21-10-2 Universal Wired Tool Setter Normally Close Engraving Machine Tool Setter CNC Processing Tool Set

Specification:

- Product model: MP21-10-2

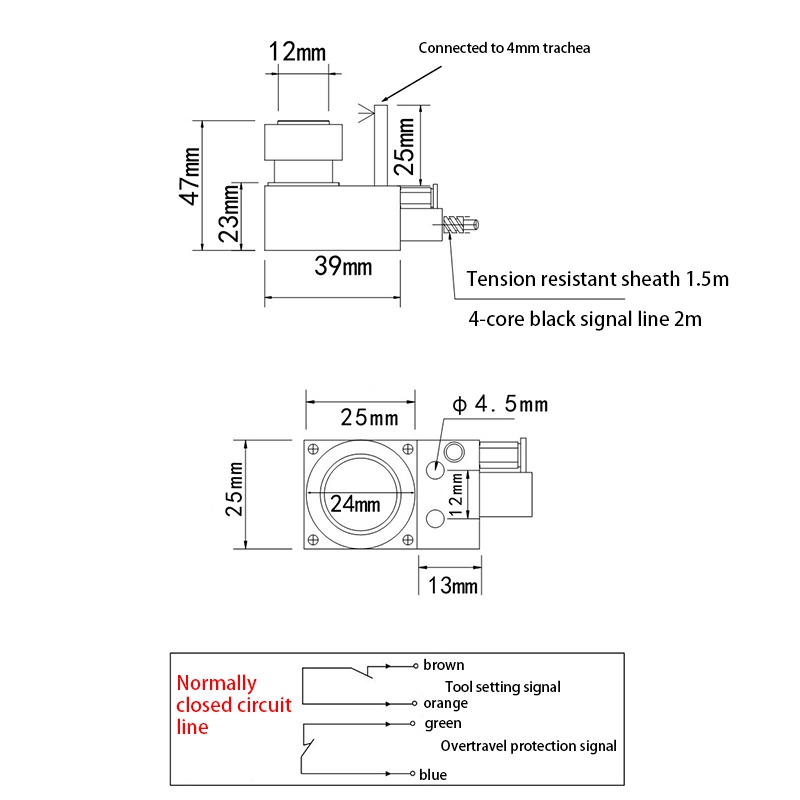

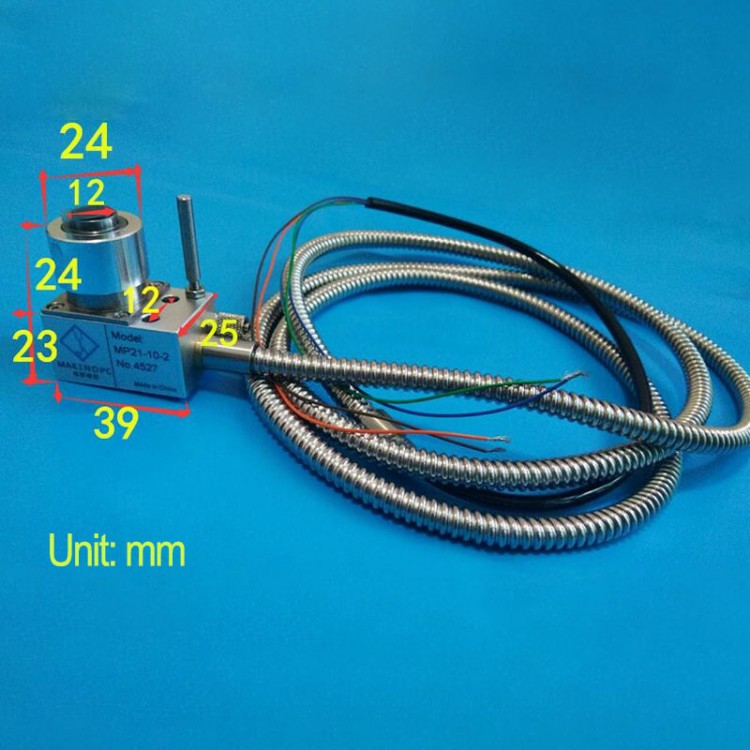

- Dimensions: 47 x 25 x 39mm
- Pre – stroke: Almost zero
- Stroke/Travel: 5mm
- Alarm over travel output mode: NC (Normally close)

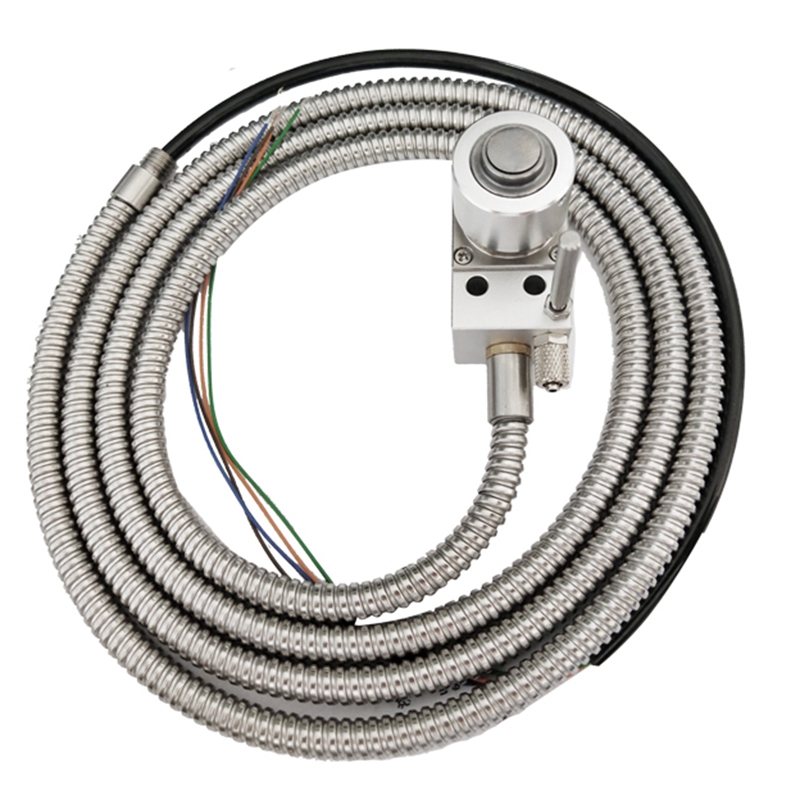

- Cable: 2M 4lamp pith; Tensile Strength 20N, the minimum bending radius R7
- Protecting tube: 1M (SS304), the minimum bending radius R25
- Air Blow equipment: Yes
- Output Mode: B: NC (Normally close)
- Positioning accuracy: 0.001mm (Operating Speed: 50-200mm/min)
- Service life: 3 million times
- Touch force: 1.5N
- Rated Voltage: DC24V 20mA (max) recommend (10mA) resistive load
- Protection class: IEC IP67
- Voltage range: 10-30V

Hose configuration method:
- Cut off the required hose length in the direction perpendicular to the axis. (The length shall be left with allowance)
- Thread the cap nut into the hose.
- The hose shall be threaded to the end of the threaded pipe. (The hose must be inserted in the innermost part to avoid air leakage and pipe slipping)
- Tighten the cap nut by hand.

Package Included:
- 1 x Tool setter
