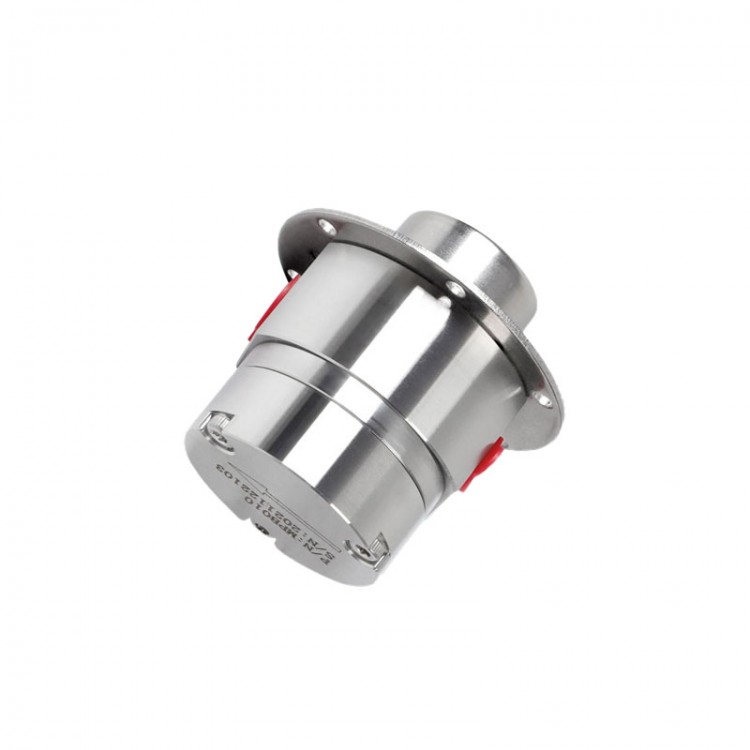

MPB010 1.0L Micro Magnetic Gear Pump – Stainless Steel, High Pressure, High-Precision Metering Pump

MPB010 1.0L Micro Magnetic Gear Pump – Stainless Steel, High Pressure, High-Precision Metering Pump

Features:
Mini Magnetic Gear Pump
* Mini magnetic gear pump: Acid- and alkali-resistant, leak-free, compact size.
* Pulsation-free, leak-free, precise delivery, and highly stable.
* Long lifespan, high precision, and high specifications.

Versatile Medium Handling
The pump can transport a wide range of media, including:
* Industrial oils: Lubricating oil, silicone oil, transformer oil, hydraulic oil, heat transfer oil.
* Fuel oils: Kerosene, diesel, gasoline, aviation kerosene.
* Food & beverages: Coffee, milk, soy milk, yogurt, essential oils, enzymes, low-viscosity syrups.
* Coolants: Ethylene glycol, silicone oil, electronic fluorinated liquids, water, antifreeze, Freon, propylene glycol.
* Others: Organic solvents, urea, inks, acetic acid, potassium peroxide, ethanol, hydrogen peroxide, seawater, etc.

Unique Chamber Contour Design
* The core design ensures highly efficient and stable operation across a wide range of pressures — including low-pressure, high-pressure, and sudden reverse pressure surges — making it reliably compatible with complex working conditions.

Innovative Gear Profile Design
* Specially developed gear contours provide excellent wear resistance. The near-pure rolling engagement design greatly reduces gear wear during operation.

O-Ring Sealing
* Magnetic drive and static O-ring sealing isolate the pump chamber from the external environment, achieving leak-free operation.

Wide Range of Applications
* Widely used across multiple industries, including refrigeration and cooling, intelligent boiler steam heat sources, sampling, dosing/filling, firefighting, new energy, and medical applications.

Compatible with Various Motors
* Supports brushed motors, brushless motors, stepper motors, servo motors, three-phase asynchronous motors (explosion-proof), and three-phase asynchronous motors (standard).

Precision Testing for Reliable Performance and Worry-Free Quality
Each pump undergoes seven mandatory tests before leaving the factory, including:
* Operational Stability: Noise and vibration level testing to ensure compliance with industrial environment standards.
* Durability: Wear resistance and pressure strength testing to verify long-term reliability.
* Performance Parameters: Measurement of flow output accuracy, pressure range, and energy efficiency to match design specifications.
* Safety and Compliance: Pressure limit testing to eliminate potential leakage risks.

Specifications:
* Pump Head Model: MPC010
* Nominal Flow: 1.0L
* Displacement: 0.28mL/rev
* Material: 316 Stainless Steel
* Drive Type: Magnetic

Packing List:
* 1 × Magnetic Gear Pump

Packaging Details:
* Weight: 0.3kg
