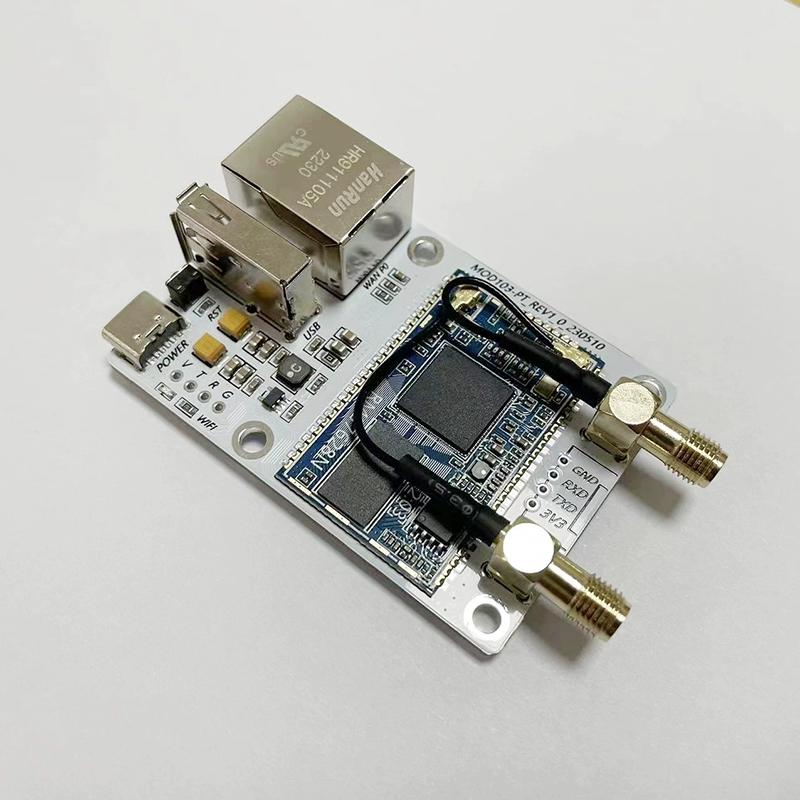

MR300C Industrial-level Image Transmission Module for USB UVC MJPG Camera Support WEB Viewer/VLC Player
Description:
- The MR300C image transmission module is implemented based on a MIPS processor, and the video stream can be viewed through the WiFi hotspot or network port of the computer/phone connection module.
- The USB 2.0 Host interface of the module can be connected to USB UVC cameras/endoscopes. The default output video format must be MJPG.
- The module supports access to cameras/endoscopes with a maximum resolution of 2-million pixels, 1920x1080p, and a frame rate of 30FPS.

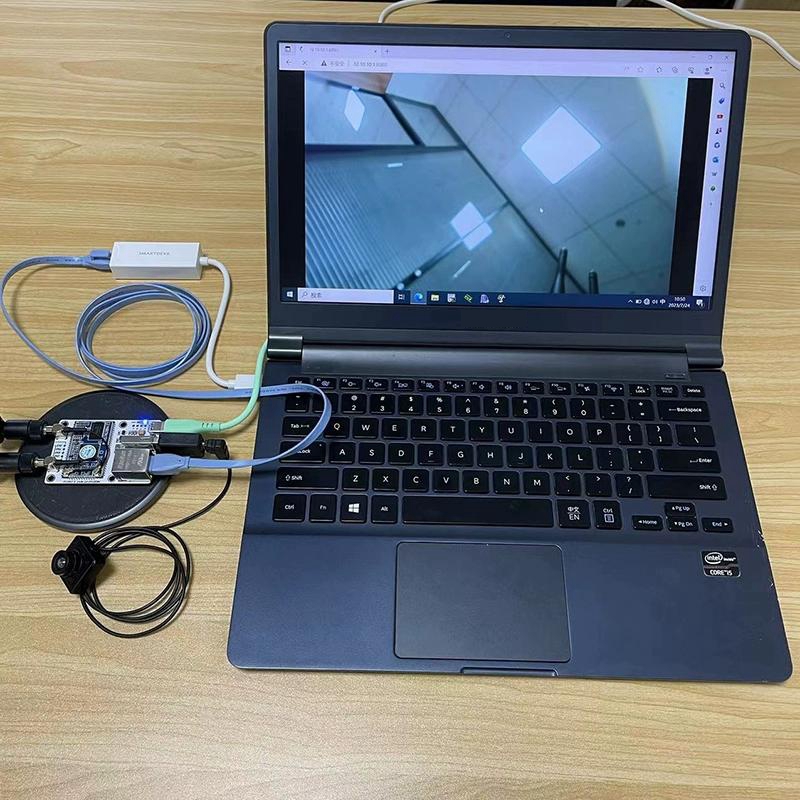

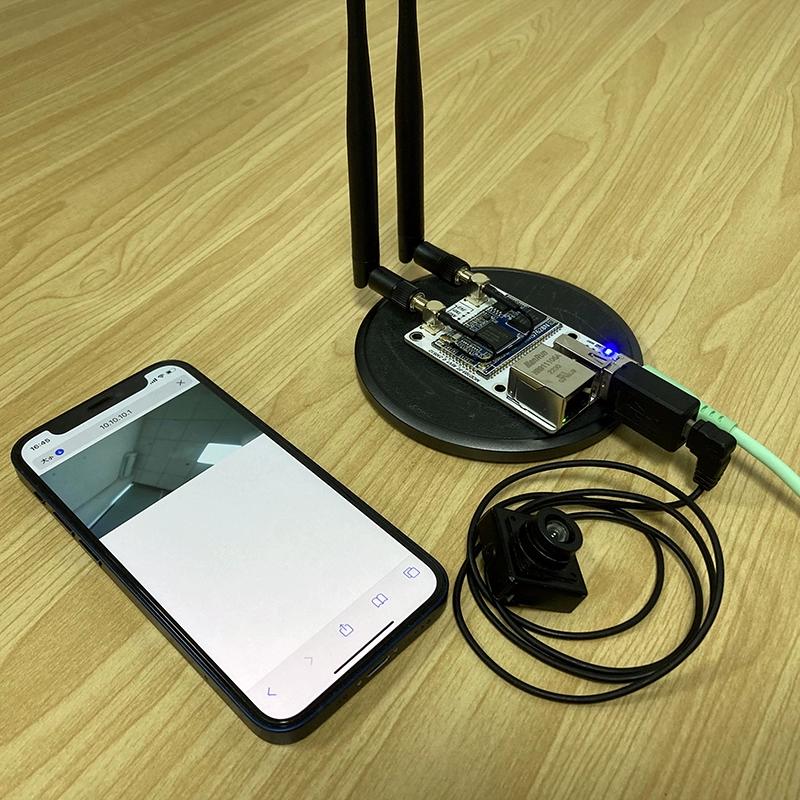

- Computers/phones can use web browsers or VLC media players to view video streams.
- The module uses the HTTP protocol to transmit video streams, and the client can develop a decoding library or APP program by themselves after obtaining the video stream through the HTTP protocol port.
- UART1 supports data transparent transmission with TCP client, with the module serving as TCP server 10.10.10.1:20140.
- Image transmission core module power consumption: average current of 0.3A under DC 5V power supply, maximum 1A.
- Application scenarios: industrial WiFi endoscopes, industrial WiFi cameras, speech production equipment, high angle cameras, auto repair, beauty equipment, etc.
Package Included:
- 1 x MR300C Module
Note:
- The USB Camera is no included.
- Please check whether it is compatible with you own USB camera before payment.
