MS-D1 QCC5125 BT5.1 Bluetooth DAC Receiver USB DAC Bluetooth Decoder for LDAC APTX-HD APTX-ll SBC

MS-D1 QCC5125 BT5.1 Bluetooth DAC Receiver USB DAC Bluetooth Decoder for LDAC APTX-HD APTX-ll SBC

Description:
The chip used in this decoder is the product of the glorious period of CD player. Its overall sound performance is full of simulated taste and rich in human voice emotion. It is also excellent in slow music performance. Its sound style is similar to that of TDA1541. This machine also has built-in imported power transformer (due to improper storage, there are scratches on the shell of the transformer. Please make sure that you don't mind before purchasing). In addition, it also uses digital and analog independent windings to supply power, and two-stage multi-channel independent voltage stabilization power supply design scheme. It adopts audiophile design and is cost-effective.

Audiophile components: Imported power transformer; Japanese power supply rectifier; electrolysis for ELNA and Panasonic; imported thin film capacitors for WIMA, EVOX and PHILIPS.

More Details:
- QCC5125 Bluetooth Module: The Bluetooth module supports a full range of Bluetooth formats and supports for APTX HD and LDAC lossless transmission. It meets the demanding requirements of most enthusiasts.
- Analog output: The analog output also adopts audiophile components, such as imported wafer resistors, film capacitors for PHILIPS and EVOX.
- Imported power transformer.
- Dual independent power supply: In order to reduce mutual interference, it adopts analog and digital power supply independent design scheme. Its rectifier components are produced in Japan.
- Multiple independent voltage regulation: This machine adopts multiple independent voltage regulation power supply.
- Power on and off protection line: It can prevent the "bang" sound generated during the power on and off process, making your system work more safely.

Technical Parameters:
- Signal inputs: Bluetooth, coaxial and USB
- Bluetooth format: for SBC/ACC/APTX/APTX-ll/APTX-HD/LDAC
- Output signal: 2VRMS
- Signal-to-noise ratio: ≥100DB at 1KHz
- Machine size: 115 x 140 x 50mm/4.5 x 5.5 x 2" (WxDxH) [including terminals]

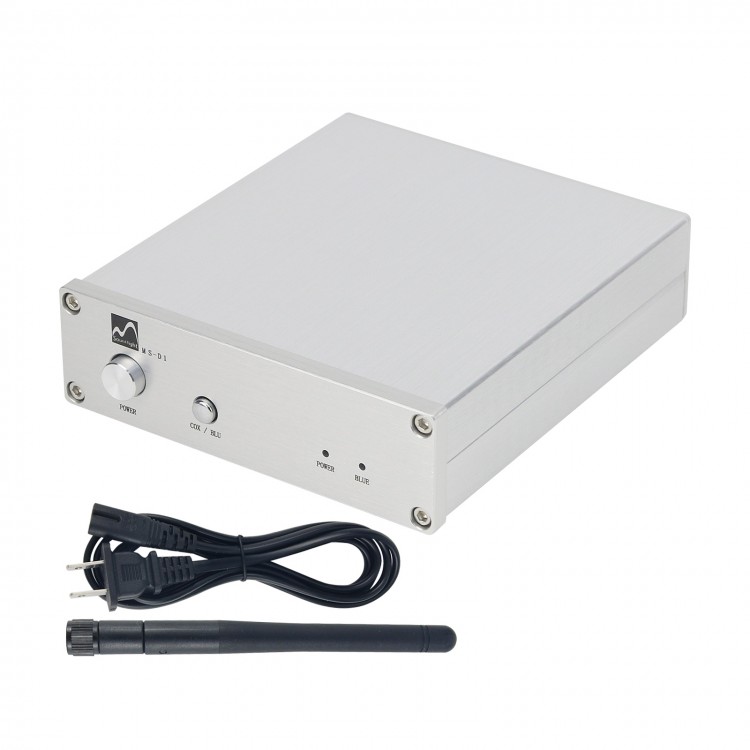

Package Included:
- 1 x Main unit
- 1 x Power cable
- 1 x Bluetooth antenna

Note:
- Pairing code of this machine is 6666.

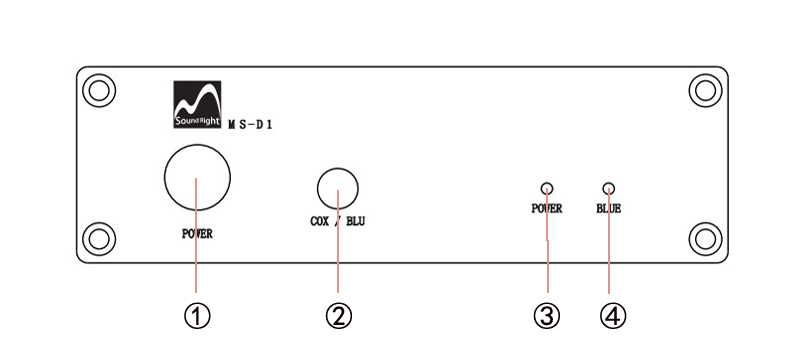

1. Power switch
2. Coaxial/Bluetooth switch (press it for Bluetooth state)
3. Power indicator
4. Bluetooth indicator (It will flash when Bluetooth is not connected. After Bluetooth connection, the indicator will stay on)

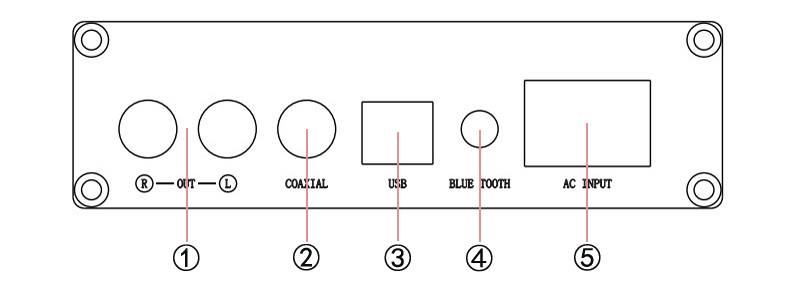

1. RCA analog output (connect to active speaker and amplifier)
2. Digital coaxial input
3. Computer USB input
4. Bluetooth antenna
5. AC power input (Customization service is needed for 110V, please contact us. Extra cost is required)
