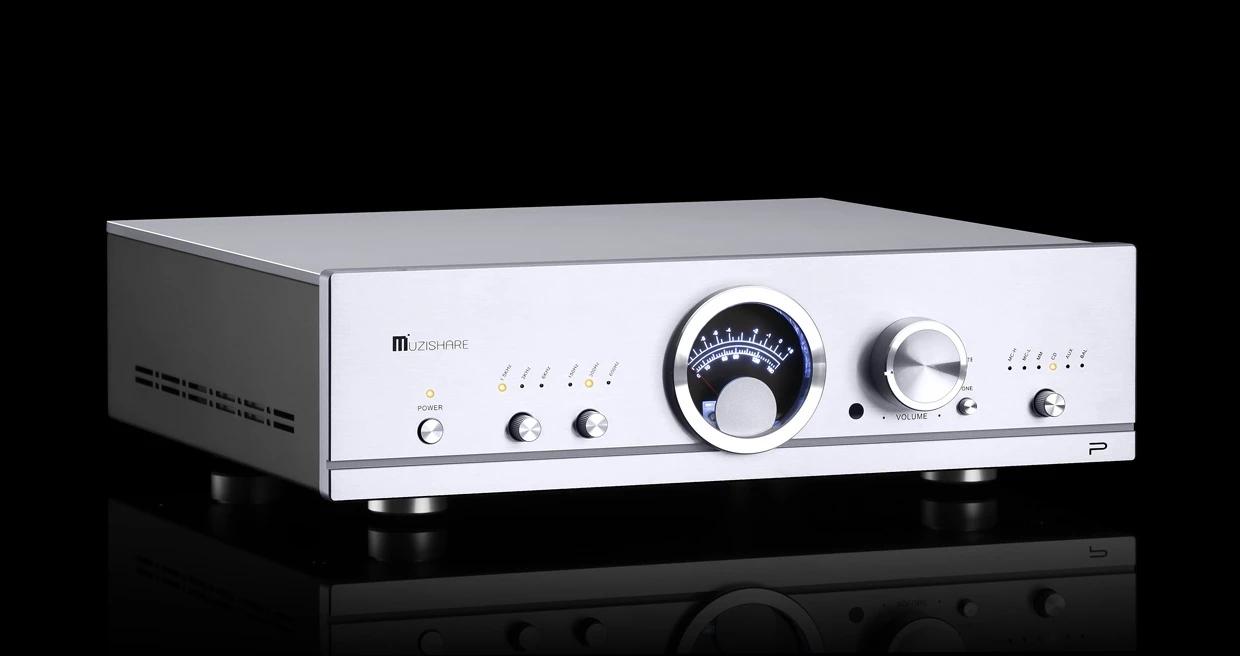

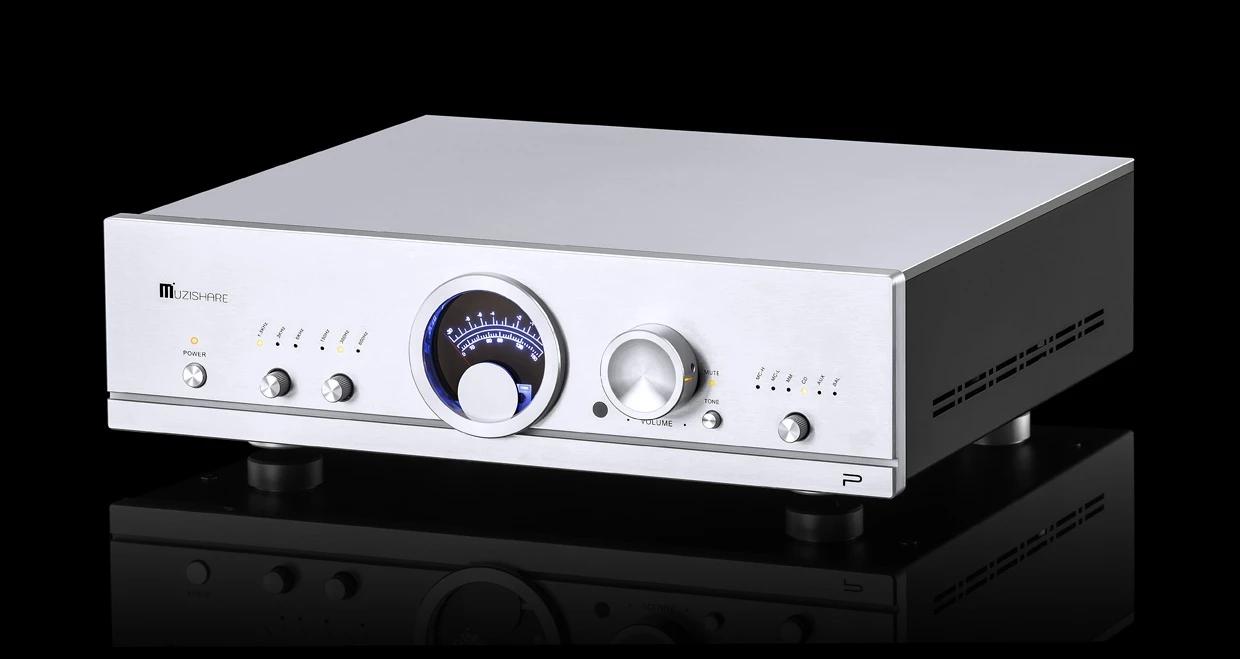

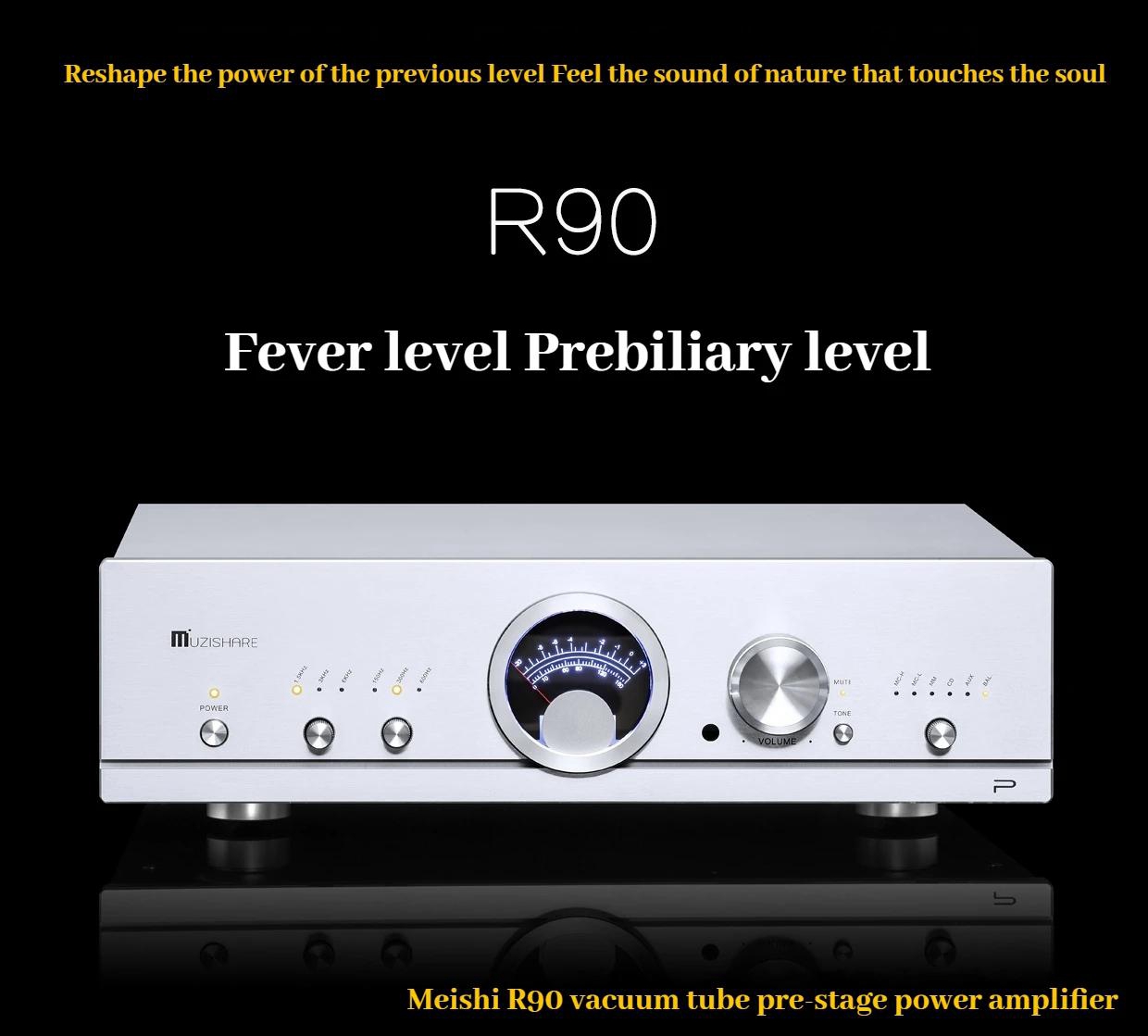

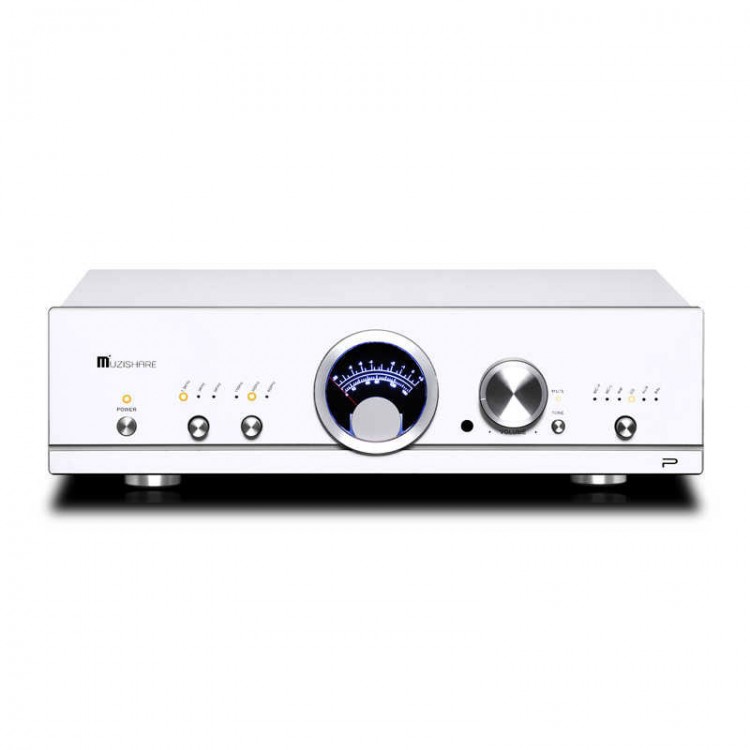

MUZISHARE R90 Electronic Tube Preamplifier HiFi Power Amplifier with VU Meter Support Frequency Adjustment

MUZISHARE R90 Electronic Tube Preamplifier HiFi Power Amplifier with VU Meter Support Frequency Adjustment

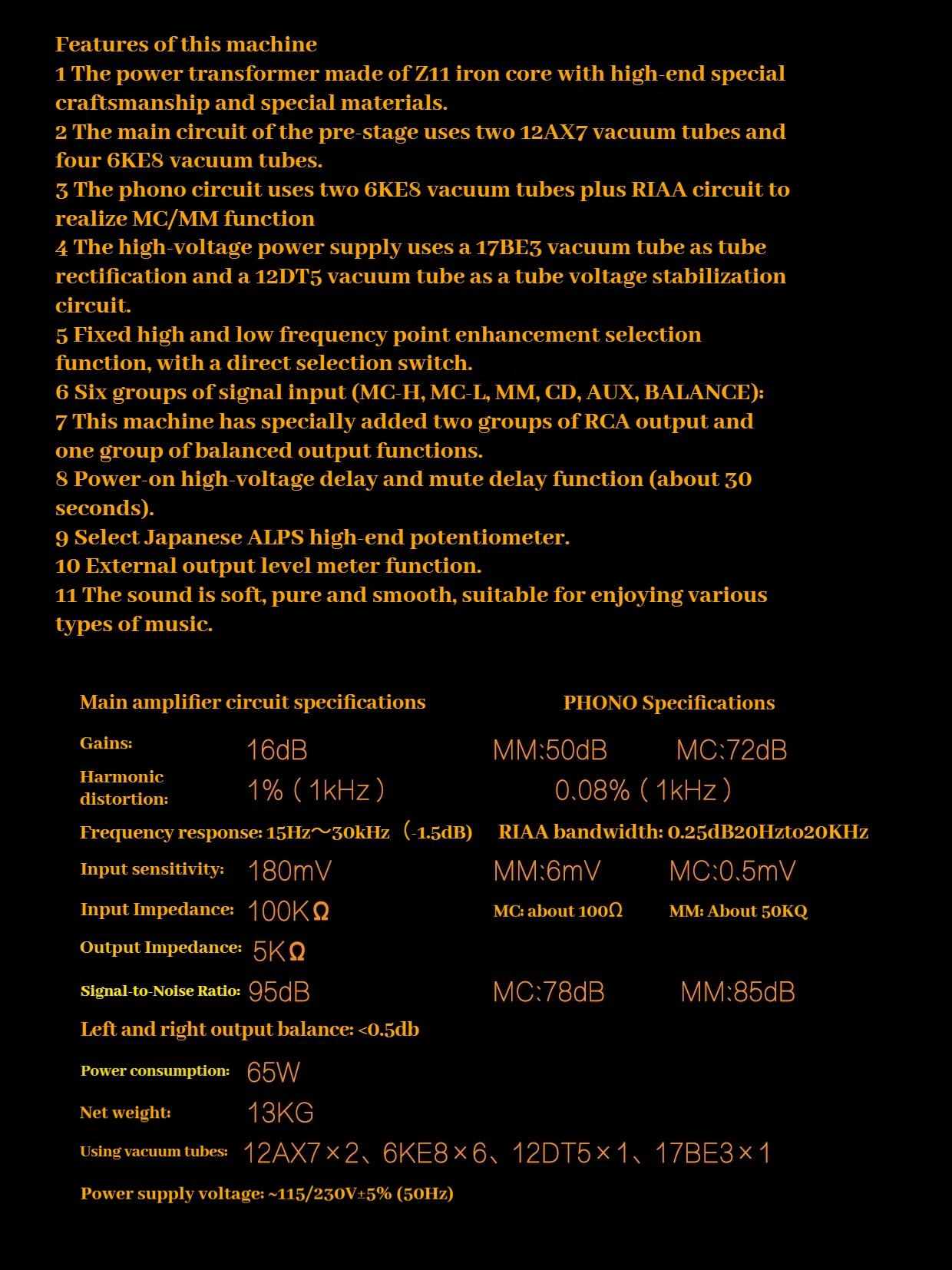

Features:
- A power supply transformer made of Z11 iron core with high-end special technology and special material fusion.

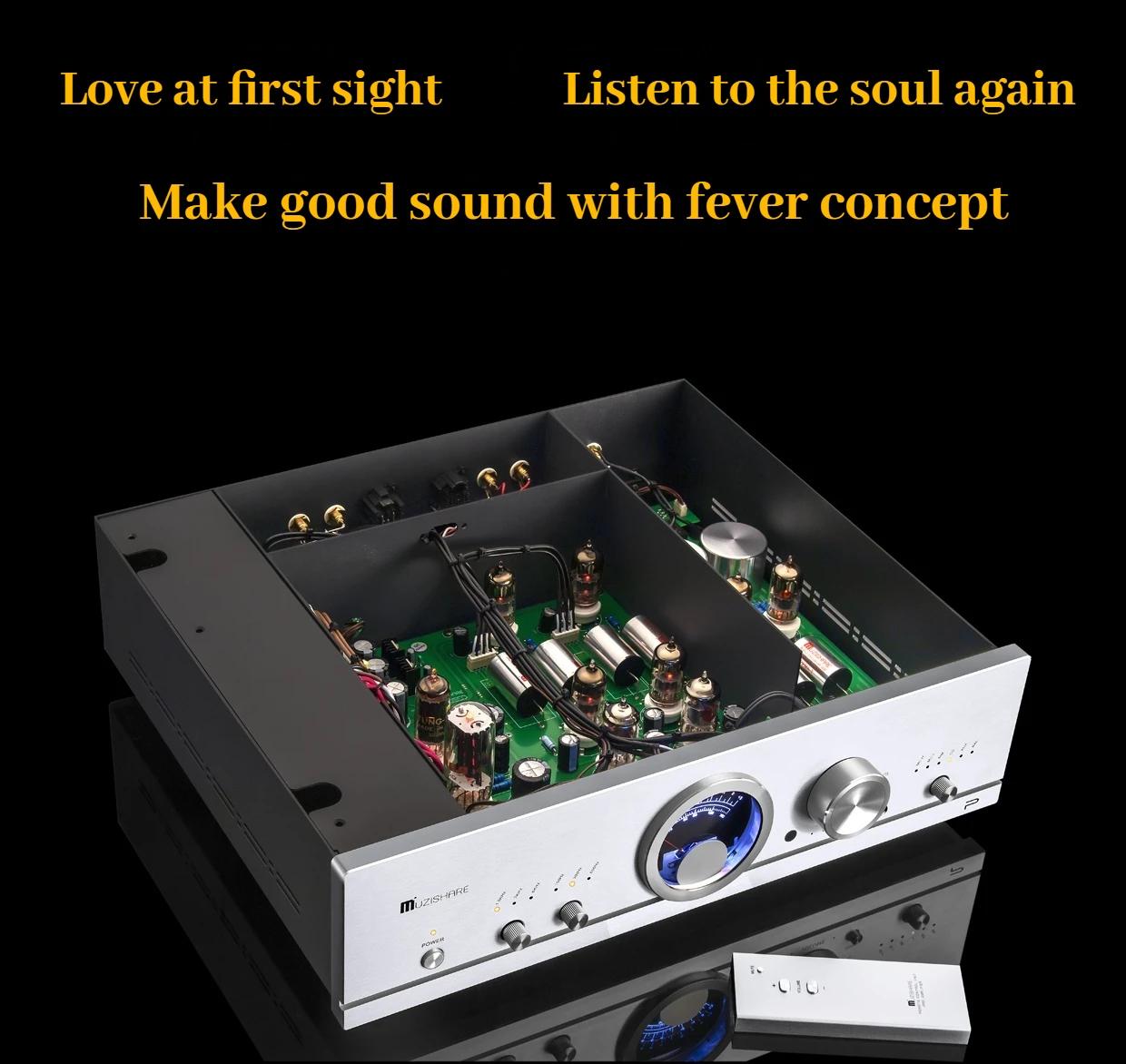

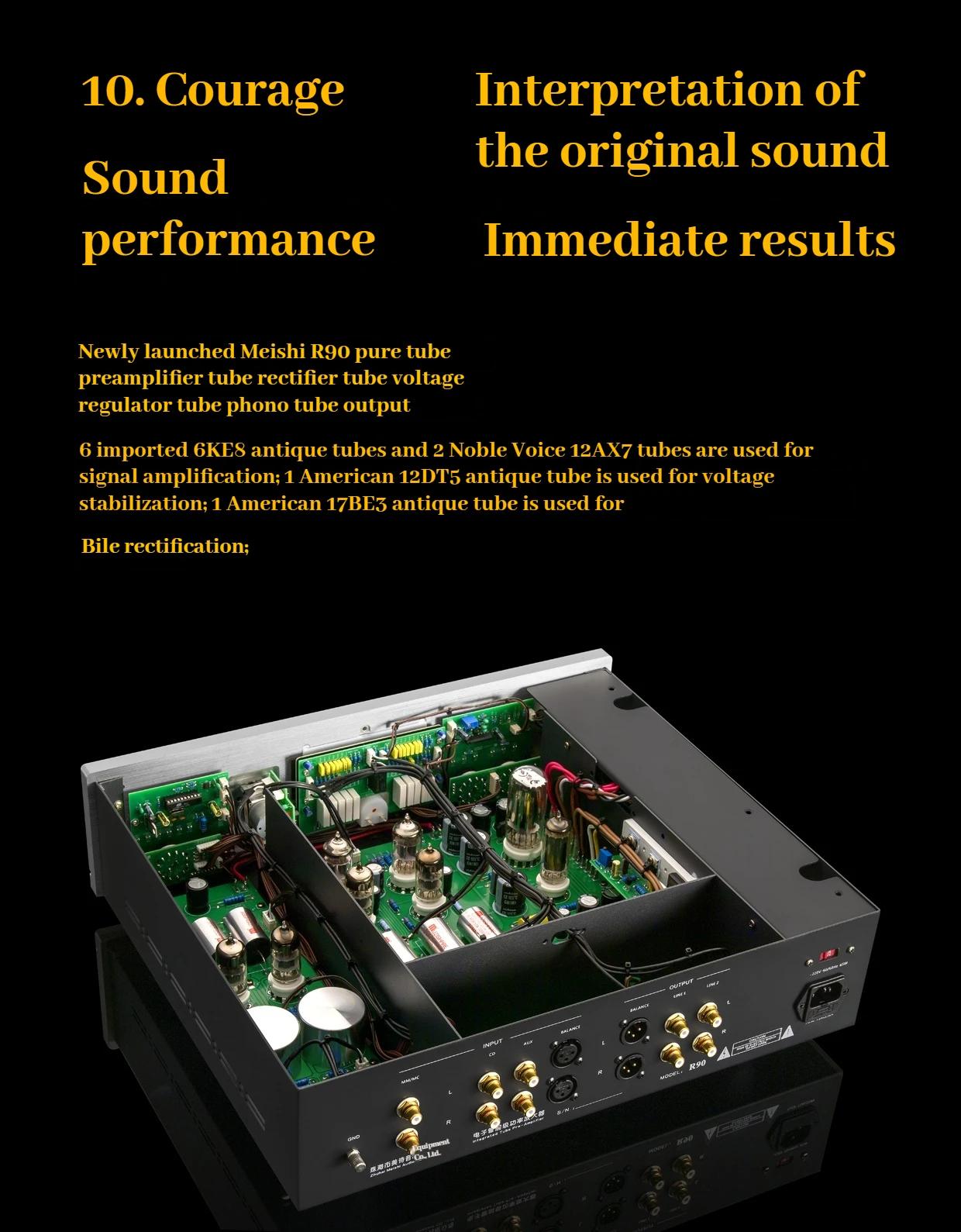

- The front-end main circuit uses two 12AX7 vacuum tubes and four 6KE8 vacuum tubes.
- The PHONO circuit uses two 6KE8 vacuum tubes and a RIAA circuit to achieve MC/MM functionality.
- High voltage power supply uses a 17BE3 vacuum tube as the rectifier and a 12DT5 vacuum tube as the voltage regulator circuit.

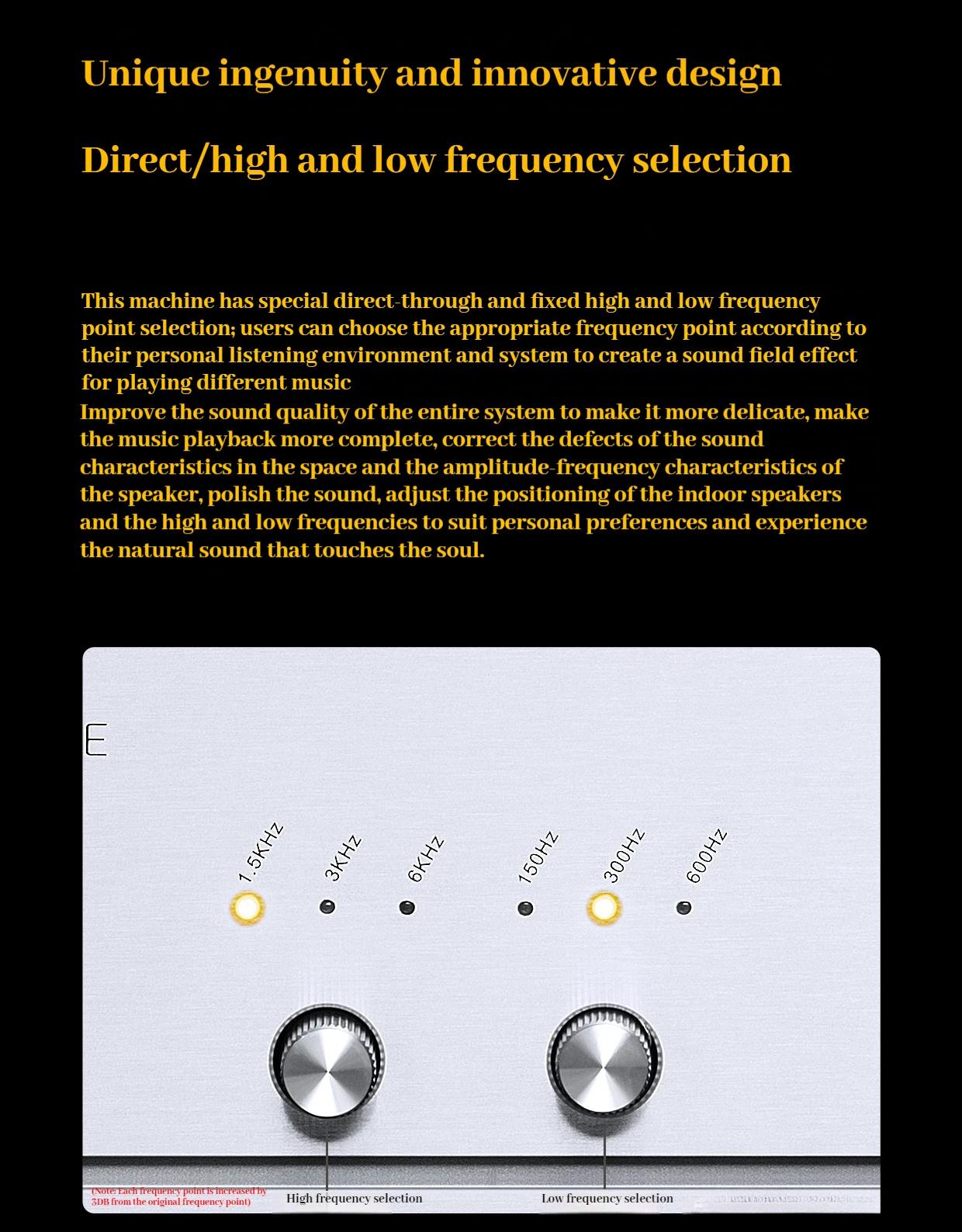

- Fixed high and low frequency point enhancement selection function, with added direct selection switch.

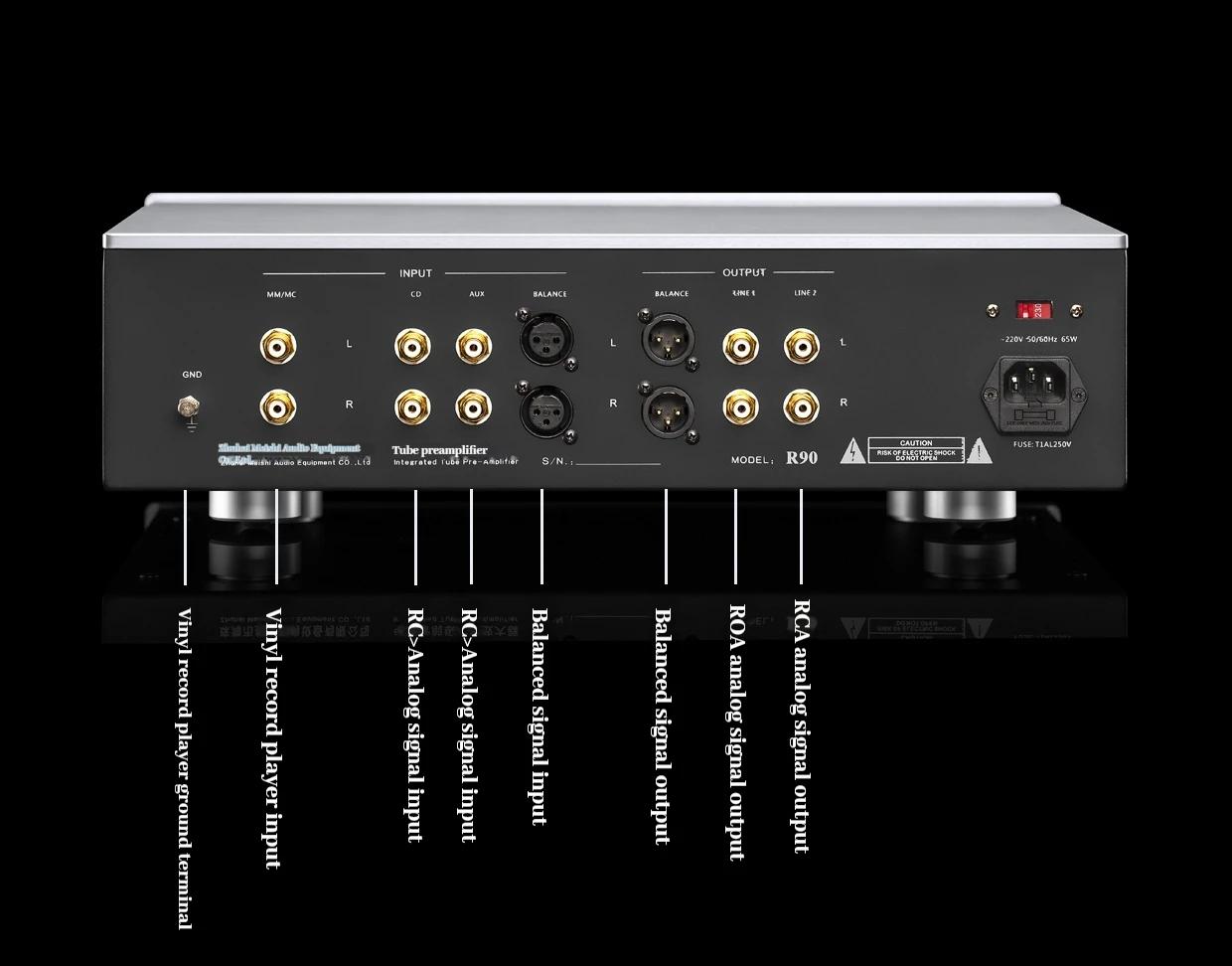

- Six sets of signal inputs (MC-H, MC-L, MM, CD, AUX, BALANCE).
- This machine has specially added two sets of RCA outputs and one set of balanced output functions.
- Power on high voltage delay and mute delay function (approximately 30 seconds).

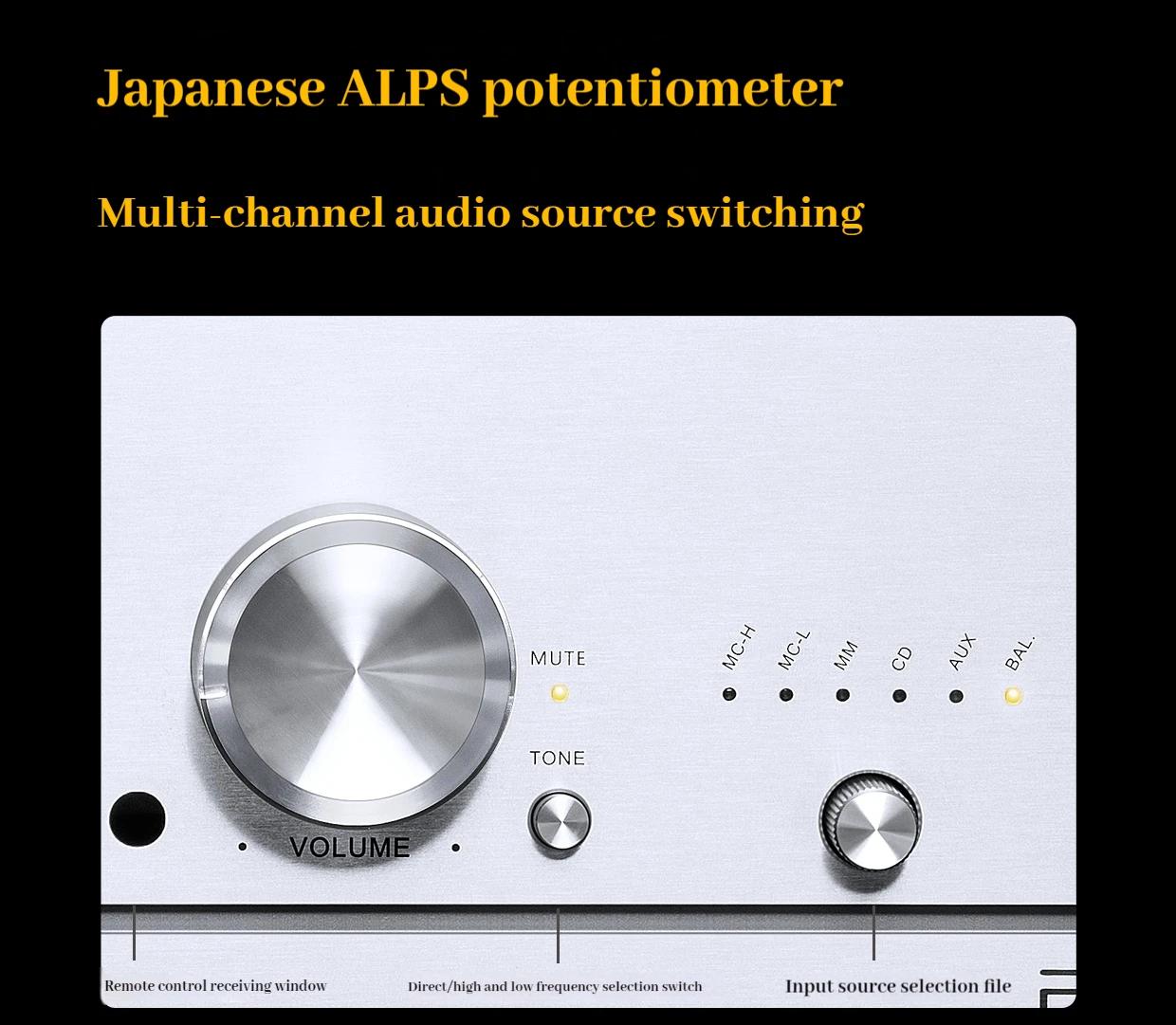

- Adopting for ALPS high-end potentiometer.

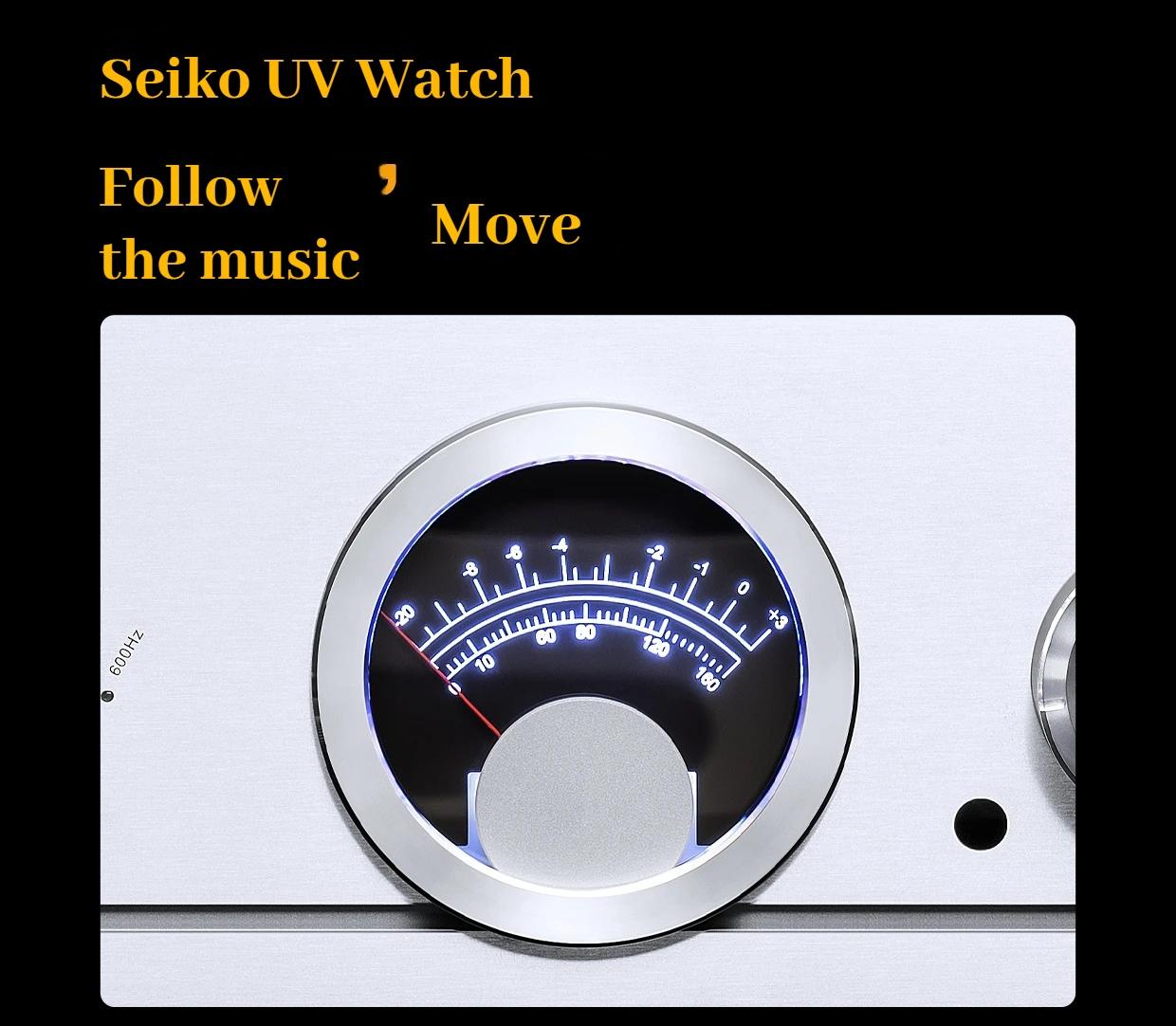

- Peripheral output level indicator function.
- The sound is soft, pure, and smooth, suitable for appreciating various types of music.

Specification:
General:
- Left and right output balance degree: < 0.5dB
- Power consumption: 65W
- Vacuum tubes: 12AX7x2, 6KE8x6, 12DT5x1, 17BE3x1
- Power supply voltage: 115V/230V±5% (50Hz)

Main Amplification Circuit:
- Gain: 16dB
- THD: 1% (1kHz)
- Frequency response: 15Hz - 30kHz (-1.5dB)
- Input sensitivity: 180mV
- Input impedance: 100Kohms
- Output impedance: 5Kohms
- SNR: 95dB

PHONO:
- Gain: 50dB for MM; 72dB for MC
- THD: 0.08% (1kHz)
- Frequency response: RIAA frequency width: 0.25dB, 20Hz to 20kHz
- Input sensitivity: 6mV for MM; 0.5mV for MC
- Input impedance: about 100ohms for MC; about 50Kohms for MM
- SNR: 78dB for MC; 85dB for MM

Package Included:
- 1 x Electronic Tube Amplifier
